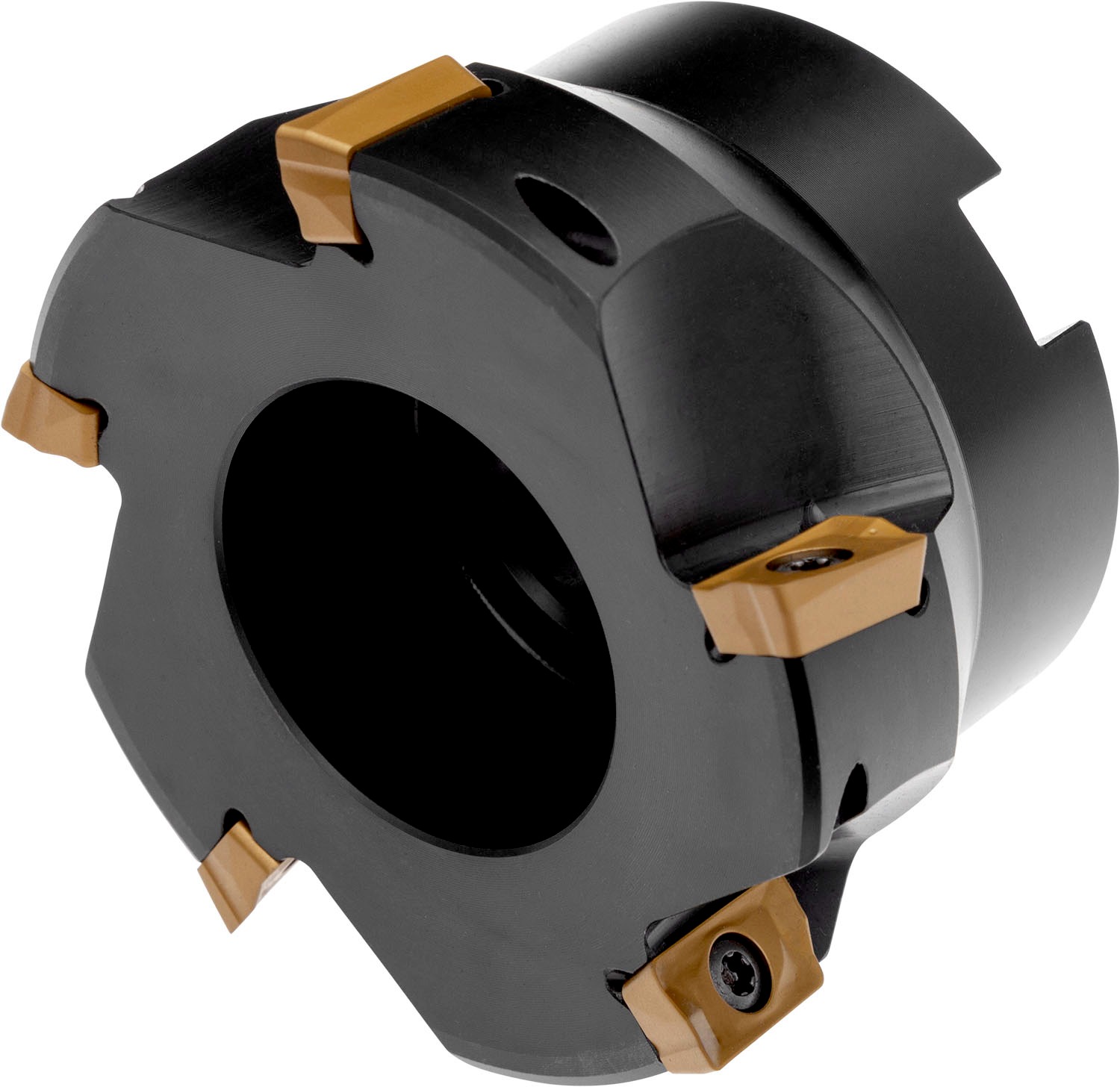

PRAMET 125B9R-S90AP16D Milling cutters with clamping by screw

Product Code: 125B9R-S90AP16D

$1,773.15$1,611.95 Ex. GST

Product Code: 125B9R-S90AP16D SKU 125B9R-S90AP16D Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 9 of APKT 1604.. or APET 1604.. single-sided inserts, cutting diameter 125mm with 90° approach angle and 40mm connection bore according to DIN 8030-B, 63mm protrusion length and differential pitch for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0mm

Additional information

Weight 1.7215 kg
Dimensions Length 6.3cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 3603602923974
Product number (SAP): 84001488
Ordering code ANSI: 125B9R-S90AP16D
Gross weight – grams: 3060.3
Cutting diameter – millimeter (DC): 125 mm
Overall length – millimeter (OAL): 63 mm
Connection diameter – millimeter (DCON MS): 40 mm
Counterbore diameter connection bore – millimeter (DCCB): 56 mm
Functional length – millimeter (LF): 63 mm
Keyway width – millimeter (KWW): 16.4 mm
Keyway depth – millimeter (KWD): 9 mm
Radial rake angle (GAMF): 0
Axial rake angle (GAMP): 6
Peripheral effective cutting edge count (ZEFP): 9
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 7500
Net weight – grams: 2800
Cutter Design: SAP16D
Insert index count (NOI): 9
ISO: 125B9R-S90AP16D

Brand

PRAMET
