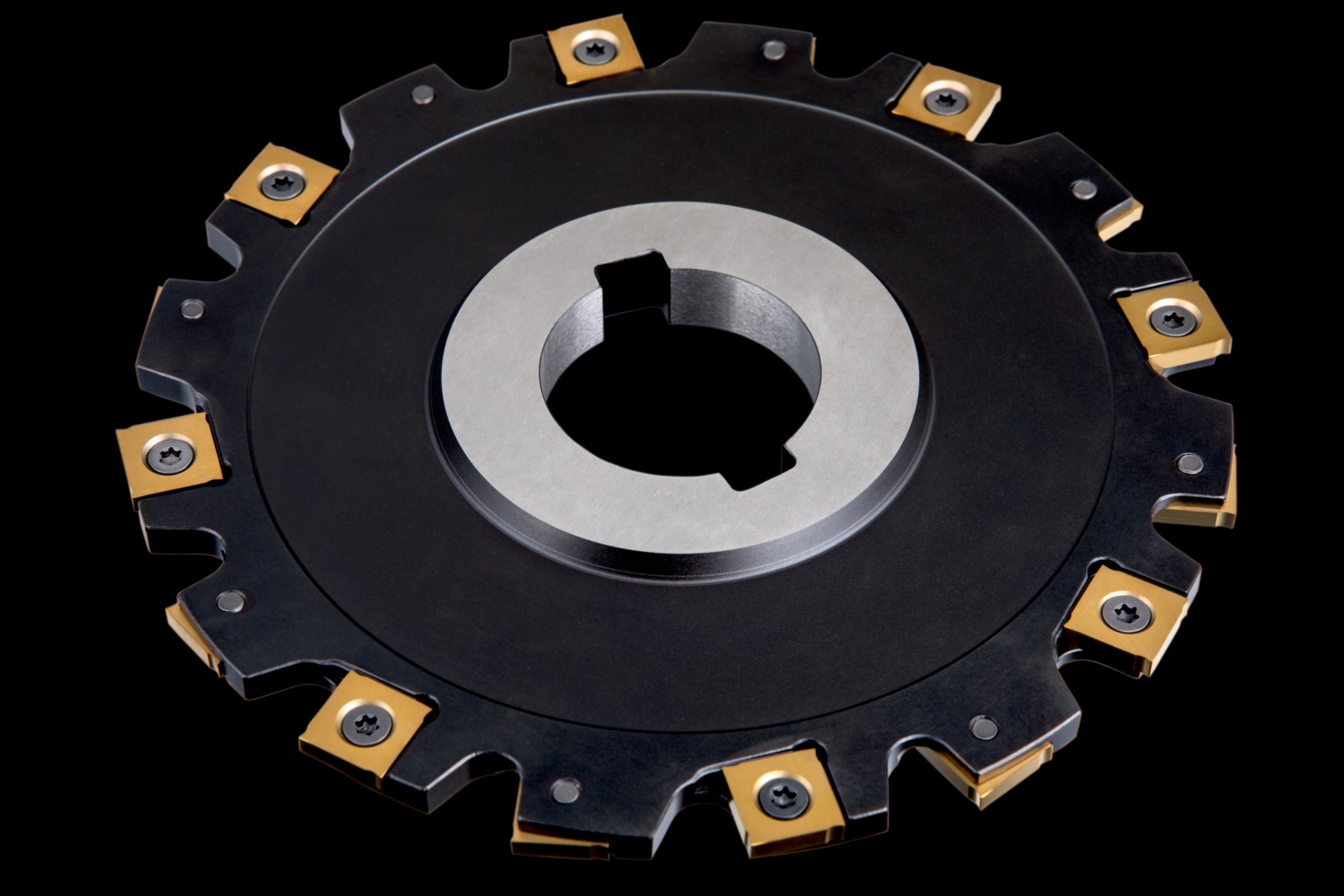

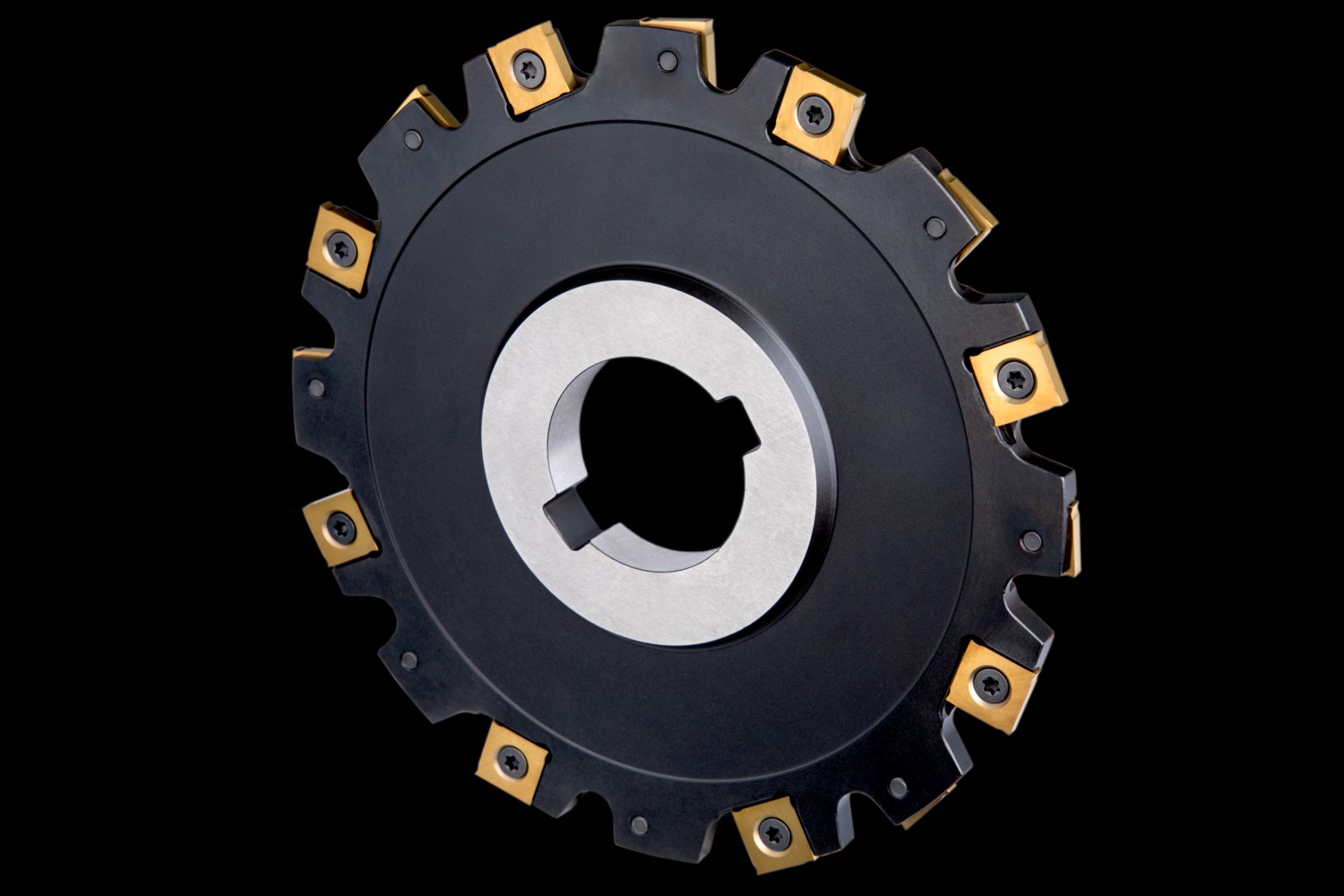

PRAMET 125H12N-S90SN12N12 Milling cutters with clamping by screw

Description: Value
EAN number: 3603602937988
Product number (SAP): 84005160
Ordering code ANSI: 125H12N-S90SN12N12
Gross weight – grams: 760
Milling range CW – Global: 4.0 – 14.0 mm

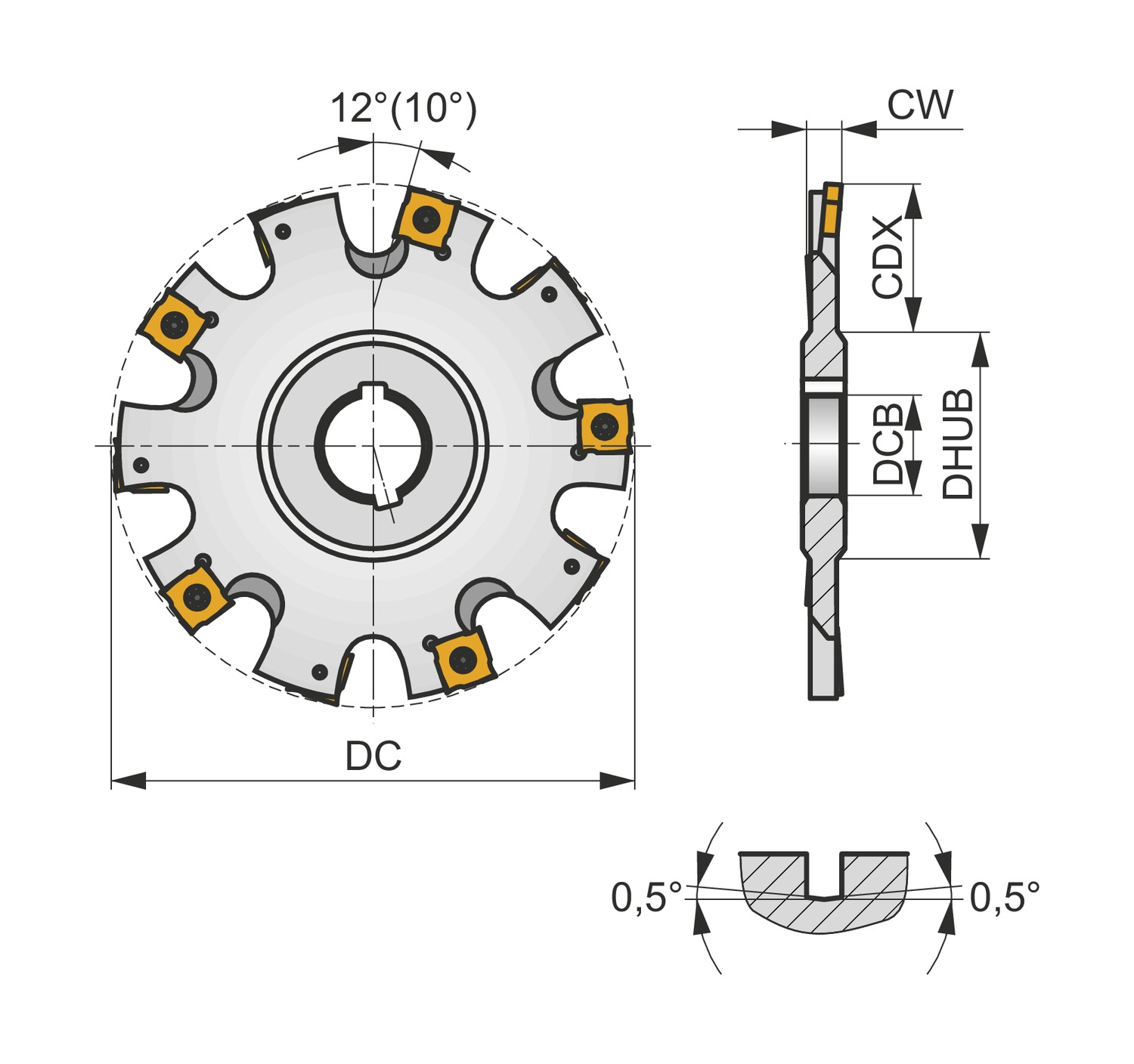

Cutting diameter – millimeter (DC): 125 mm
Connection bore diameter – millimeter (DCB): 40 mm
Hub diameter – millimeter (DHUB): 58 mm
Cutting depth maximum – millimeter (CDX): 31 mm
Cutting width – millimeter (CW): 12 mm

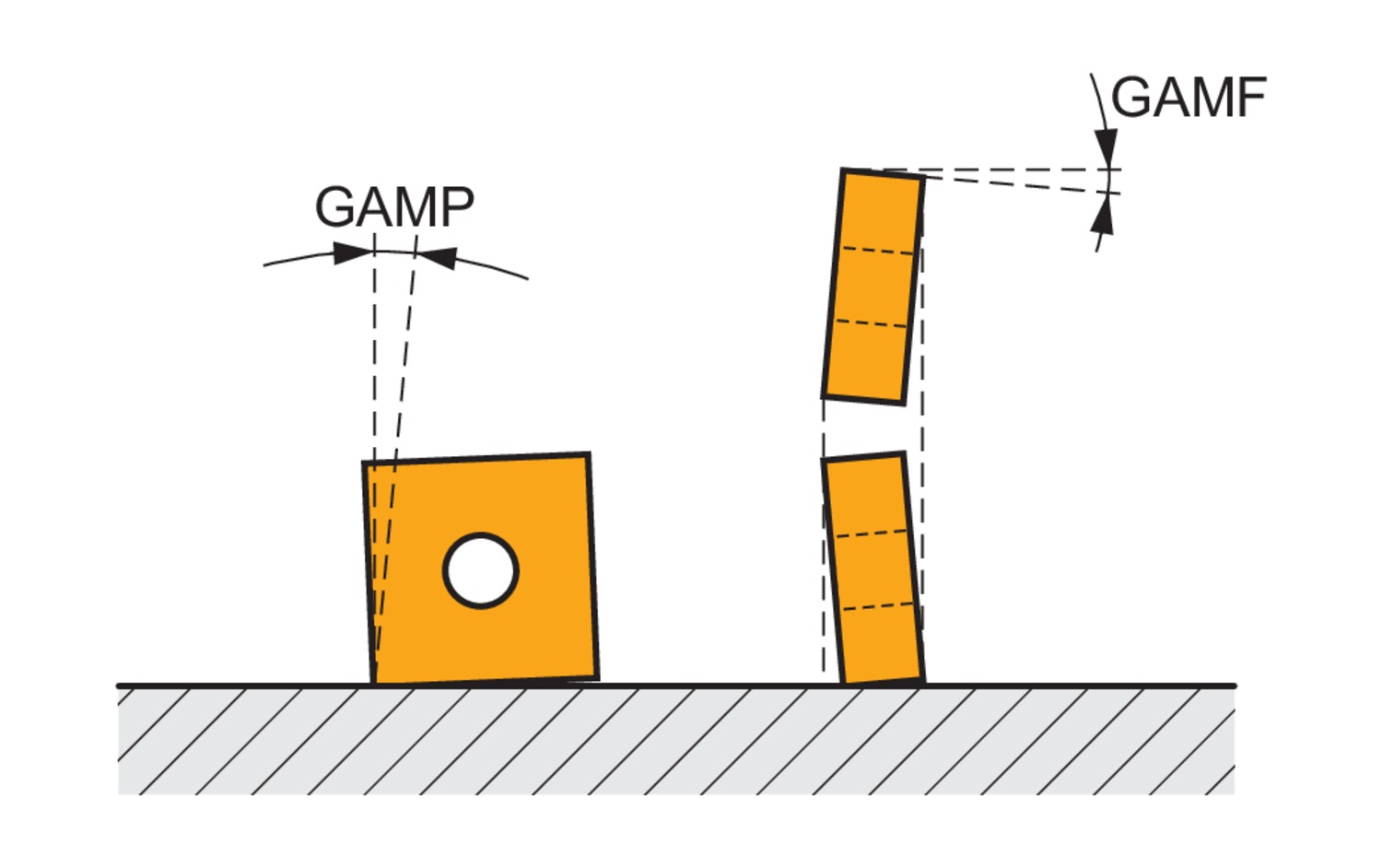

Radial rake angle (GAMF): 2.5
Axial rake angle (GAMP): -0.5
Peripheral effective cutting edge count (ZEFP): 12
Rotational speed maximum (RPMX): 6700
Net weight – grams: 760
Cutter Design: S90SN
Insert index count (NOI): 12
ISO: 125H12N-S90SN12N12
