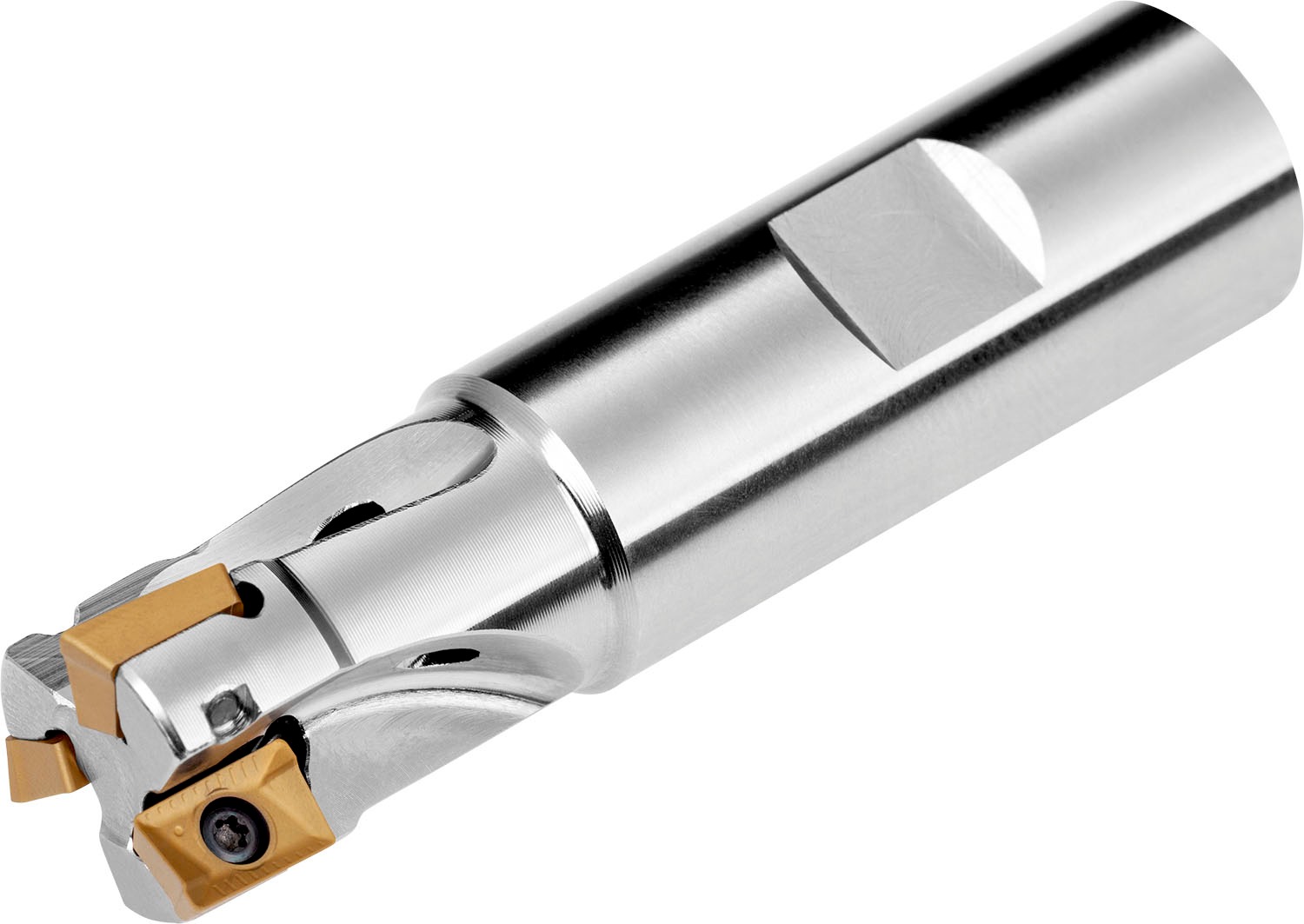

PRAMET 12A1R027B16-SAP10D-C Milling cutters with clamping by screw

Product Code: 12A1R027B16-SAP10D-C

$390.89$355.35 Ex. GST

Product Code: 12A1R027B16-SAP10D-C SKU 12A1R027B16-SAP10D-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with double positive geometry which utilises 1 of APKT 1003.. single-sided insert, cutting diameter 12mm with 90° approach angle and 16mm Weldon shank according to DIN 1835B, 75mm overall length, through coolant for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0mm

Additional information

Weight 0.3795 kg
Dimensions Length 7.5cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 3603602937087
Product number (SAP): 84004798
Ordering code ANSI: 12A1R027B16-SAP10D-C
Gross weight – grams: 160
Cutting diameter – millimeter (DC): 12 mm
Overall length – millimeter (OAL): 75 mm
Connection diameter – millimeter (DCON MS): 16 mm
Usable Length – millimeter (LU): 27 mm
Radial rake angle (GAMF): 12
Axial rake angle (GAMP): 2
Peripheral effective cutting edge count (ZEFP): 1
Rotational speed maximum (RPMX): 35600
Net weight – grams: 97
Cutter Design: SAP10D
Insert index count (NOI): 1
ISO: 12A1R027B16-SAP10D-C

Brand

PRAMET
