PRAMET 12A2R020A10-SCN05C-C Milling cutters for D&M

Product Code: 12A2R020A10-SCN05C-C

$433.94$394.49 Ex. GST

Product Code: 12A2R020A10-SCN05C-C SKU 12A2R020A10-SCN05C-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

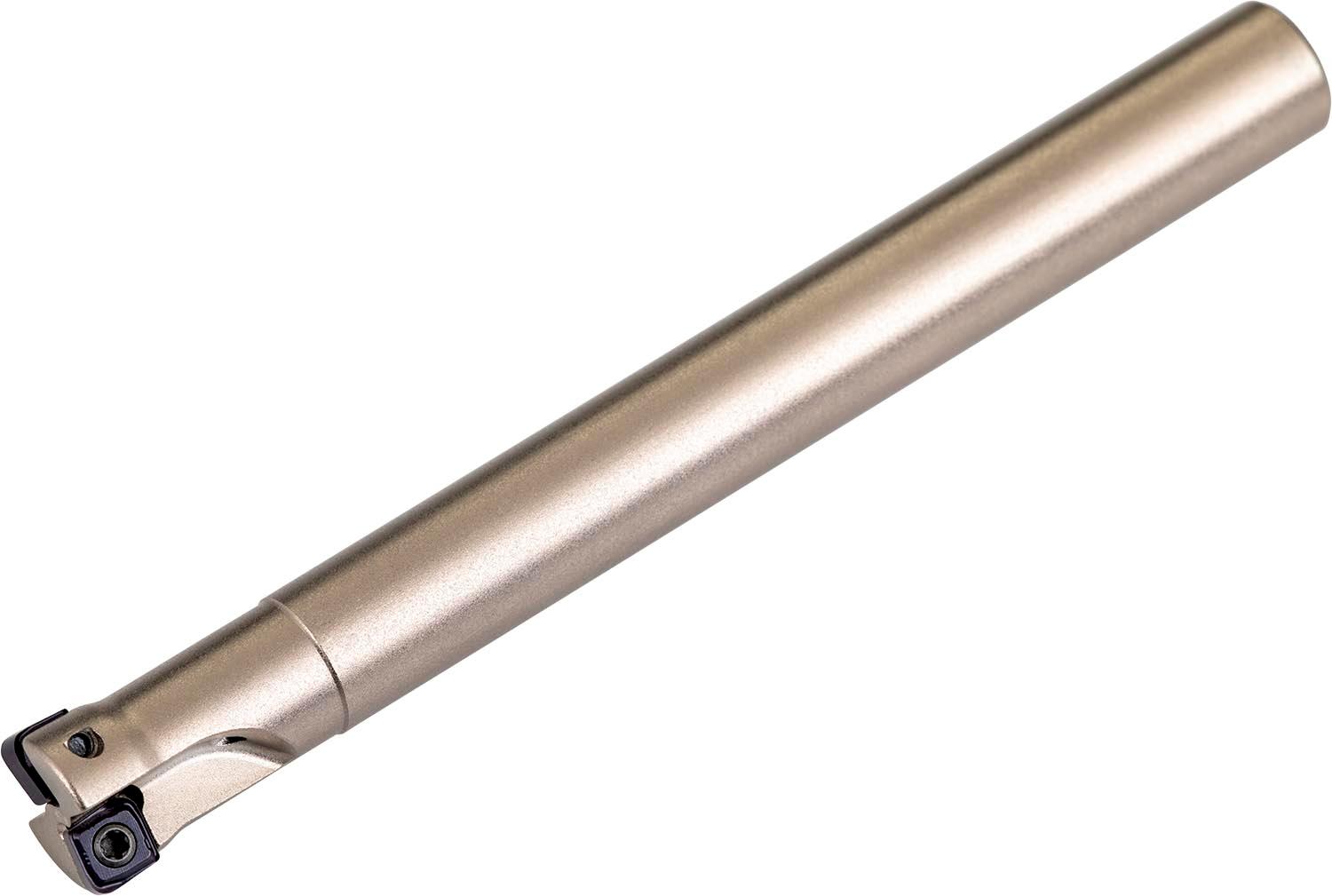

Copy face mill with double negative geometry which utilises 2 of CNHX 0502.. double-sided inserts, cutting diameter 12mm with 93° approach angle and 10mm parallel shank according to DIN 1835A, 20mm functional and 100mm overall length, through coolant for face milling, copy milling, shallow shoulder milling, deep shoulder milling, ramping and plunge milling with a maximum depth of cut of 0.5mm

Additional information

Weight 0.4213 kg
Dimensions Length 10cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 3603603536029
Product number (SAP): 86034297
Ordering code ANSI: 12A2R020A10-SCN05C-C
Gross weight – grams: 75.7
Cutting diameter – millimeter (DC): 12 mm
Overall length – millimeter (OAL): 100 mm
Connection diameter – millimeter (DCON MS): 10 mm
Usable Length – millimeter (LU): 20 mm
Radial rake angle (GAMF): -15
Axial rake angle (GAMP): -8
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 48700
Net weight – grams: 75.7
Cutter Design: SCN05C
Insert index count (NOI): 2
ISO: 12A2R020A10-SCN05C-C

Brand

PRAMET
