PRAMET 12A2R020M06-SAD07D-C Milling cutters with clamping by screw

Product Code: 12A2R020M06-SAD07D-C

$385.22$350.20 Ex. GST

Product Code: 12A2R020M06-SAD07D-C SKU 12A2R020M06-SAD07D-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

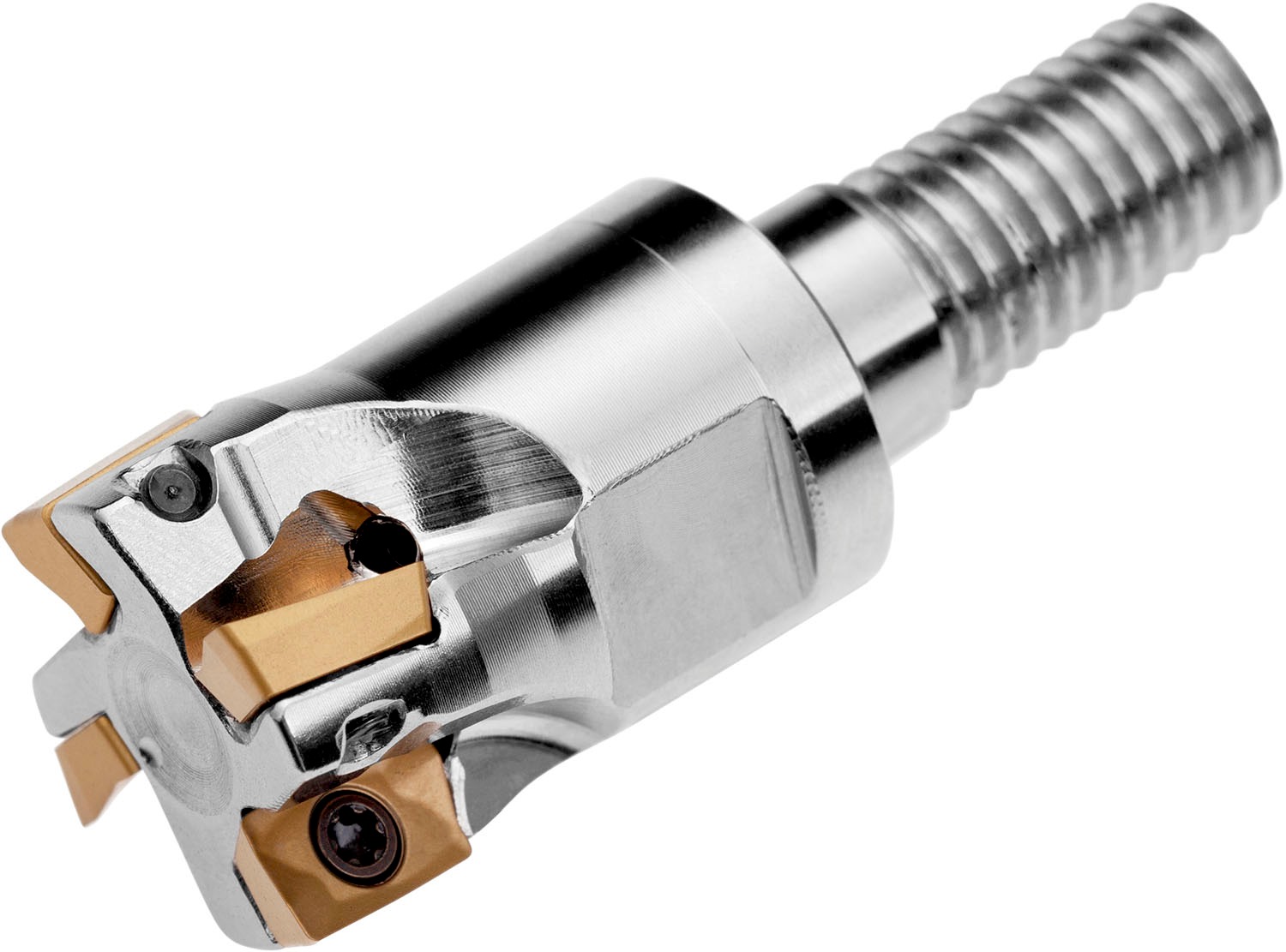

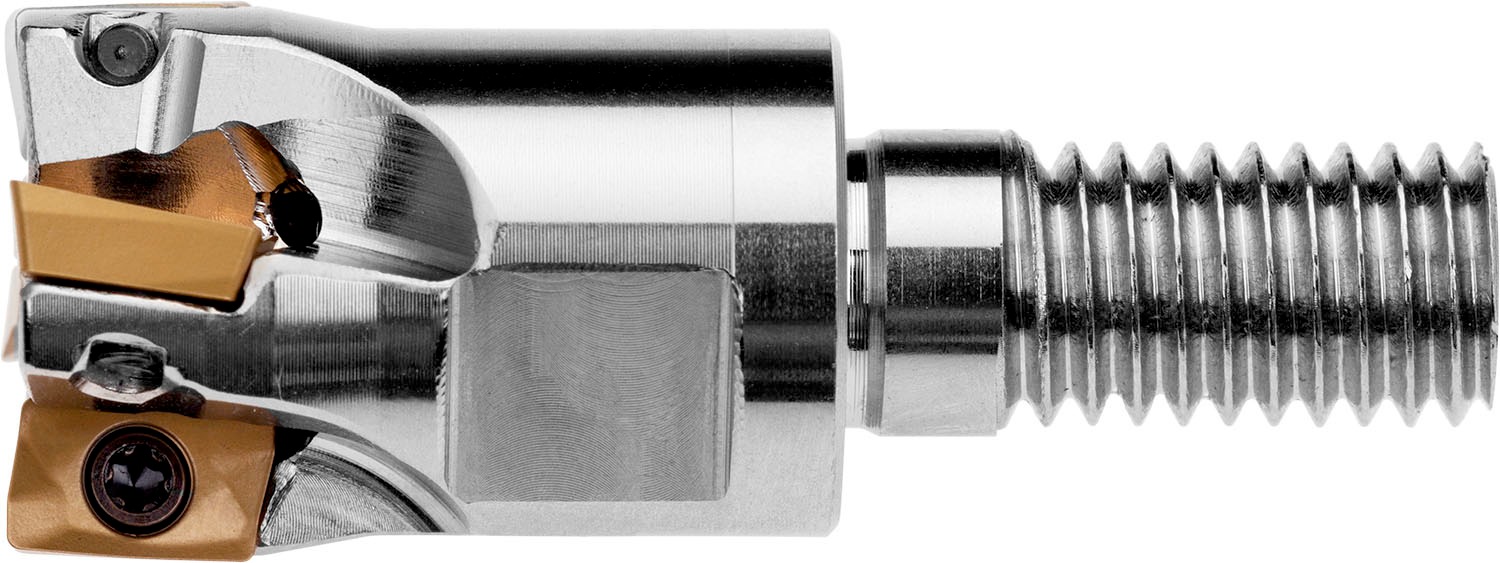

Shoulder mill with positve/negative geometry which utilises 2 of ADMX 0702.. or ADEX 0702.. single-sided inserts, cutting diameter 12mm with 90° approach angle and M6 threaded shank for standard modular tool-holders, 20mm protrusion length, through coolant for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 5.0mm

Additional information

Weight 0.374 kg
Dimensions Length 3.5cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 3603603078024
Product number (SAP): 86025920
Ordering code ANSI: 12A2R020M06-SAD07D-C
Product Line: FORCE AD
Gross weight – grams: 35.6

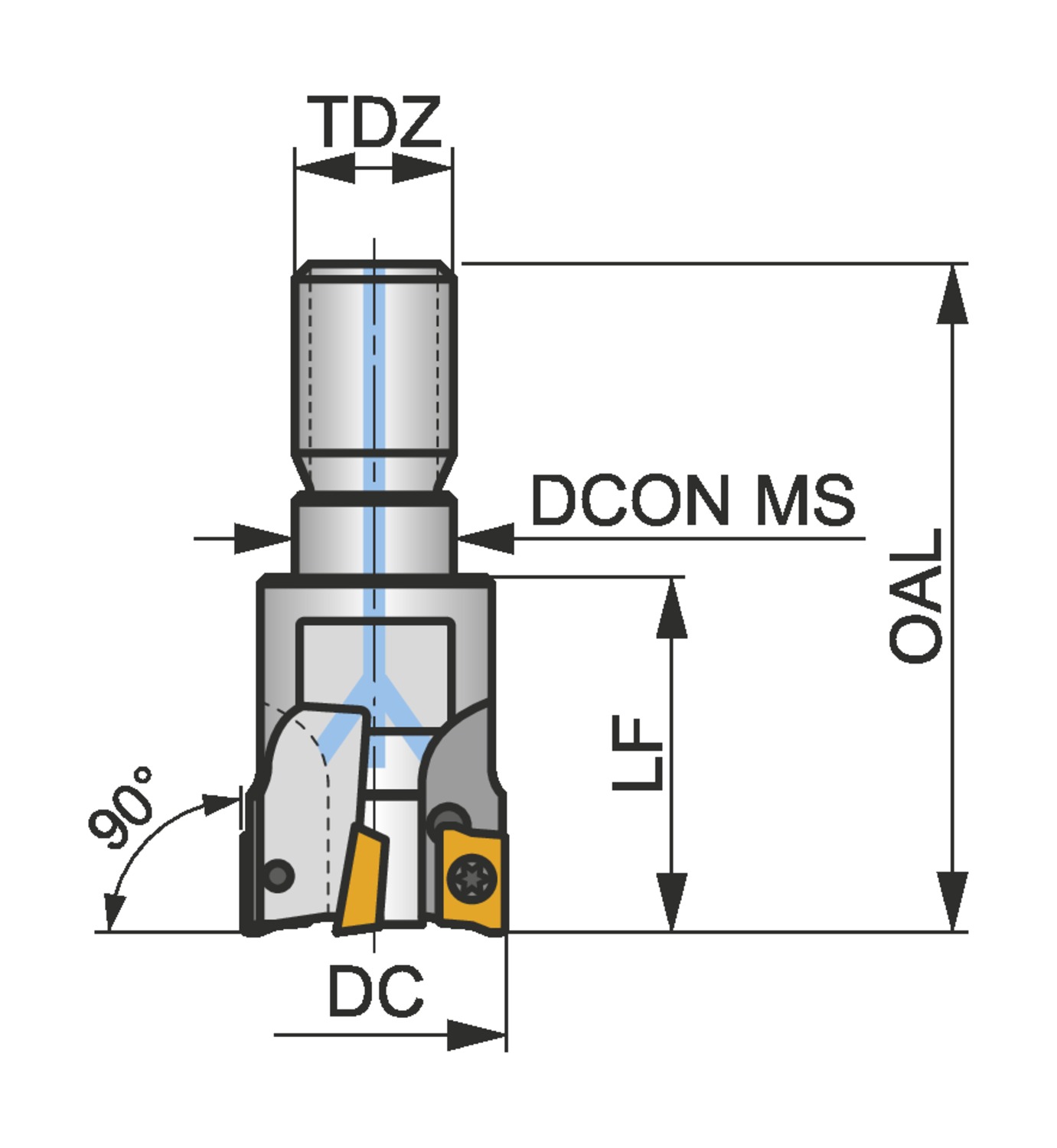

Cutting diameter – millimeter (DC): 12 mm
Overall length – millimeter (OAL): 35 mm
Connection diameter – millimeter (DCON MS): 6.5 mm
Functional length – millimeter (LF): 20 mm
Thread diameter size (TDZ): M6

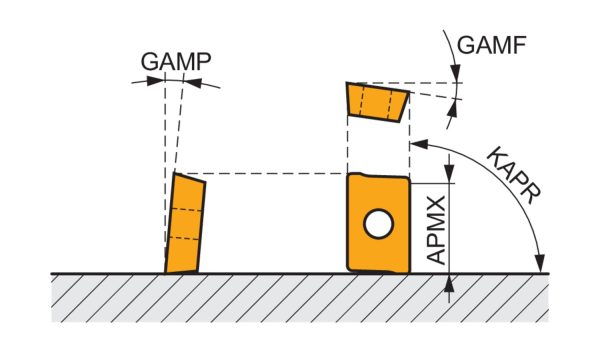

Radial rake angle (GAMF): -10
Axial rake angle (GAMP): 8
Peripheral effective cutting edge count (ZEFP): 2
Net weight – grams: 35.6
Cutter Design: SAD07D
Insert index count (NOI): 2
ISO: 12A2R020M06-SAD07D-C

Brand

PRAMET
