PRAMET 12A2R020M06-SCN05C-C Milling cutters for D&M

Product Code: 12A2R020M06-SCN05C-C

$411.28$373.89 Ex. GST

Product Code: 12A2R020M06-SCN05C-C SKU 12A2R020M06-SCN05C-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

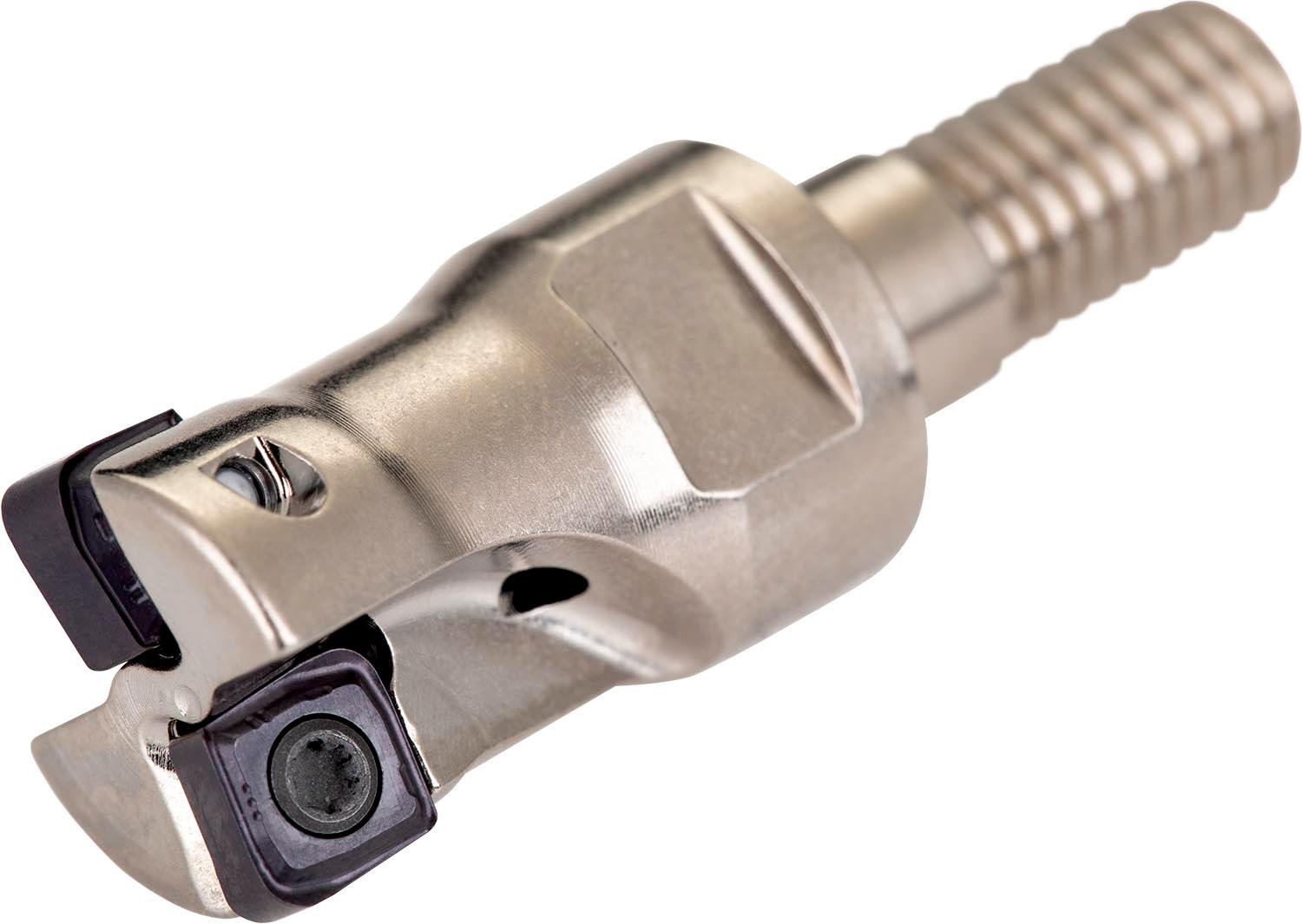

Copy face mill with double negative geometry which utilises 2 of CNHX 0502.. double-sided inserts, cutting diameter 12mm with 93° approach angle and M6 threaded shank for standard modular tool-holders, 20mm protrusion length, through coolant for face milling, copy milling, shallow shoulder milling, deep shoulder milling, ramping and plunge milling with a maximum depth of cut of 0.5mm

Additional information

Weight 0.3993 kg
Dimensions Length 3.5cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 3603603536050
Product number (SAP): 86034300
Ordering code ANSI: 12A2R020M06-SCN05C-C
Gross weight – grams: 41
Cutting diameter – millimeter (DC): 12 mm
Overall length – millimeter (OAL): 35 mm
Connection diameter – millimeter (DCON MS): 6.5 mm
Functional length – millimeter (LF): 20 mm
Thread diameter size (TDZ): M6
Radial rake angle (GAMF): -15
Axial rake angle (GAMP): -8
Peripheral effective cutting edge count (ZEFP): 2
Net weight – grams: 41
Cutter Design: SCN05C
Insert index count (NOI): 2
ISO: 12A2R020M06-SCN05C-C

Brand

PRAMET
