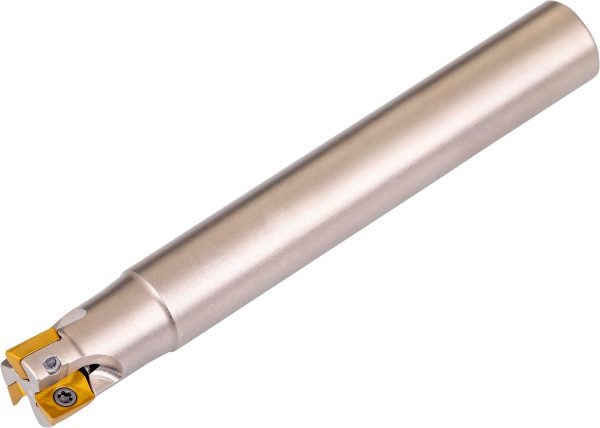

PRAMET 12A3R020A12-SAD07D-CF Milling cutters with clamping by screw

Product Code: 12A3R020A12-SAD07D-CF

$413.55$375.95 Ex. GST

Product Code: 12A3R020A12-SAD07D-CF SKU 12A3R020A12-SAD07D-CF Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 3 of ADMX 0702.. or ADEX 0702.. single-sided inserts, cutting diameter 12mm with 90° approach angle and 12mm parallel shank according to DIN 1835A, 20mm functional and 90mm overall length, through coolant for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 5.0mm

Additional information

Weight 0.4015 kg
Dimensions Length 9cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 3603603519237
Product number (SAP): 86034206
Ordering code ANSI: 12A3R020A12-SAD07D-CF
Product Line: FORCE AD
Gross weight – grams: 96.2
Cutting diameter – millimeter (DC): 12 mm
Overall length – millimeter (OAL): 90 mm
Connection diameter – millimeter (DCON MS): 12 mm
Usable Length – millimeter (LU): 20 mm
Radial rake angle (GAMF): -10
Axial rake angle (GAMP): 8
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 56200
Net weight – grams: 90
Cutter Design: SAD07D
Insert index count (NOI): 3
ISO: 12A3R020A12-SAD07D-CF

Brand

PRAMET
