PRAMET 12K2R030A12-SLC12-A Milling cutters for D&M

Description

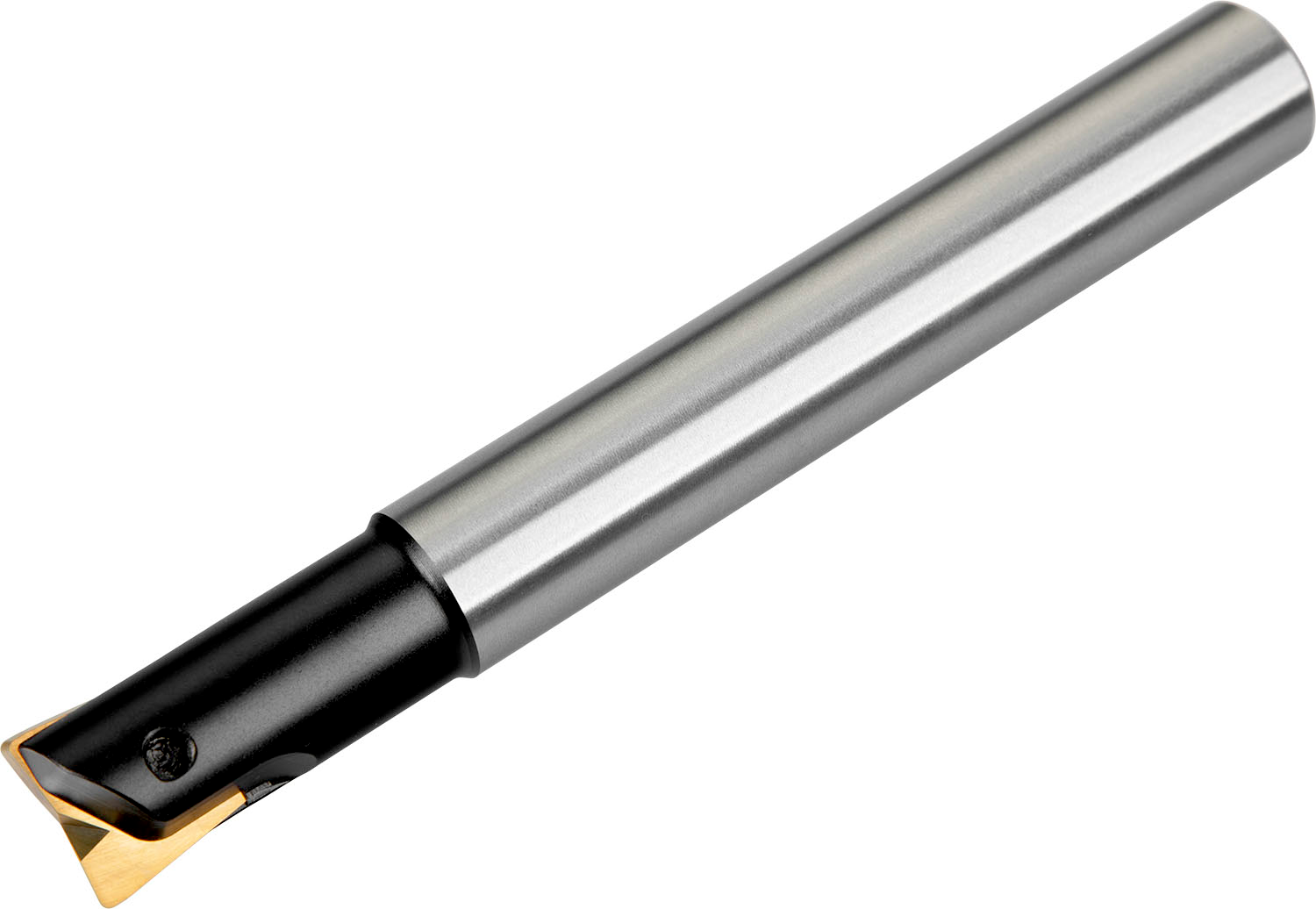

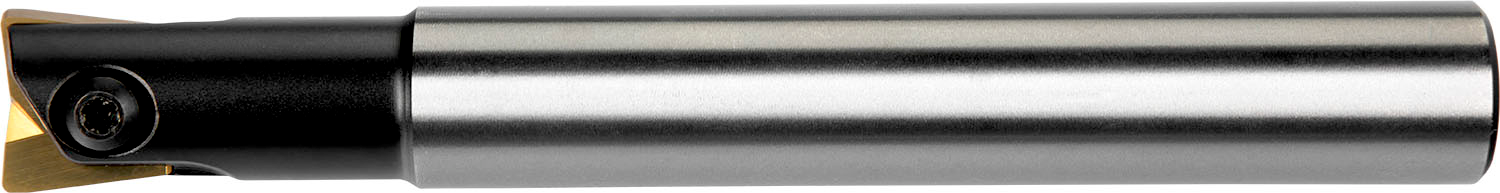

Copy end mill which utilises 1 of LC 12-KP, LC 12-KPF or LC 12..-RI single-sided insert, cutting diameter 12mm with 12mm parallel shank according to DIN 1835A, 30mm functional and 130mm overall length for copy milling with a maximum depth of cut of 1.0-3.0mm

Additional information

Weight	0.2717 kg
Dimensions	Length 13cm x Width cm x Depth cm
barcode

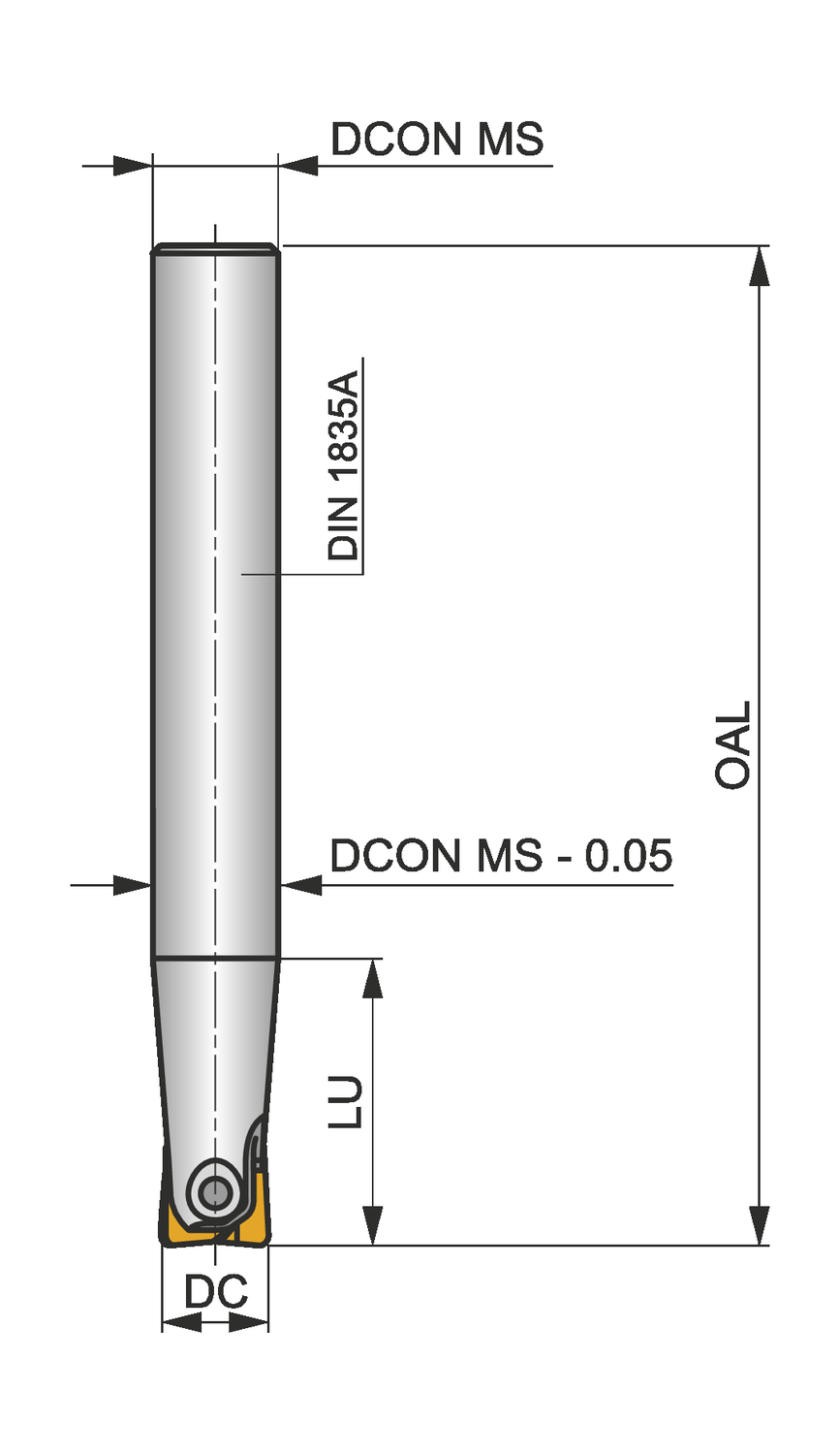

Additional Information	Description: Value EAN number: 3603602920638 Product number (SAP): 84000910 Ordering code ANSI: 12K2R030A12-SLC12-A Gross weight – grams: 230.5 Cutting diameter – millimeter (DC): 12 mm Overall length – millimeter (OAL): 130 mm Connection diameter – millimeter (DCON MS): 12 mm Usable Length – millimeter (LU): 30 mm Body diameter – millimeter (BD): 10.5 mm Peripheral effective cutting edge count (ZEFP): 2 Rotational speed maximum (RPMX): 35000 Net weight – grams: 110 Insert index count (NOI): 1 ISO: 12K2R030A12-SLC12-A

Need Technical Advice?

Description

Additional information

Brand

PRAMET
