PRAMET 12K2R060A16-SRC12-A Milling cutters for D&M

Description

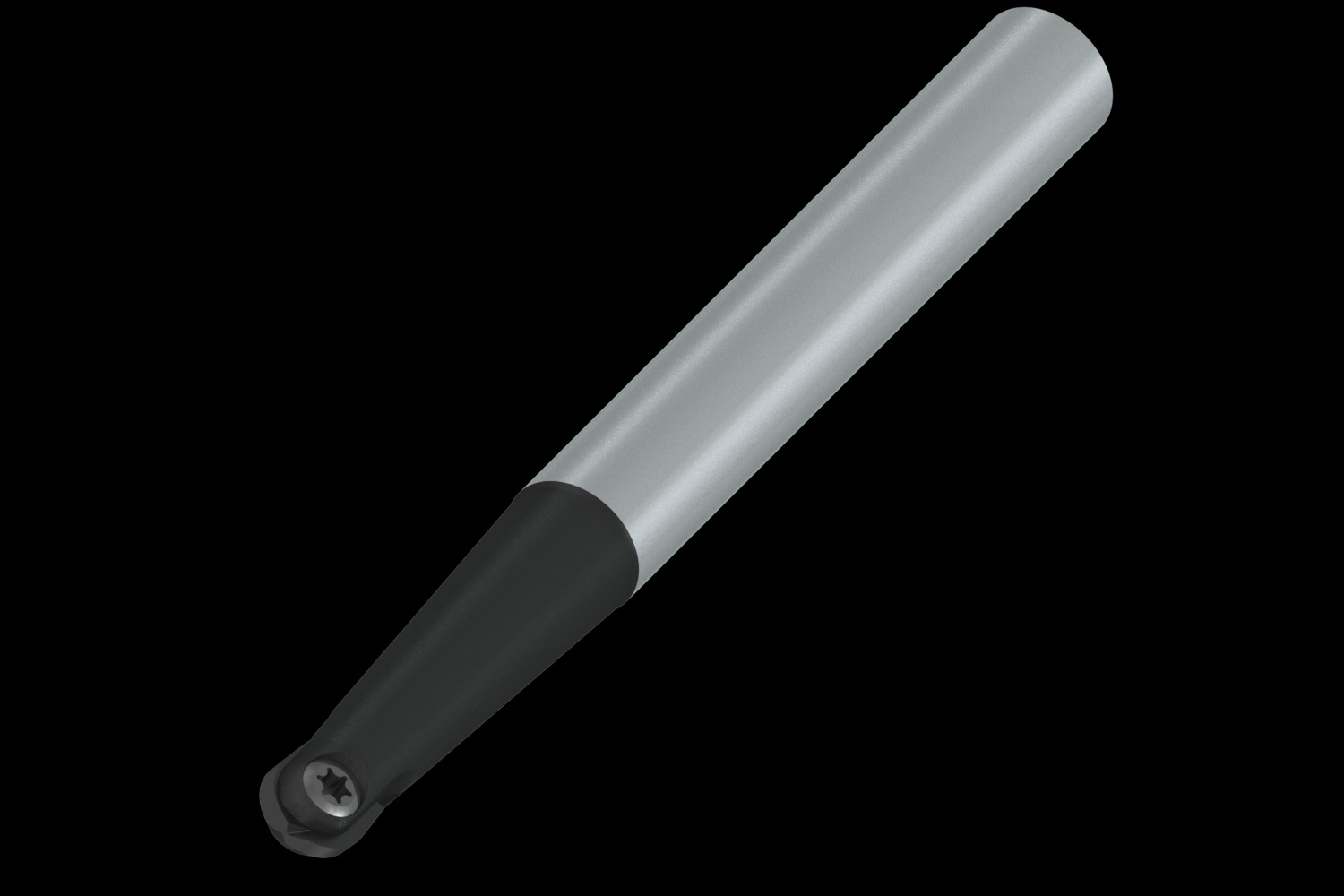

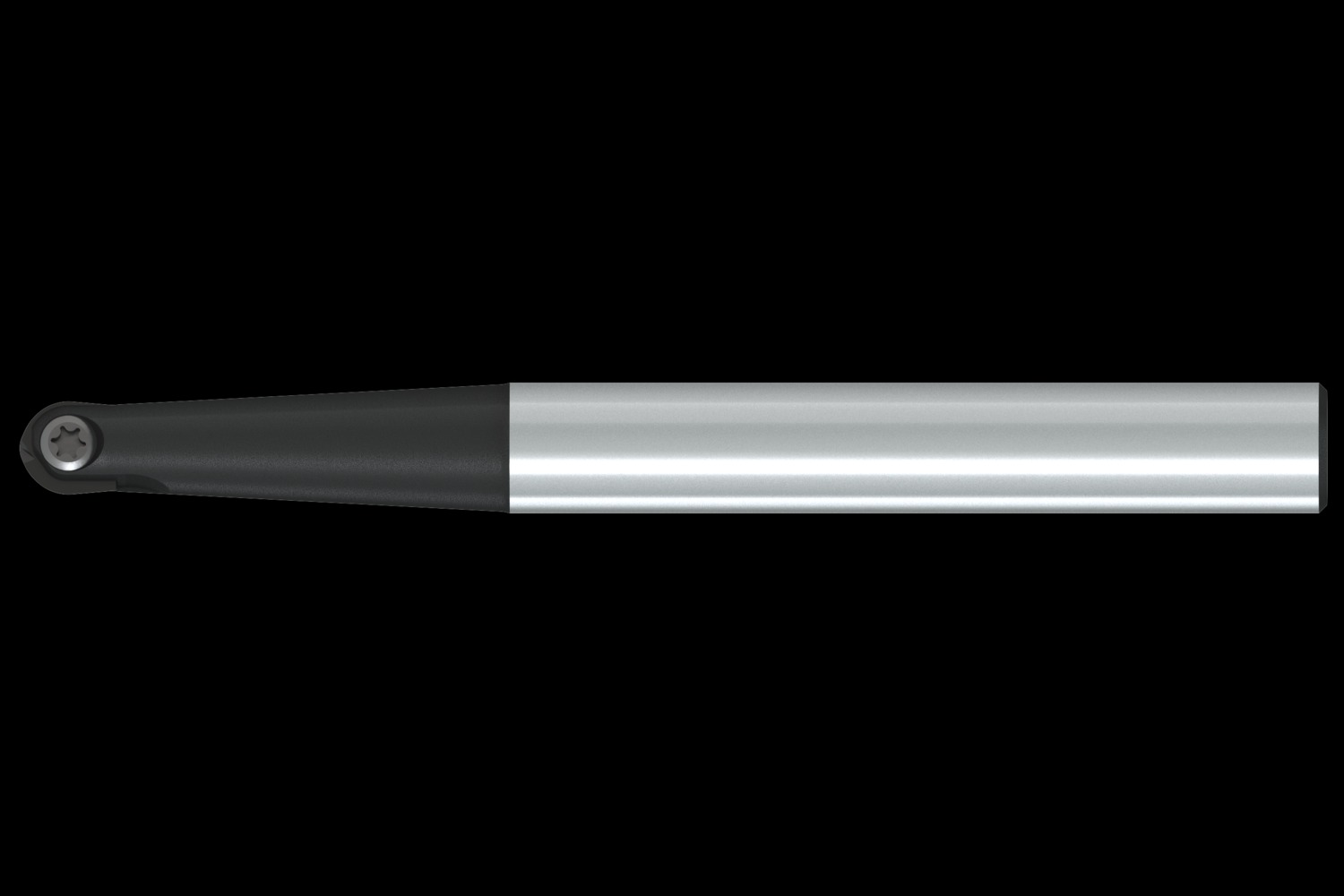

Copy end mill which utilises 1 of RC 12, RC 12-F, LC 12..-CH or LC 12..-RE single-sided insert, cutting diameter 12mm with 16mm parallel shank according to DIN 1835A, 24.5mm functional and 160mm overall length for copy milling with a maximum depth of cut of 0.6-3.2mm

Additional information

Weight	0.2739 kg
Dimensions	Length 16cm x Width cm x Depth cm
barcode

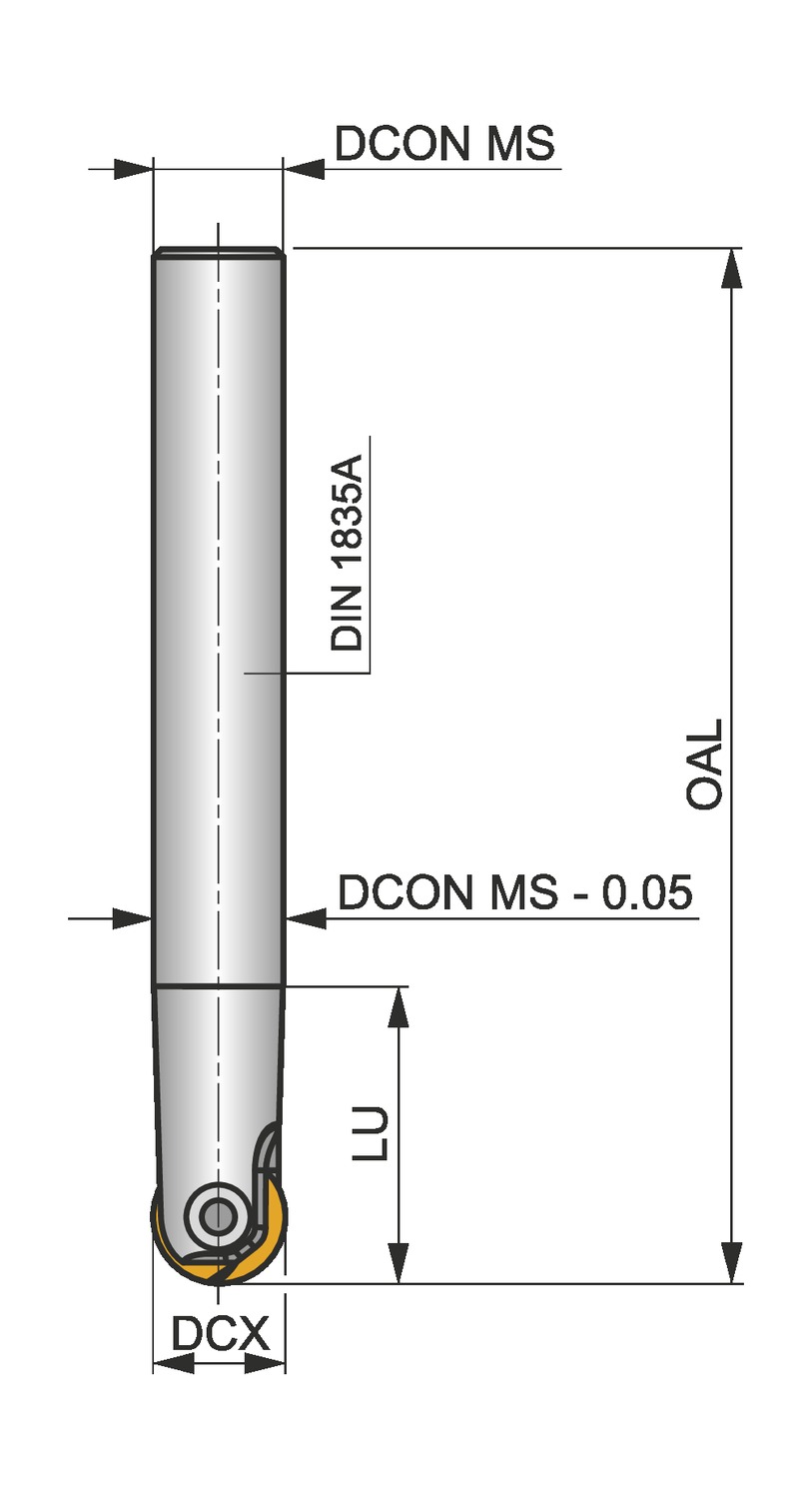

Additional Information	Description: Value EAN number: 3603602920867 Product number (SAP): 84000941 Ordering code ANSI: 12K2R060A16-SRC12-A Gross weight – grams: 337.8 Cutting diameter maximum – millimeter (DCX): 12 mm Overall length – millimeter (OAL): 160 mm Connection diameter – millimeter (DCON MS): 16 mm Usable Length – millimeter (LU): 24.5 mm Peripheral effective cutting edge count (ZEFP): 2 Rotational speed maximum (RPMX): 35000 Net weight – grams: 140 Insert index count (NOI): 1 ISO: 12K2R060A16-SRC12-A
