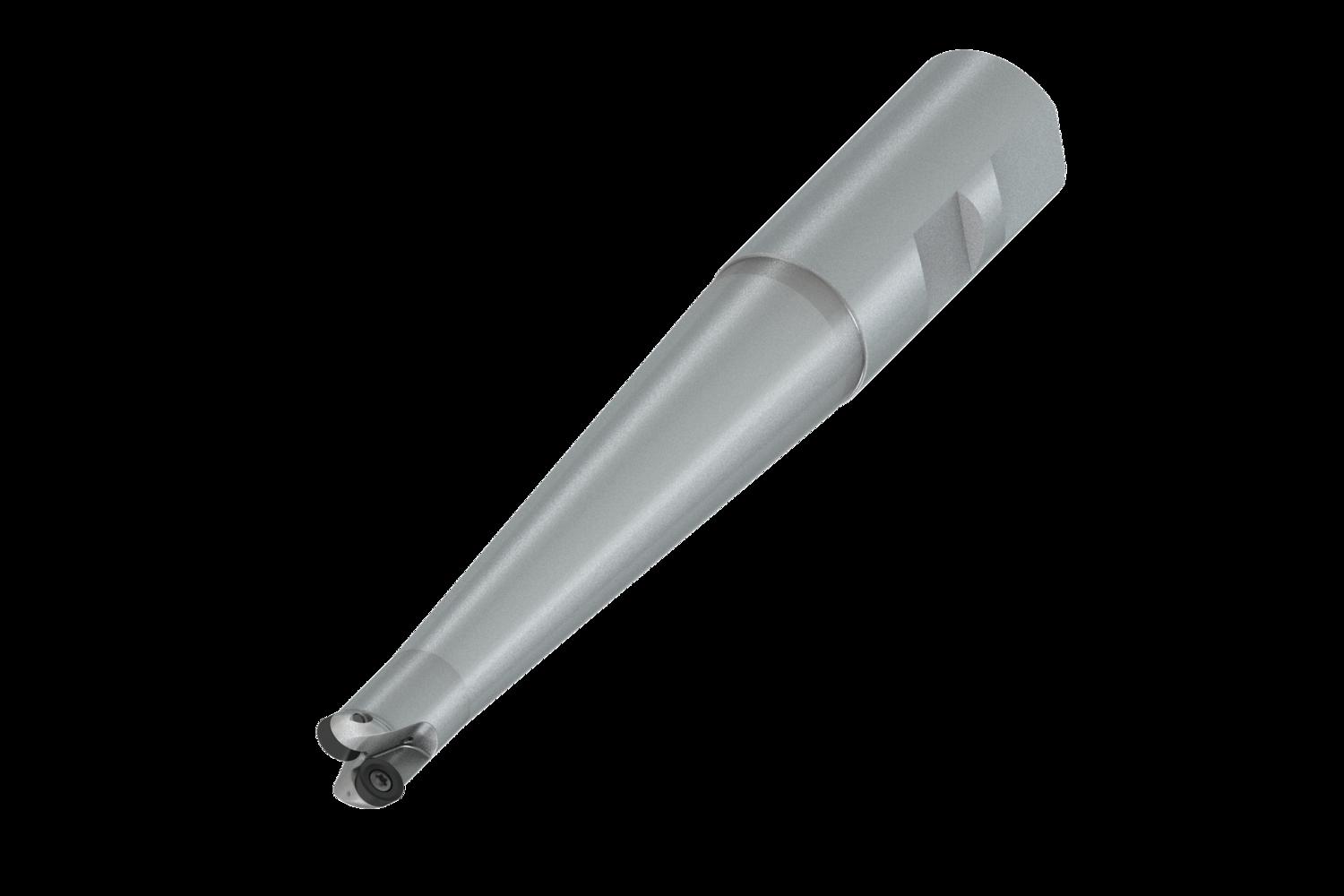

PRAMET 15E2R120B25-SRD07-CF Milling cutters for D&M

Product Code: 15E2R120B25-SRD07-CF

$304.78$277.07 Ex. GST

Product Code: 15E2R120B25-SRD07-CF SKU 15E2R120B25-SRD07-CF Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Copy face mill with positve/negative geometry which utilises 2 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 15mm with 25mm Weldon shank according to DIN 1835B, 120mm usable and 176mm overall length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2mm

Additional information

Weight 0.2959 kg
Dimensions Length 17.6cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 3603603827882
Product number (SAP): 86037342
Ordering code ANSI: 15E2R120B25-SRD07-CF
Gross weight – grams: 449.4
Cutting diameter maximum – millimeter (DCX): 15 mm
Cutting diameter – millimeter (DC): 8 mm
Overall length – millimeter (OAL): 176 mm
Connection diameter – millimeter (DCON MS): 25 mm
Usable Length – millimeter (LU): 120 mm
Usable Length maximum – millimeter (LUX): 22 mm
Radial rake angle (GAMF): 1
Axial rake angle (GAMP): 0
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 44200
Net weight – grams: 449.4
Cutter Design: SRD07
Insert index count (NOI): 2
ISO: 15E2R120B25-SRD07-CF

Brand

PRAMET
