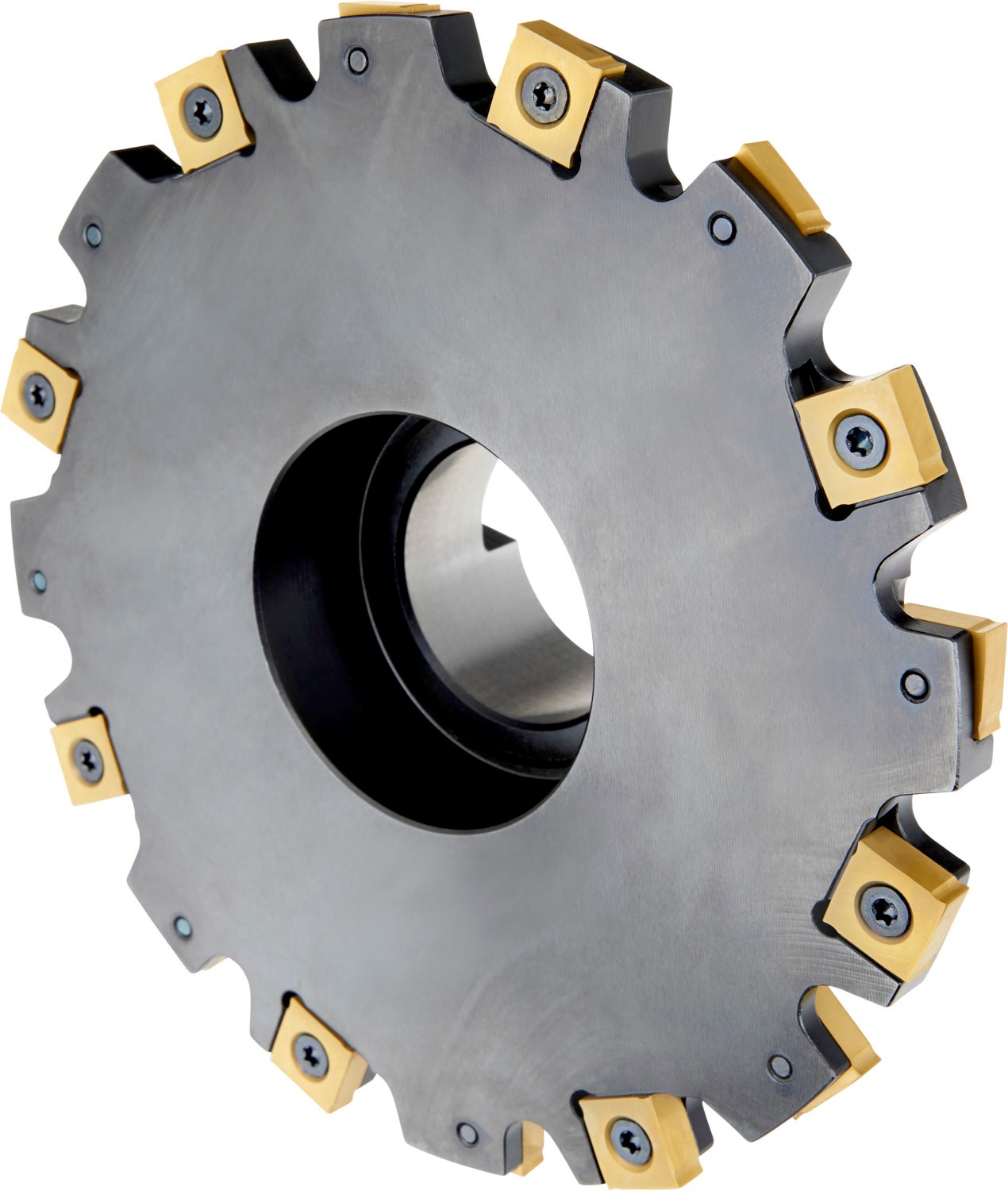

PRAMET 160B08R-S90SN12N10 Milling cutters with clamping by screw

Description: Value
EAN number: 3603602936752
Product number (SAP): 84004712
Ordering code ANSI: 160B08R-S90SN12N10
Gross weight – grams: 1897.3
Milling range CW – Global: 4.0 – 14.0 mm
Cutting diameter – millimeter (DC): 160 mm
Overall length – millimeter (OAL): 50 mm
Connection bore diameter – millimeter (DCB): 40 mm
Hub diameter – millimeter (DHUB): 70 mm
Cutting depth maximum – millimeter (CDX): 41 mm
Cutting width – millimeter (CW): 10 mm
Face effective cutting edge count (ZEFF): 8
Radial rake angle (GAMF): 2.5
Axial rake angle (GAMP): -0.5
Peripheral effective cutting edge count (ZEFP): 16
Rotational speed maximum (RPMX): 5900
Net weight – grams: 1830
Cutter Design: S90SN
Insert index count (NOI): 16
ISO: 160B08R-S90SN12N10
