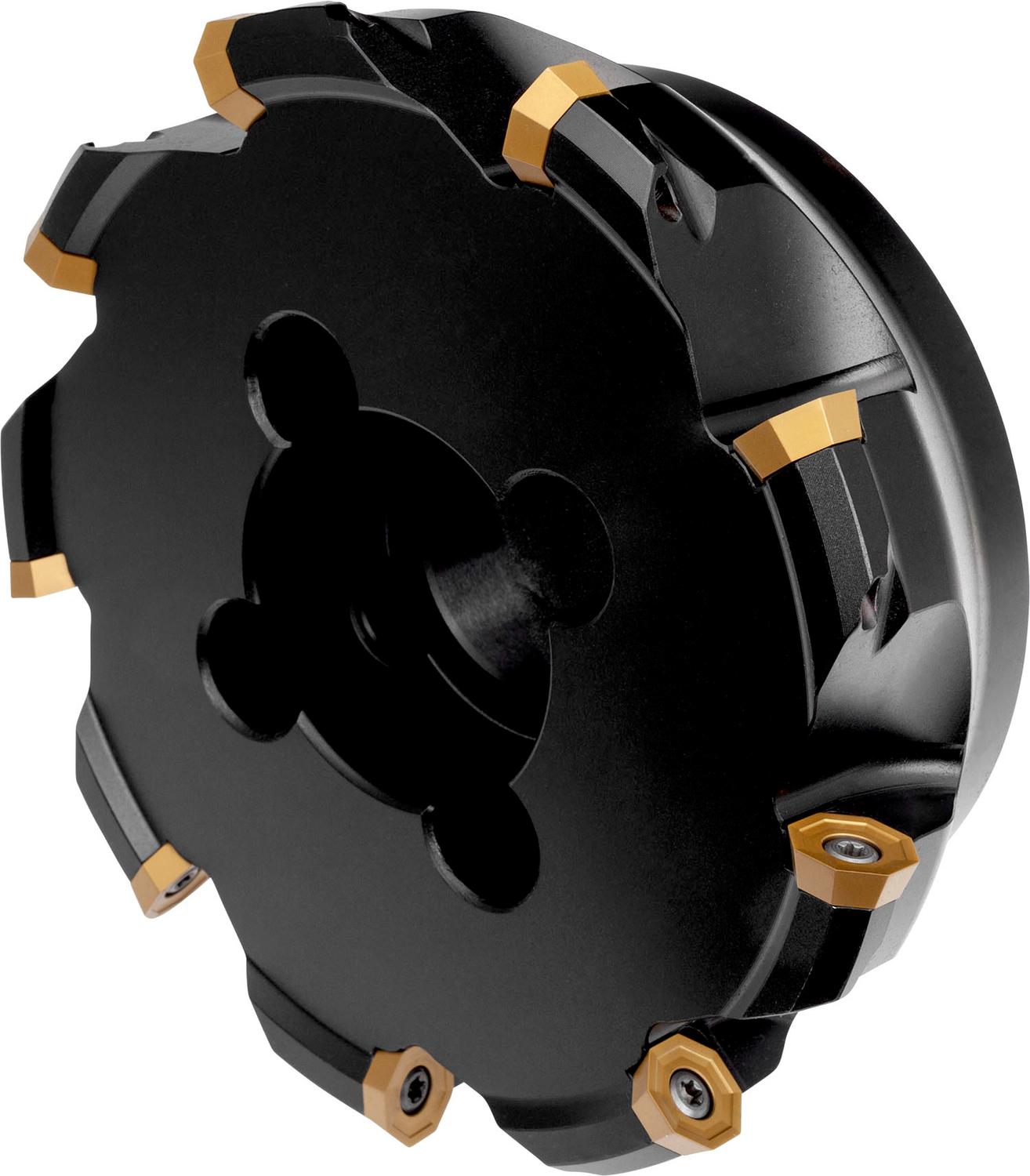

PRAMET 160C09R-S45OD06D Milling cutters with clamping by screw

Product Code: 160C09R-S45OD06D

$1,875.12$1,704.65 Ex. GST

Product Code: 160C09R-S45OD06D SKU 160C09R-S45OD06D Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Face mill with positve/negative geometry which utilises 9 of OD.. 0605ZZ.. or RP.. 1505MO.. single-sided inserts, cutting diameter 160 to maximum 169.5mm with 45° approach angle and 40mm connection bore according to DIN 8030-C, 63mm protrusion length and differential pitch for face milling and chamfering with a maximum depth of cut of 3.1 (8.6)mm

Additional information

Weight 1.8205 kg
barcode
Additional Information

Description: Value
EAN number: 3603602921864
Product number (SAP): 86038505
Ordering code ANSI: 160C09R-S45OD06D
Gross weight – grams: 6495
Cutting diameter – millimeter (DC): 160 mm
Cutting diameter maximum – millimeter (DCX): 169.5 mm
Functional length – millimeter (LF): 63 mm
Connection diameter – millimeter (DCON MS): 40 mm
Counterbore diameter connection bore – millimeter (DCCB): 56 mm
Diameter bolt circle 1 – millimeter (DBC1): 66.7 mm
Keyway width – millimeter (KWW): 16.4 mm
Keyway depth – millimeter (KWD): 9 mm
Radial rake angle (GAMF): 0
Axial rake angle (GAMP): 5
Peripheral effective cutting edge count (ZEFP): 9
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 5500
Net weight – grams: 6490
Cutter Design: SOD06D
Insert index count (NOI): 9
ISO: 160C09R-S45OD06D

Brand

PRAMET
