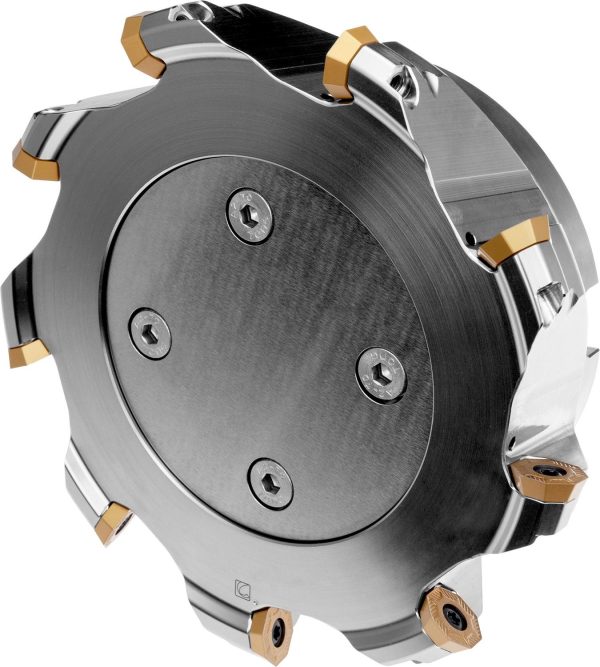

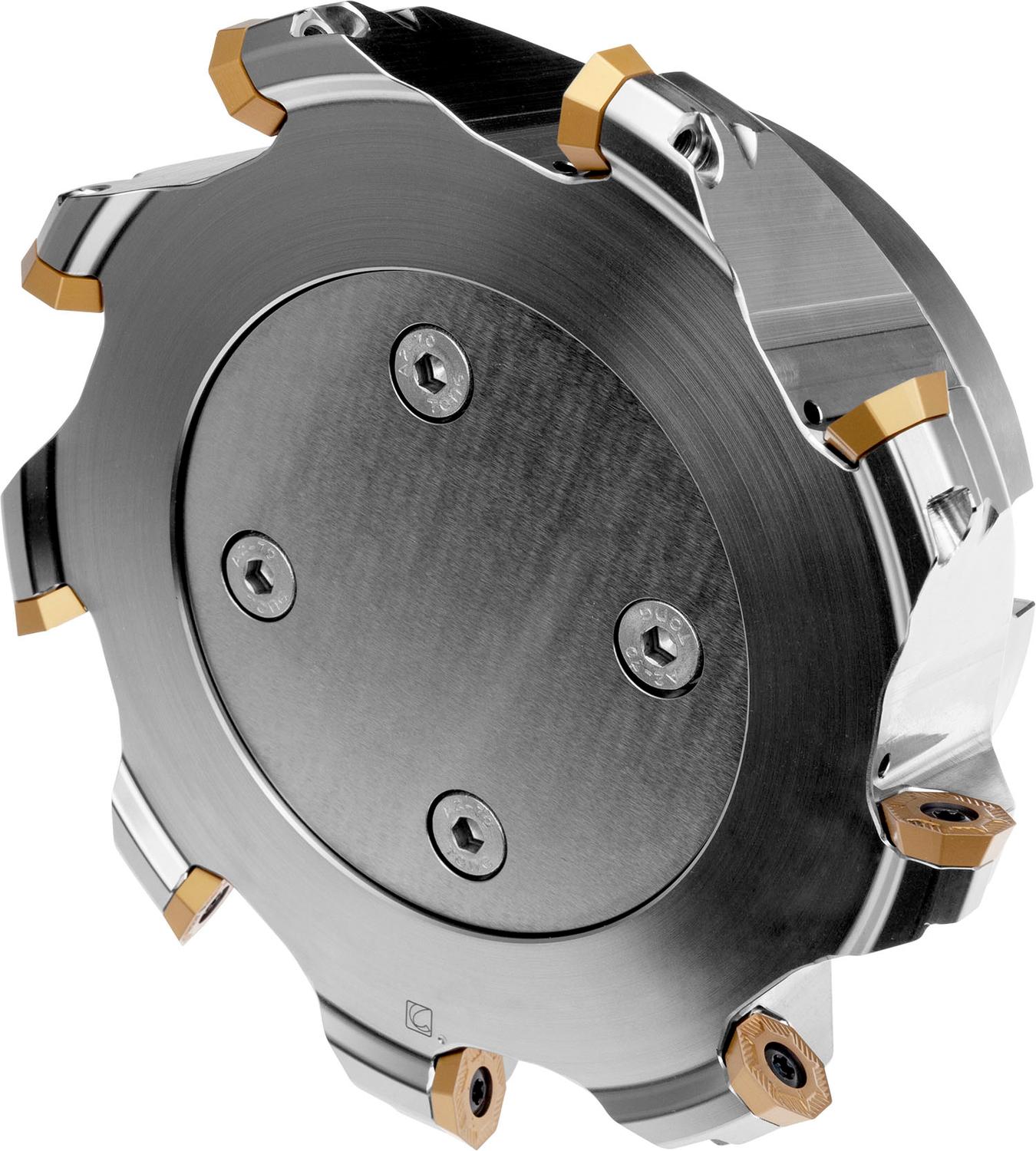

PRAMET 160C09R-S45OE06Z-C Milling cutters with clamping by screw

Product Code: 160C09R-S45OE06Z-C

$2,141.37$1,946.70 Ex. GST

Product Code: 160C09R-S45OE06Z-C SKU 160C09R-S45OE06Z-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Face mill with double positive geometry which utilises 9 of OEHT 0604AE.., REHT 1604M0.. or XEHT 0604AE.. single-sided inserts, cutting diameter 160 to maximum 170.2mm with 43° approach angle and 40mm connection bore according to DIN 8030-C, 63mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9)mm

Additional information

Weight 2.079 kg
barcode
Additional Information

Description: Value
EAN number: 3603603078680
Product number (SAP): 86026030
Ordering code ANSI: 160C09R-S45OE06Z-C
Gross weight – grams: 6079.5
Cutting diameter – millimeter (DC): 160 mm
Cutting diameter maximum – millimeter (DCX): 170.2 mm
Functional length – millimeter (LF): 63 mm
Connection diameter – millimeter (DCON MS): 40 mm
Diameter bolt circle 1 – millimeter (DBC1): 66.7 mm
Keyway width – millimeter (KWW): 16.4 mm
Keyway depth – millimeter (KWD): 9 mm
Radial rake angle (GAMF): 6
Axial rake angle (GAMP): 10
Peripheral effective cutting edge count (ZEFP): 9
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 6000
Net weight – grams: 6079.5
Cutter Design: SOE06Z
Insert index count (NOI): 9
ISO: 160C09R-S45OE06Z-C
