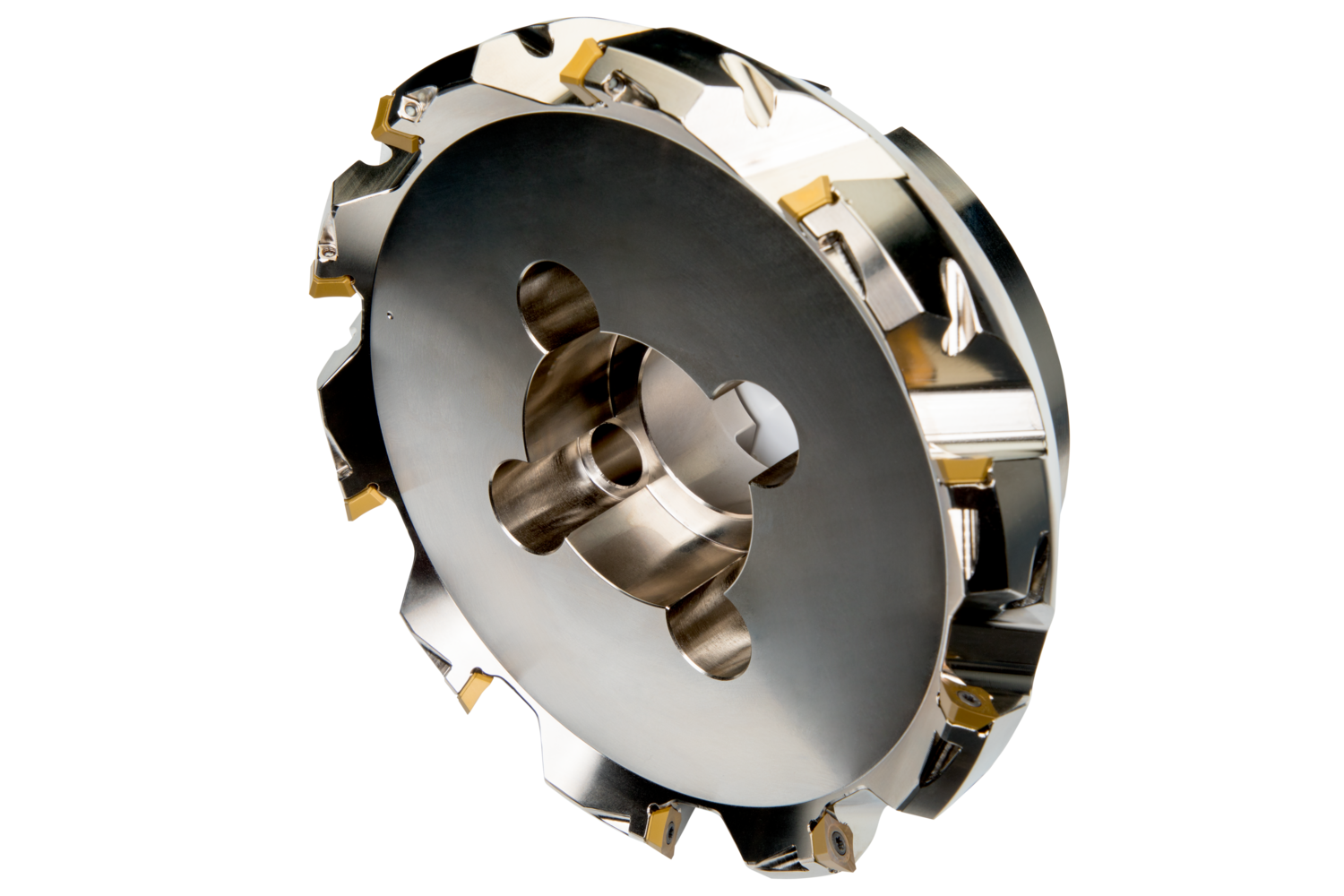

PRAMET 160C10R-S45SE09F Milling cutters with clamping by screw

Description: Value
EAN number: 3603602970176
Product number (SAP): 86007563
Ordering code ANSI: 160C10R-S45SE09F
Gross weight – grams: 6210
Cutting diameter – millimeter (DC): 160 mm
Cutting diameter maximum – millimeter (DCX): 169.6 mm
Connection diameter – millimeter (DCON MS): 40 mm
Diameter bolt circle 1 – millimeter (DBC1): 66.7 mm
Functional length – millimeter (LF): 63 mm
Keyway width – millimeter (KWW): 16.4 mm
Keyway depth – millimeter (KWD): 9 mm
Radial rake angle (GAMF): -5
Axial rake angle (GAMP): 20
Peripheral effective cutting edge count (ZEFP): 10
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 8700
Net weight – grams: 6210
Cutter Design: SSE09
Insert index count (NOI): 10
ISO: 160C10R-S45SE09F
