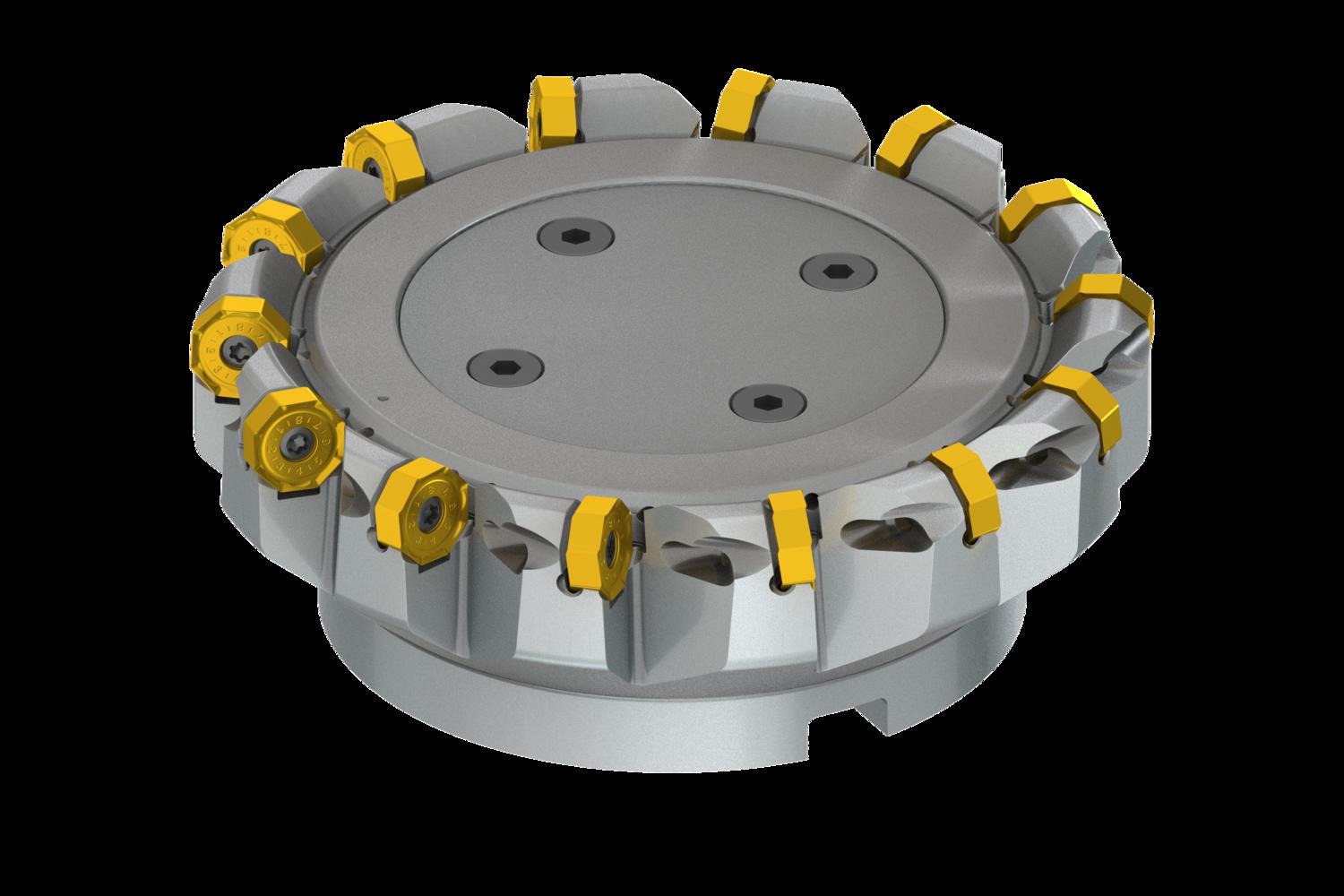

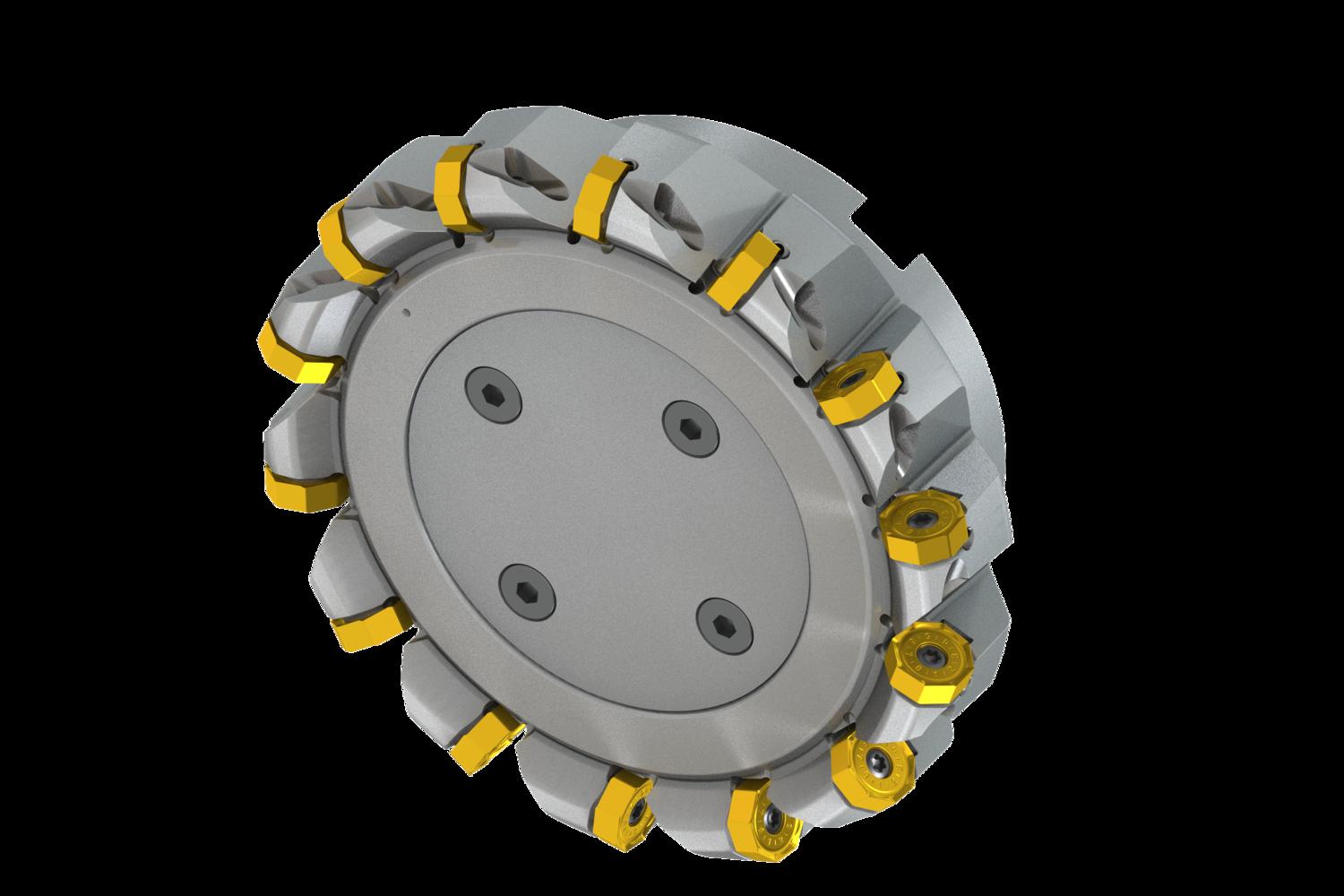

PRAMET 160C14R-S45ON06-C Milling cutters with clamping by screw

Description: Value
EAN number: 3603604105415
Product number (SAP): 86042980
Ordering code ANSI: 160C14R-S45ON06-C
Gross weight – grams: 6598.7

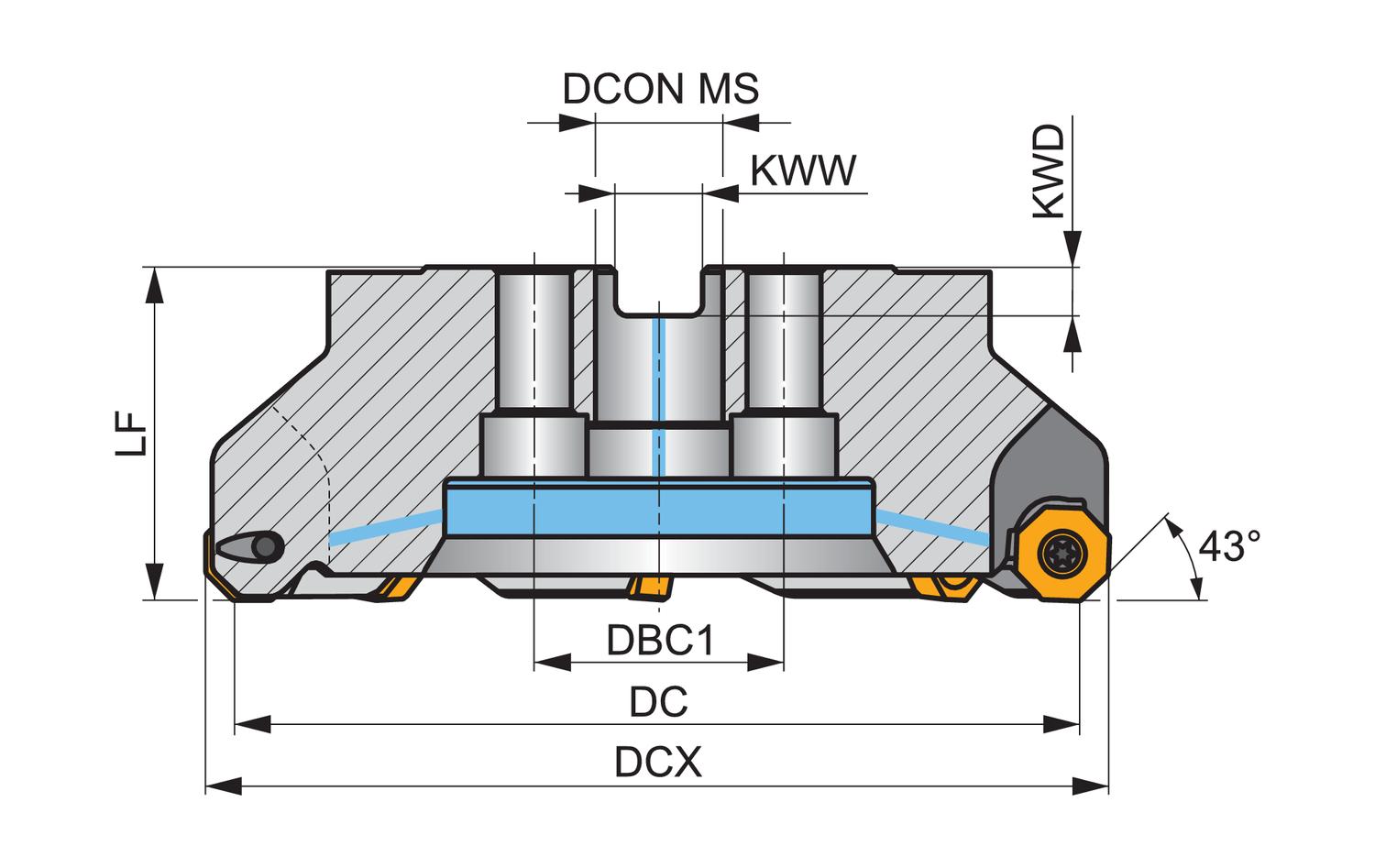

Cutting diameter – millimeter (DC): 160 mm
Cutting diameter maximum – millimeter (DCX): 170.8 mm
Connection diameter – millimeter (DCON MS): 40 mm
Diameter bolt circle 1 – millimeter (DBC1): 66.7 mm
Functional length – millimeter (LF): 63 mm
Keyway width – millimeter (KWW): 16.4 mm
Keyway depth – millimeter (KWD): 9.25 mm

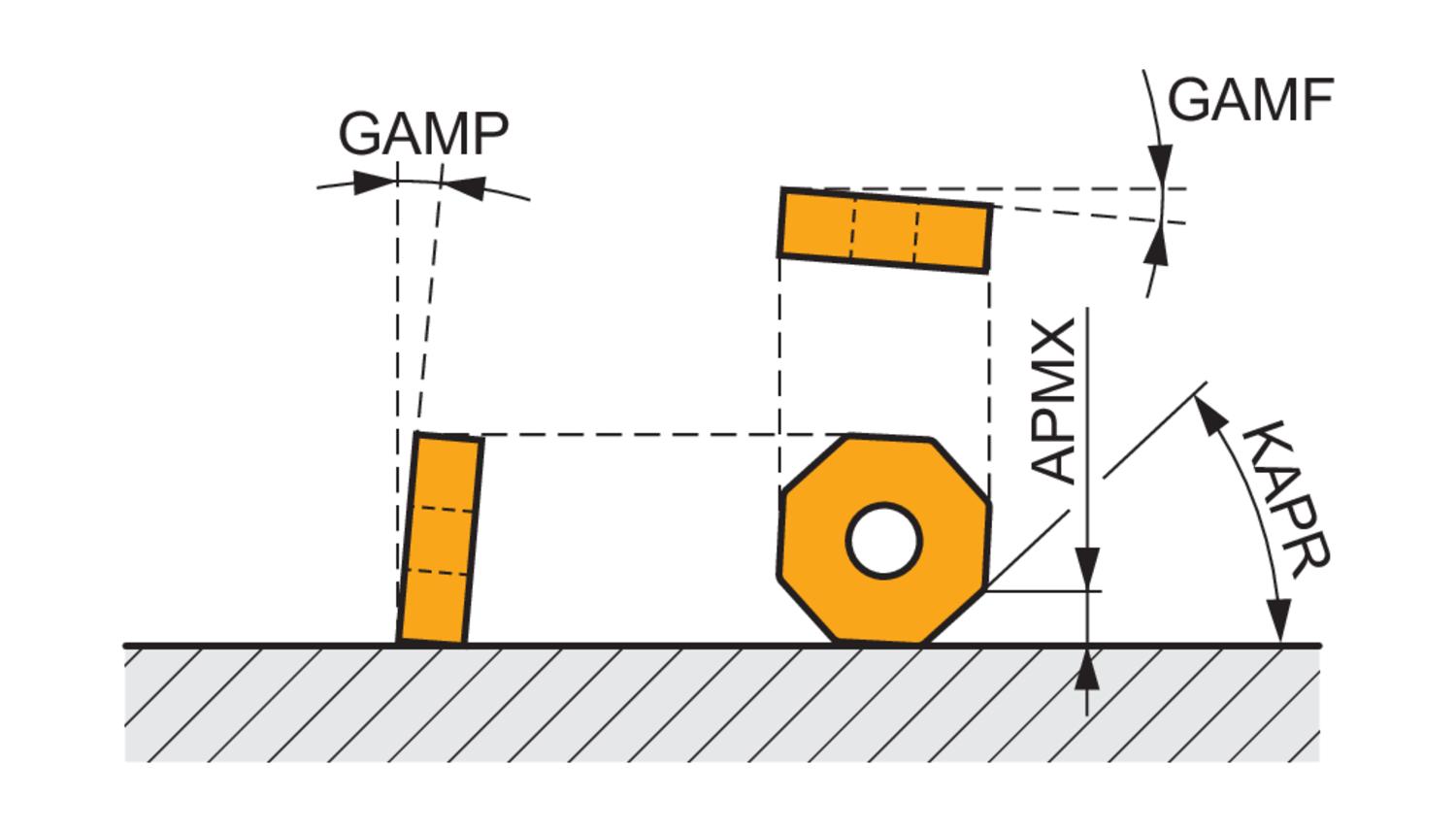

Radial rake angle (GAMF): -11
Axial rake angle (GAMP): -5
Peripheral effective cutting edge count (ZEFP): 14
Rotational speed maximum (RPMX): 5700
Net weight – grams: 5650
Cutter Design: SON06C
ISO: 160C14R-S45ON06-C
