PRAMET 160H05N-S90XN12N24 Milling cutters with clamping by screw

Product Code: 160H05N-S90XN12N24

$3,081.76$2,801.60 Ex. GST

Product Code: 160H05N-S90XN12N24 SKU 160H05N-S90XN12N24 Categories CUTTING TOOLS (HSS & Carbide), H4 - Mill Cutter SCR, Milling

PRAMET 160H05N-S90XN12N24 Milling cutters with clamping by screw

PRAMET 160H05N-S90XN12N24 Milling cutters with clamping by screw - Image 2

PRAMET 160H05N-S90XN12N24 Milling cutters with clamping by screw - Image 3

PRAMET 160H05N-S90XN12N24 Milling cutters with clamping by screw - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

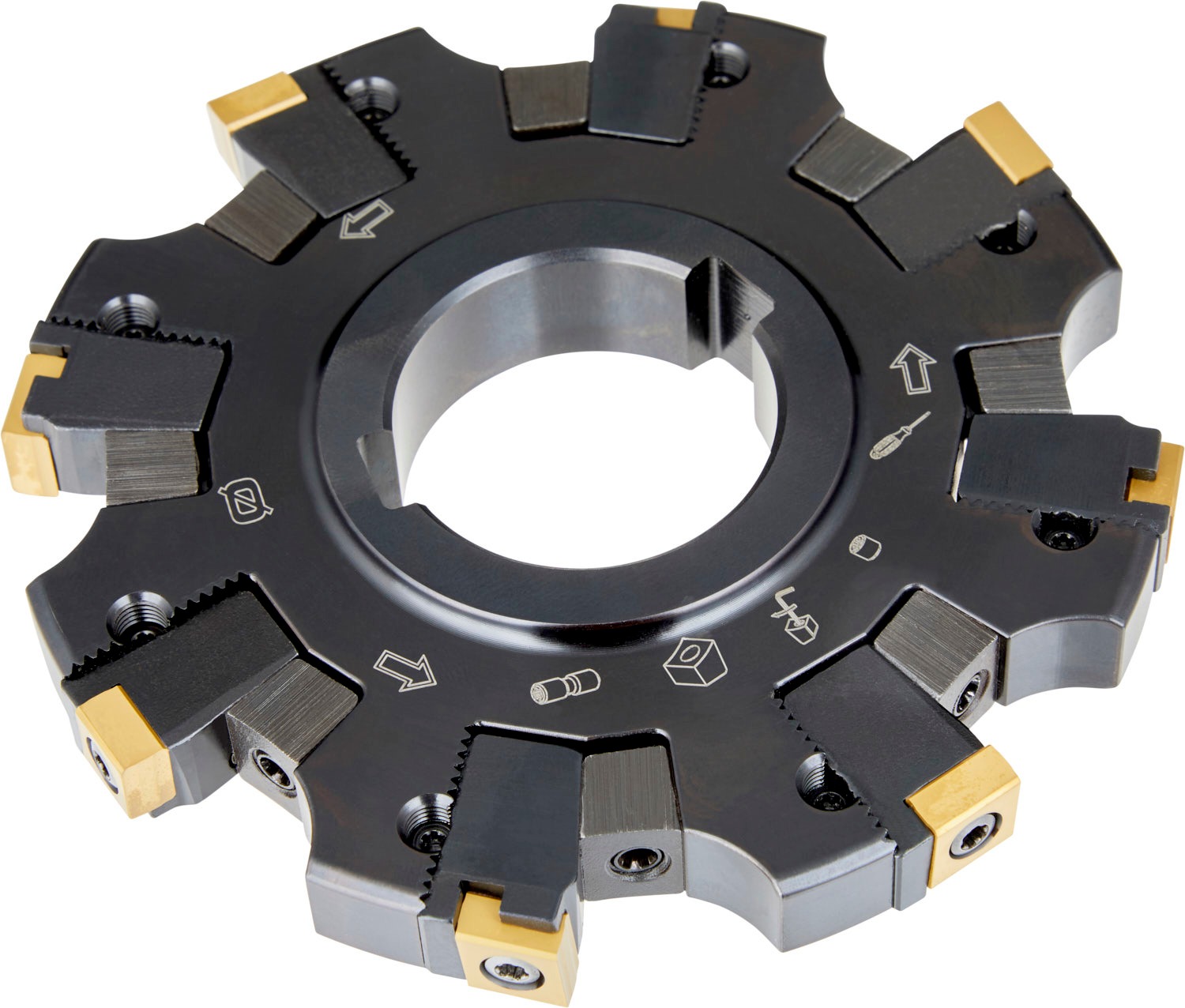

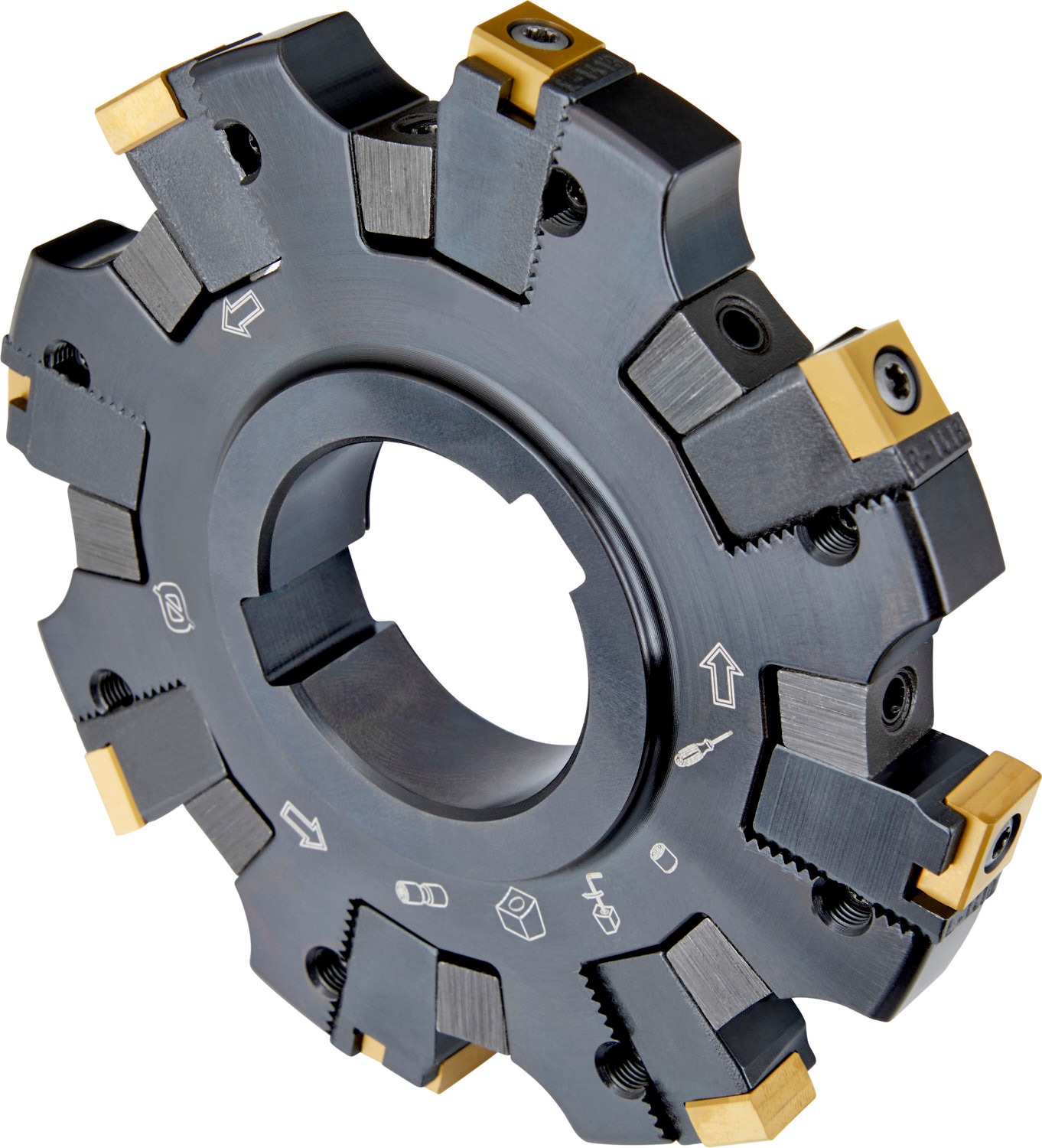

Disc mill with positve/negative geometry which utilises 10 of XNHQ 1205.. double-sided inserts, cutting diameter 160mm with 90° approach angle and 40mm connection bore according to DIN 8030, for deep slot milling with a width of cut of 19,0 ÷ 24,3mm

Additional information

Weight	2.992 kg
Dimensions	Length 2.4cm x Width cm x Depth cm
barcode

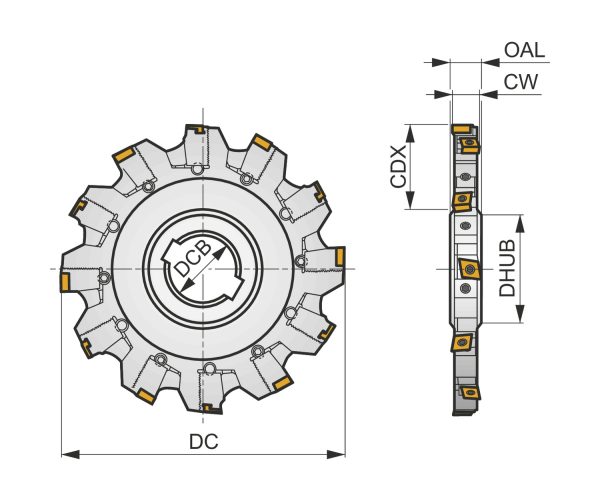

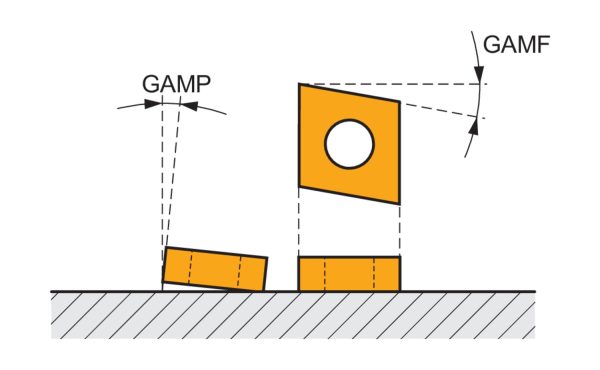

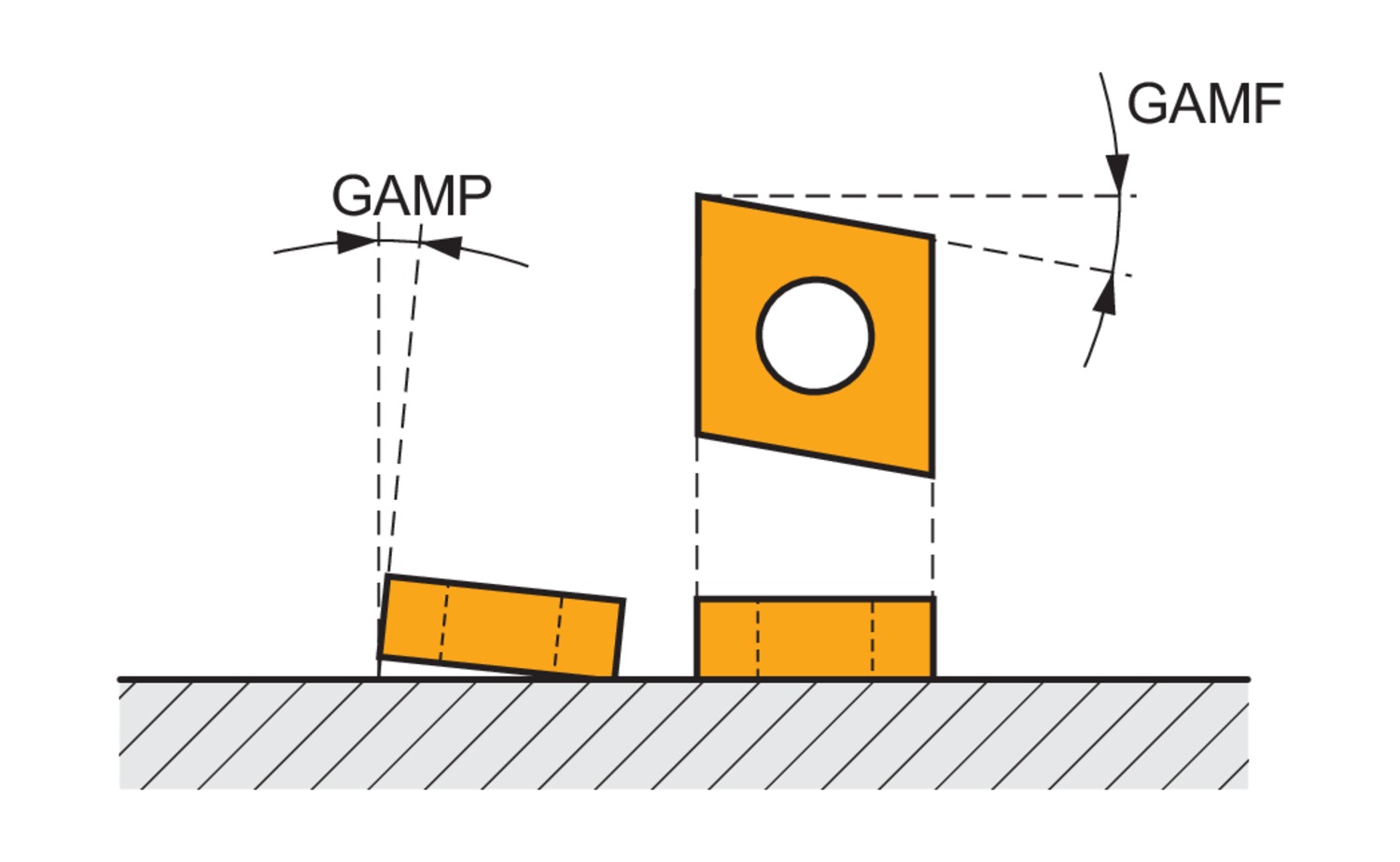

Additional Information	Description: Value EAN number: 3603602955036 Product number (SAP): 86000058 Ordering code ANSI: 160H05N-S90XN12N24 Gross weight – grams: 2500 Milling range CW – Global: 14.0 – 30.5 mm Cutting diameter – millimeter (DC): 160 mm Overall length – millimeter (OAL): 24 mm Connection bore diameter – millimeter (DCB): 40 mm Hub diameter – millimeter (DHUB): 56 mm Cutting depth maximum – millimeter (CDX): 50 mm Cutting Width Range – millimeters (CW): 19.0 ÷ 24.3 Radial rake angle (GAMF): -8 Axial rake angle (GAMP): 5 Face effective cutting edge count (ZEFF): 5 Peripheral effective cutting edge count (ZEFP): 10 Rotational speed maximum (RPMX): 5200 Net weight – grams: 2500 Cutter Design: S90CN(XN) Insert index count (NOI): 10 ISO: 160H05N-S90XN12N24

Brand

PRAMET
