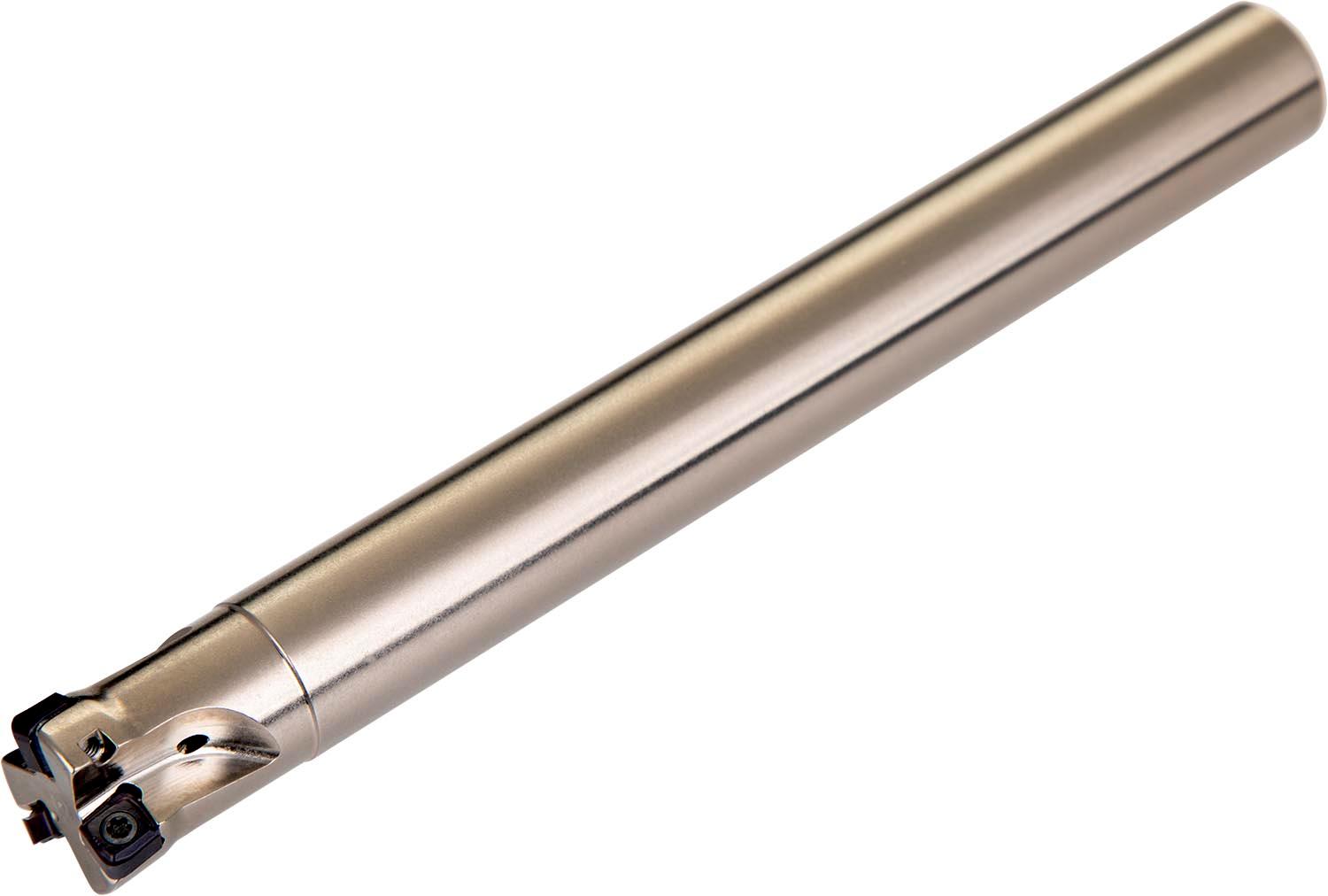

PRAMET 16A3R020A14-SCN05C-C Milling cutters for D&M

Product Code: 16A3R020A14-SCN05C-C

$479.26$435.69 Ex. GST

Product Code: 16A3R020A14-SCN05C-C SKU 16A3R020A14-SCN05C-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Copy face mill with double negative geometry which utilises 3 of CNHX 0502.. double-sided inserts, cutting diameter 16mm with 93° approach angle and 14mm parallel shank according to DIN 1835A, 20mm functional and 130mm overall length, through coolant for face milling, copy milling, shallow shoulder milling, deep shoulder milling, ramping and plunge milling with a maximum depth of cut of 0.5mm

Additional information

Weight 0.4653 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603603536036
Product number (SAP): 86034298
Ordering code ANSI: 16A3R020A14-SCN05C-C
Gross weight – grams: 166.3
Cutting diameter – millimeter (DC): 16 mm
Overall length – millimeter (OAL): 130 mm
Connection diameter – millimeter (DCON MS): 14 mm
Usable Length – millimeter (LU): 20 mm
Radial rake angle (GAMF): -13.5
Axial rake angle (GAMP): -7.8
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 42200
Net weight – grams: 163
Cutter Design: SCN05C
Insert index count (NOI): 3
ISO: 16A3R020A14-SCN05C-C

Brand

PRAMET
