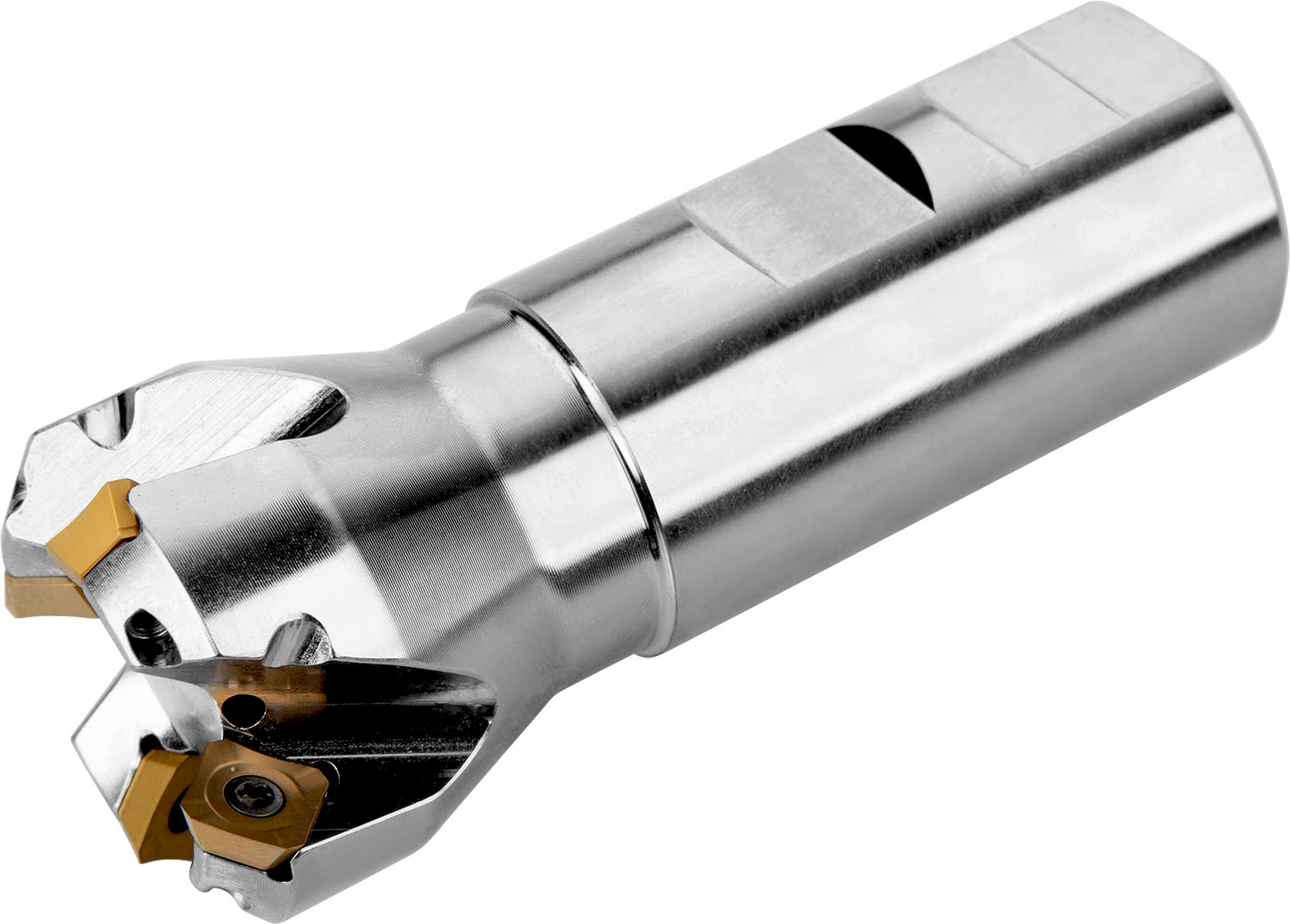

PRAMET 16E2R030A16-SZD07 Milling Cutters – HFC

Product Code: 16E2R030A16-SZD07

$407.88$370.80 Ex. GST

Product Code: 16E2R030A16-SZD07 SKU 16E2R030A16-SZD07 Categories CUTTING TOOLS (HSS & Carbide), H5 - Mill Cutter HFC, Milling

PRAMET 16E2R030A16-SZD07 Milling Cutters - HFC

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

High feed cutter with positve/negative geometry which utilises 2 of ZDCW 0703.. single-sided inserts, cutting diameter 16mm with 16,0mm parallel shank according to DIN 1835A, 100mm overall length, through coolant for face milling

Additional information

Weight	0.396 kg
Dimensions	Length 10cm x Width cm x Depth cm
barcode
Additional Information	Description: Value EAN number: 3603602955920 Product number (SAP): 86000728 Ordering code ANSI: 16E2R030A16-SZD07 Product Line: FEED ZD Gross weight – grams: 151.3 Cutting diameter maximum – millimeter (DCX): 16 mm Cutting diameter – millimeter (DC): 6 mm Overall length – millimeter (OAL): 100 mm Connection diameter – millimeter (DCON MS): 16 mm Usable Length – millimeter (LU): 30 mm Radial rake angle (GAMF): -5 Axial rake angle (GAMP): 8 Peripheral effective cutting edge count (ZEFP): 2 Rotational speed maximum (RPMX): 47400 Net weight – grams: 130 Cutter Design: SZD07 Insert index count (NOI): 2 ISO: 16E2R030A16-SZD07

Brand

PRAMET
