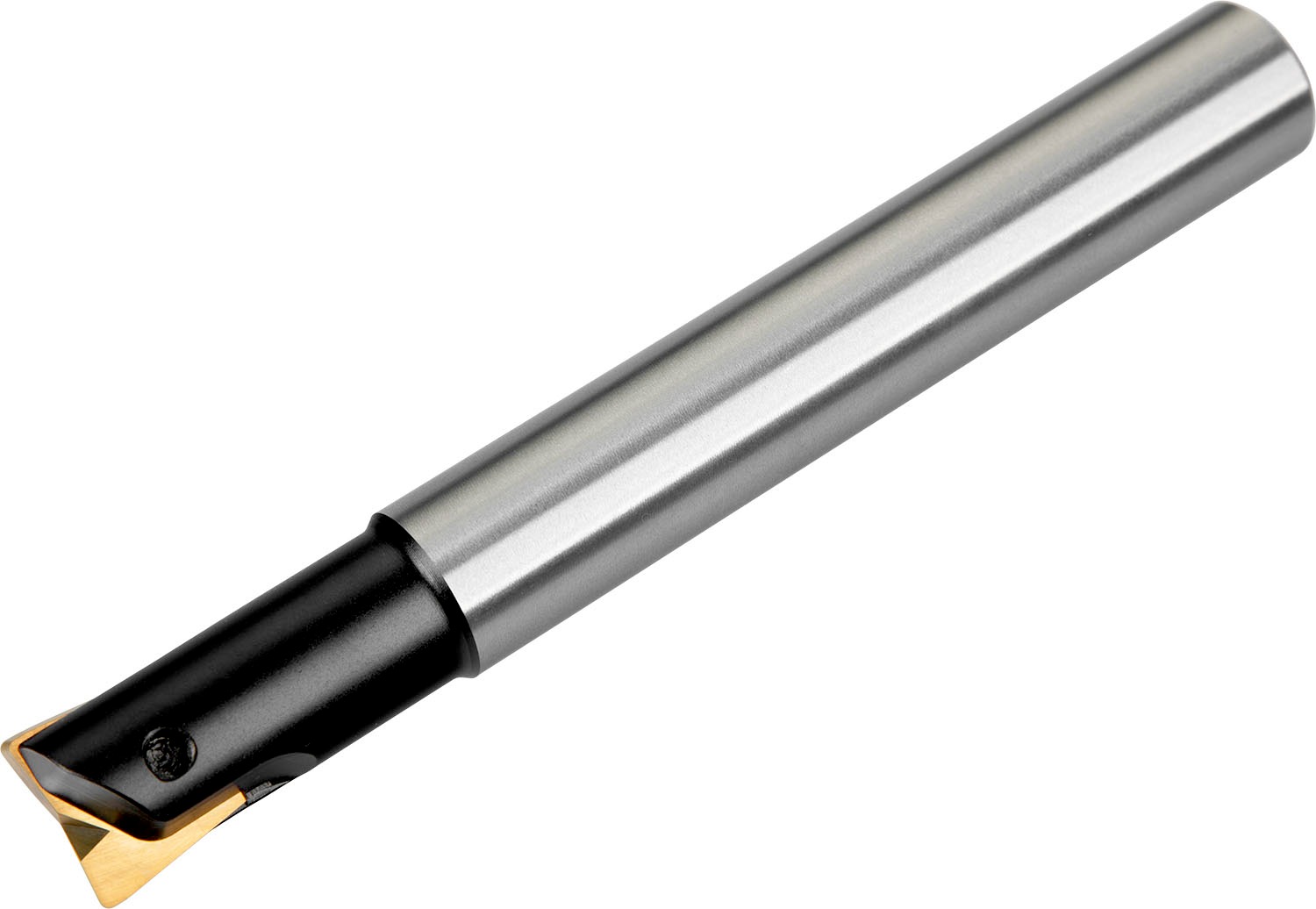

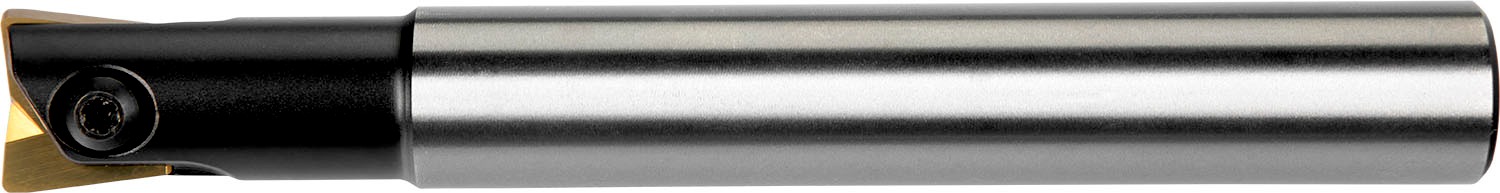

PRAMET 16K2R035A16-SLC16-A Milling cutters for D&M

Description

Copy end mill which utilises 1 of LC 16-KP or LC 16-KPF single-sided insert, cutting diameter 16mm with 16mm parallel shank according to DIN 1835A, 35mm functional and 140mm overall length for copy milling with a maximum depth of cut of 1.0-3.0mm

Additional information

Weight	0.2838 kg
Dimensions
barcode

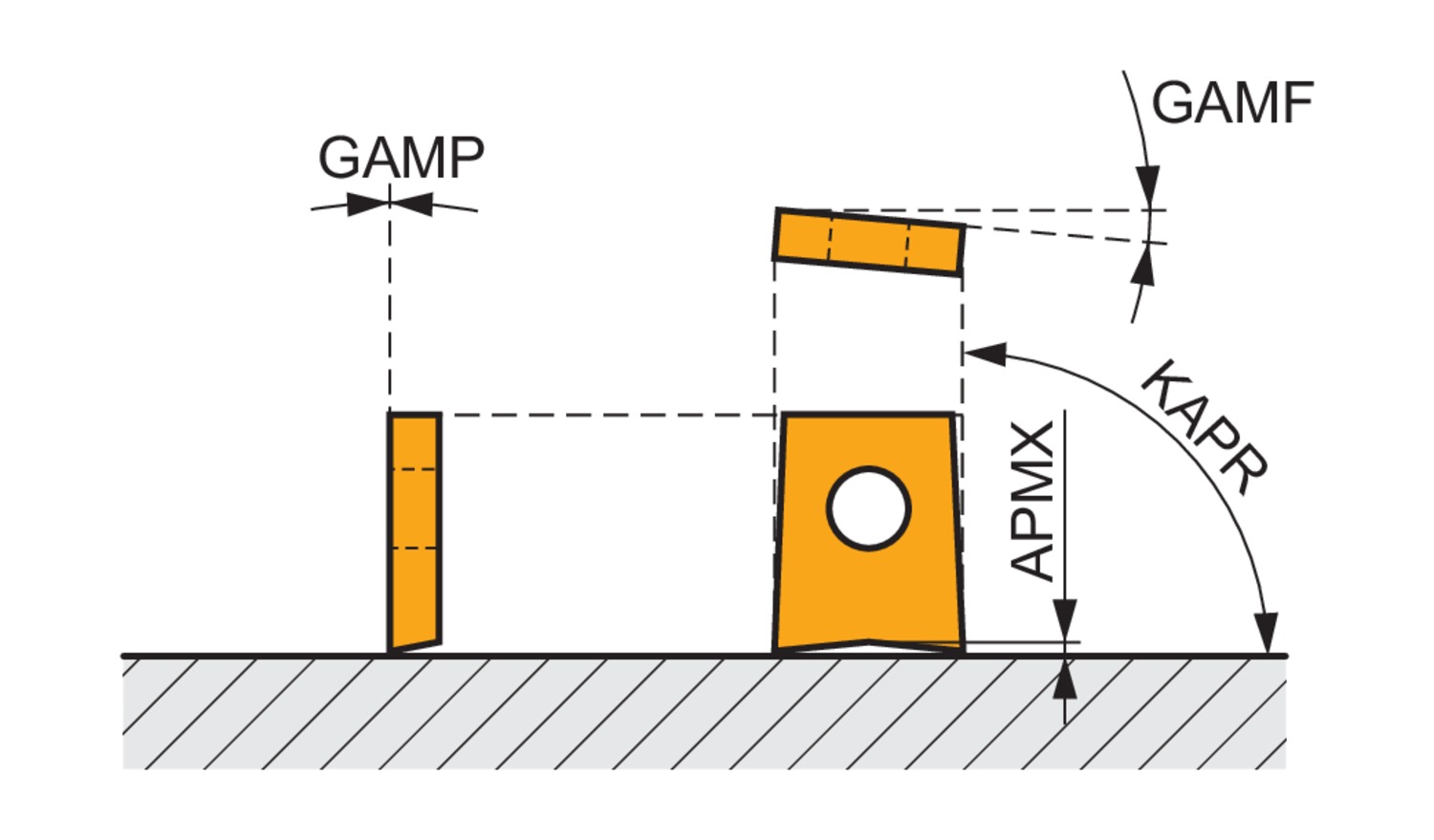

Additional Information	Description: Value EAN number: 3603602920645 Product number (SAP): 84000911 Ordering code ANSI: 16K2R035A16-SLC16-A Gross weight – grams: 326.1 Cutting diameter – millimeter (DC): 16 mm Overall length – millimeter (OAL): 140 mm Connection diameter – millimeter (DCON MS): 16 mm Usable Length – millimeter (LU): 35 mm Body diameter – millimeter (BD): 14 mm Peripheral effective cutting edge count (ZEFP): 2 Rotational speed maximum (RPMX): 22000 Net weight – grams: 200 Insert index count (NOI): 1 ISO: 16K2R035A16-SLC16-A
