PRAMET 16K2R065A20-SRC16-A Milling cutters for D&M

Product Code: 16K2R065A20-SRC16-A

$294.58$267.80 Ex. GST

Product Code: 16K2R065A20-SRC16-A SKU 16K2R065A20-SRC16-A Categories , ,
PRAMET 16K2R065A20-SRC16-A Milling cutters for D&M
PRAMET 16K2R065A20-SRC16-A Milling cutters for D&M - Image 2
PRAMET 16K2R065A20-SRC16-A Milling cutters for D&M - Image 3
PRAMET 16K2R065A20-SRC16-A Milling cutters for D&M - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

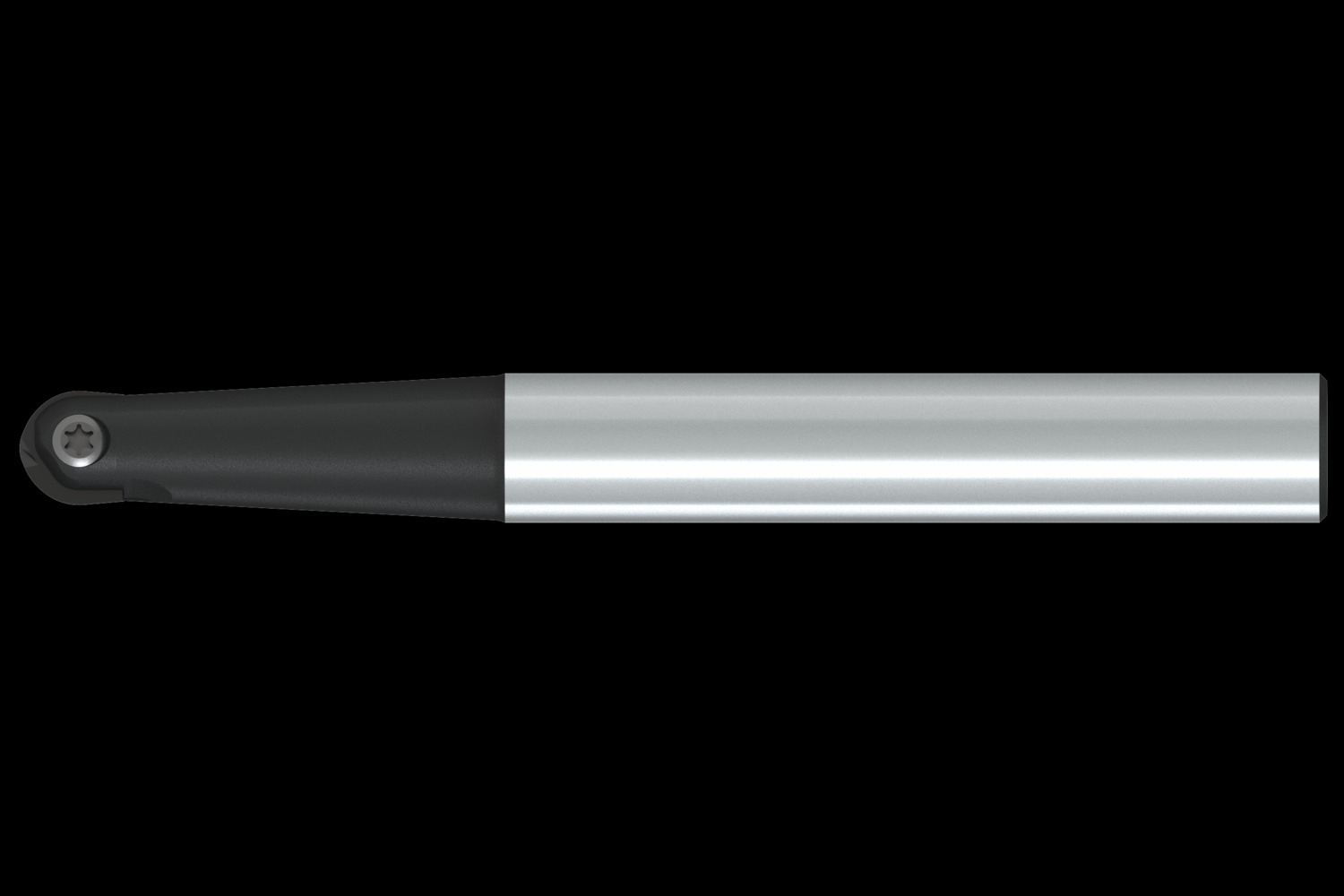

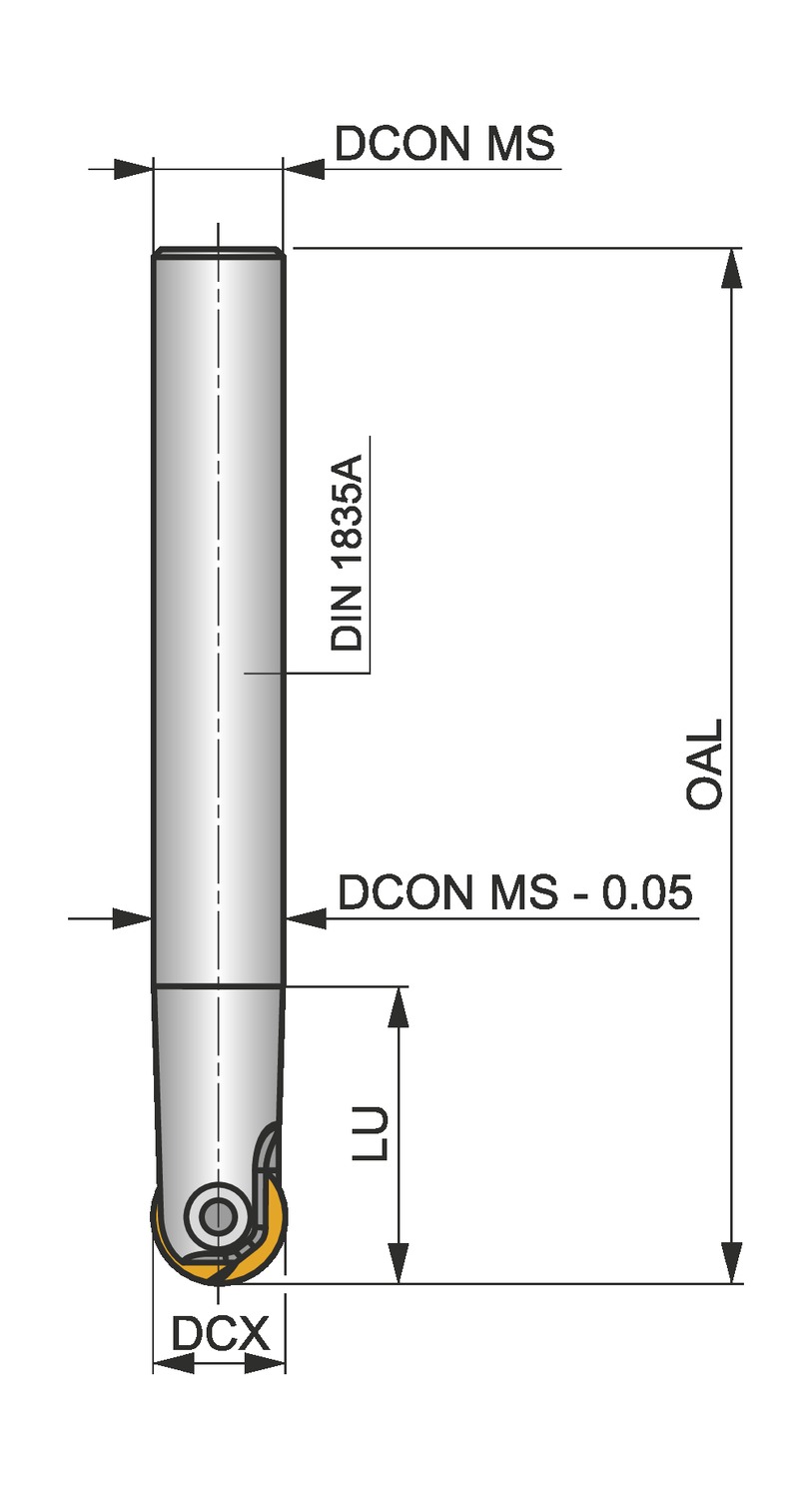

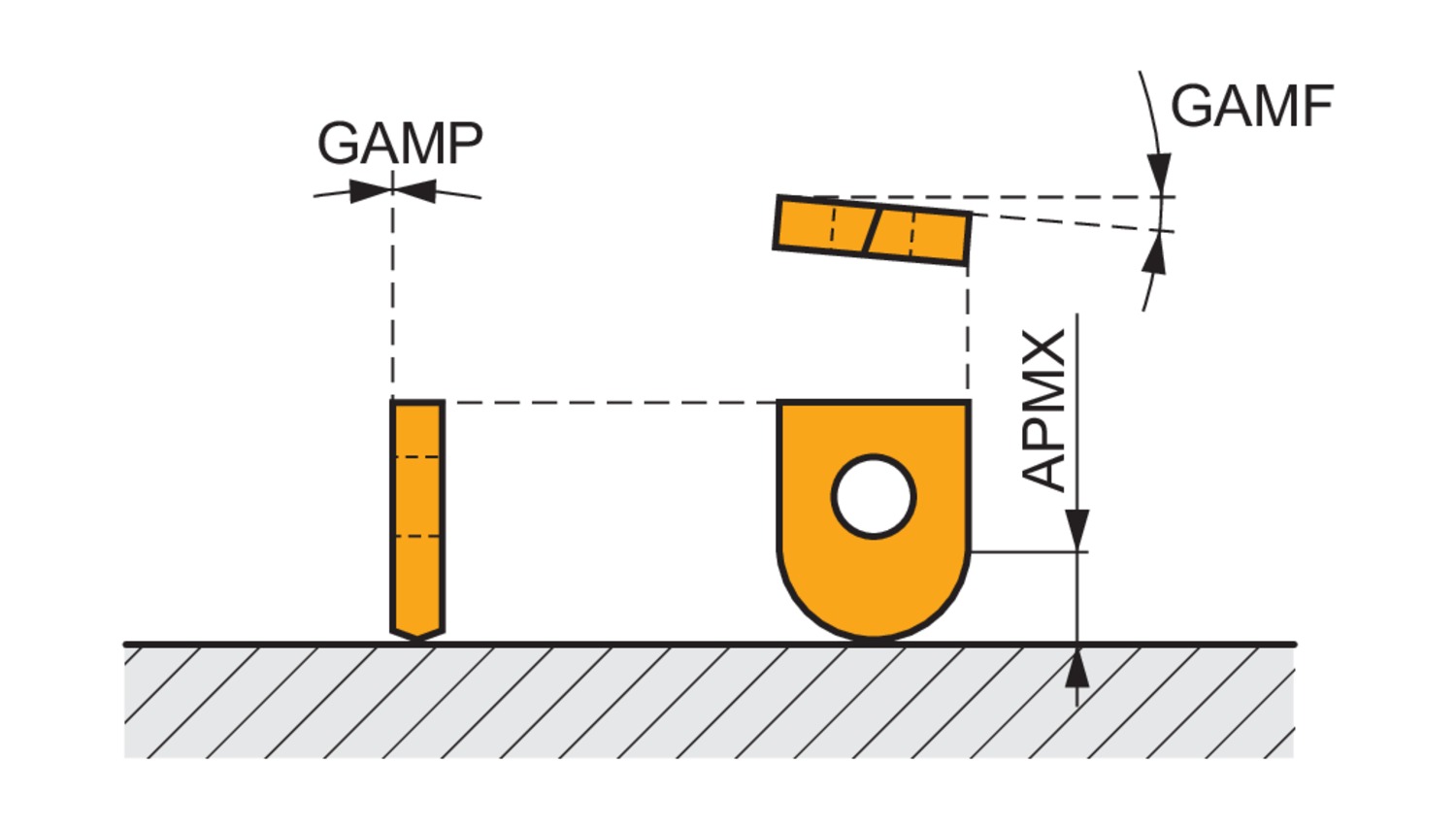

Copy end mill which utilises 1 of RC 16 or RC 16-F single-sided insert, cutting diameter 16mm with 20mm parallel shank according to DIN 1835A, 31.5mm functional and 175mm overall length for copy milling with a maximum depth of cut of 0.6-3.2mm

Additional information

Weight 0.286 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602920874
Product number (SAP): 84000942
Ordering code ANSI: 16K2R065A20-SRC16-A
Gross weight – grams: 492.8
Cutting diameter maximum – millimeter (DCX): 16 mm
Overall length – millimeter (OAL): 175 mm
Connection diameter – millimeter (DCON MS): 20 mm
Usable Length – millimeter (LU): 31.5 mm
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 22000
Net weight – grams: 300
Insert index count (NOI): 1
ISO: 16K2R065A20-SRC16-A

Brand

PRAMET
