PRAMET 16K2R35M08-SRC16-A Milling cutters for D&M

Product Code: 16K2R35M08-SRC16-A

$277.59$252.35 Ex. GST

Product Code: 16K2R35M08-SRC16-A SKU 16K2R35M08-SRC16-A Categories , ,

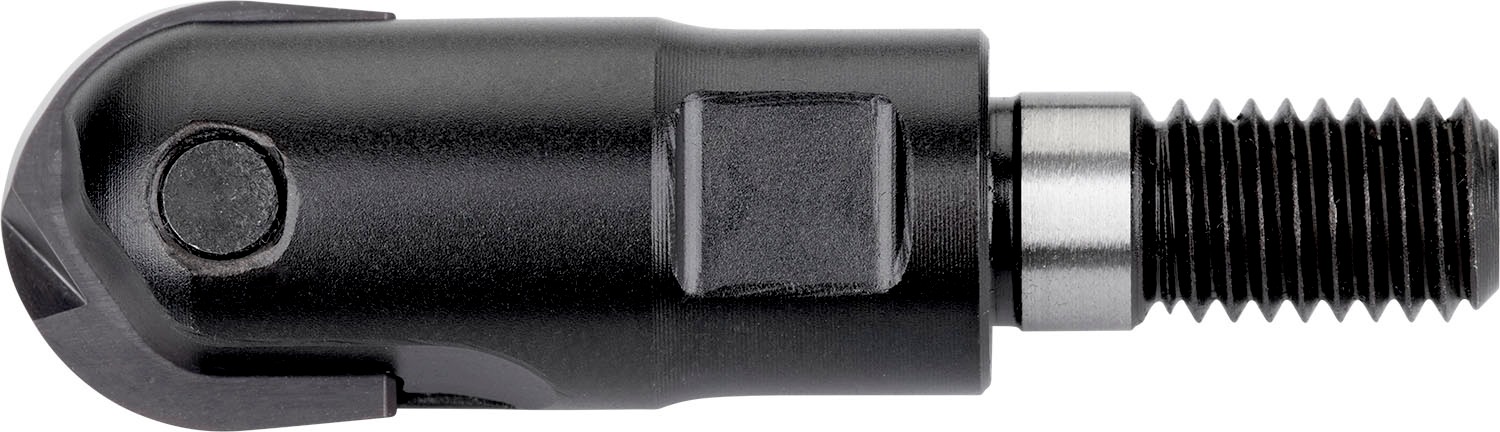

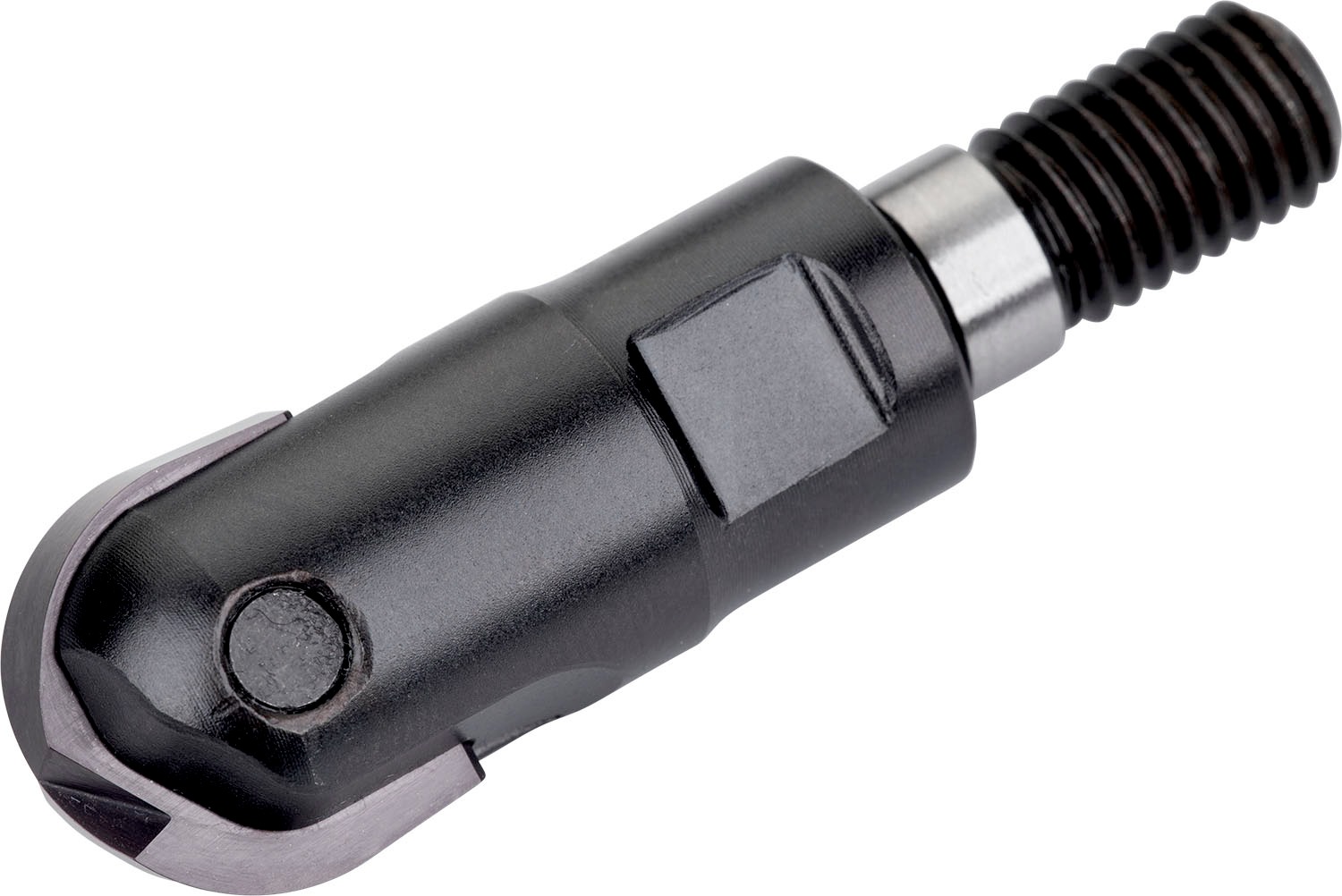

PRAMET 16K2R35M08-SRC16-A Milling cutters for D&M
PRAMET 16K2R35M08-SRC16-A Milling cutters for D&M - Image 2
PRAMET 16K2R35M08-SRC16-A Milling cutters for D&M - Image 3
PRAMET 16K2R35M08-SRC16-A Milling cutters for D&M - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Copy end mill which utilises 1 of RC 16 or RC 16-F single-sided insert, cutting diameter 16mm with M8 threaded shank for standard modular tool-holders, 35mm protrusion length for copy milling with a maximum depth of cut of 0.6-3.2mm

Additional information

Weight 0.2695 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602929389
Product number (SAP): 84002649
Ordering code ANSI: 16K2R35M08-SRC16-A
Gross weight – grams: 160.6

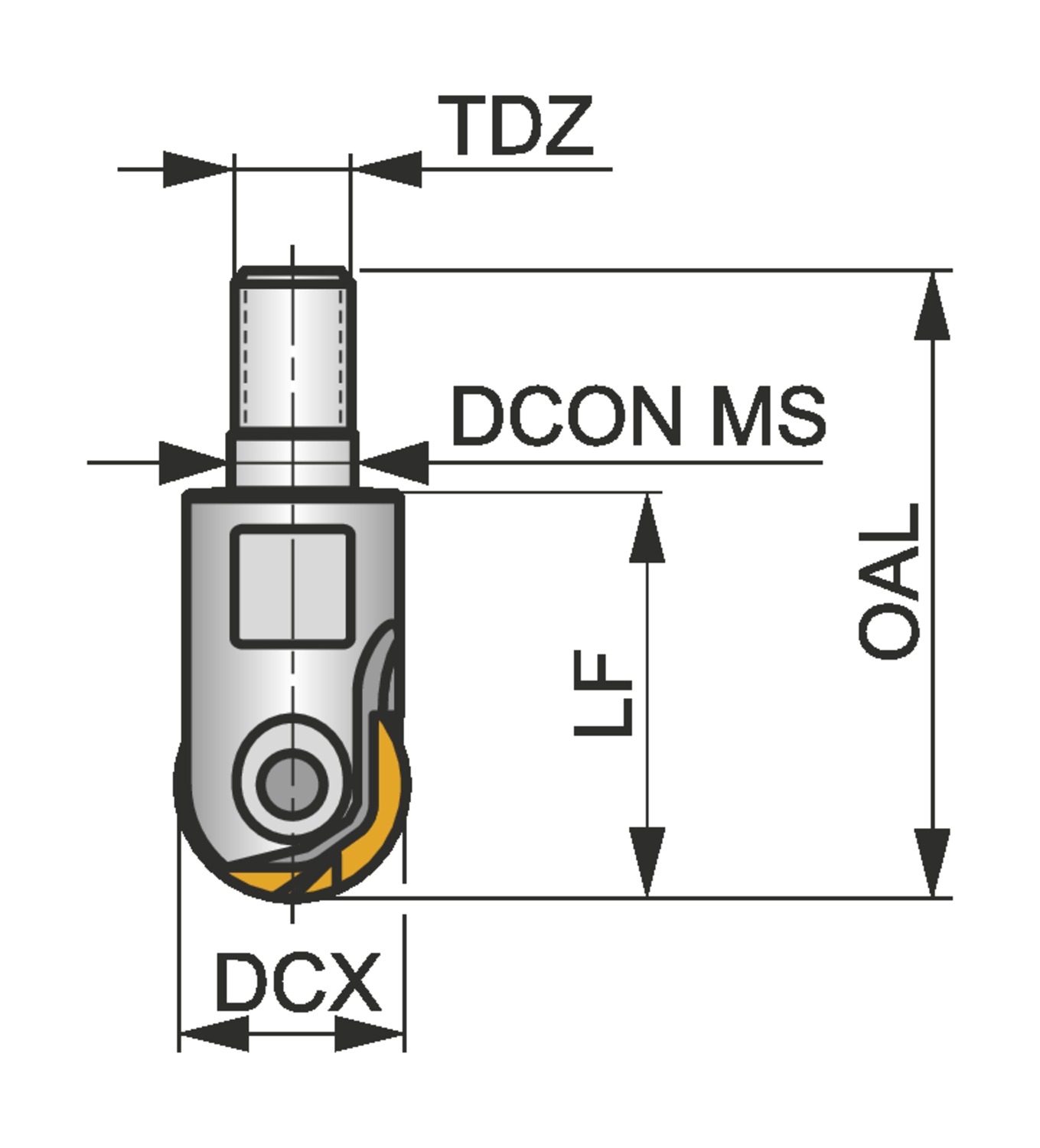

Cutting diameter maximum – millimeter (DCX): 16 mm
Overall length – millimeter (OAL): 53 mm
Connection diameter – millimeter (DCON MS): 8.5 mm
Functional length – millimeter (LF): 35 mm
Thread diameter size (TDZ): M8
Peripheral effective cutting edge count (ZEFP): 2
Net weight – grams: 160.6
Insert index count (NOI): 1
ISO: 16K2R35M08-SRC16-A

Brand

PRAMET
