PRAMET 16K3R050A16-CXP16 Milling Cutters-Side lok

Description

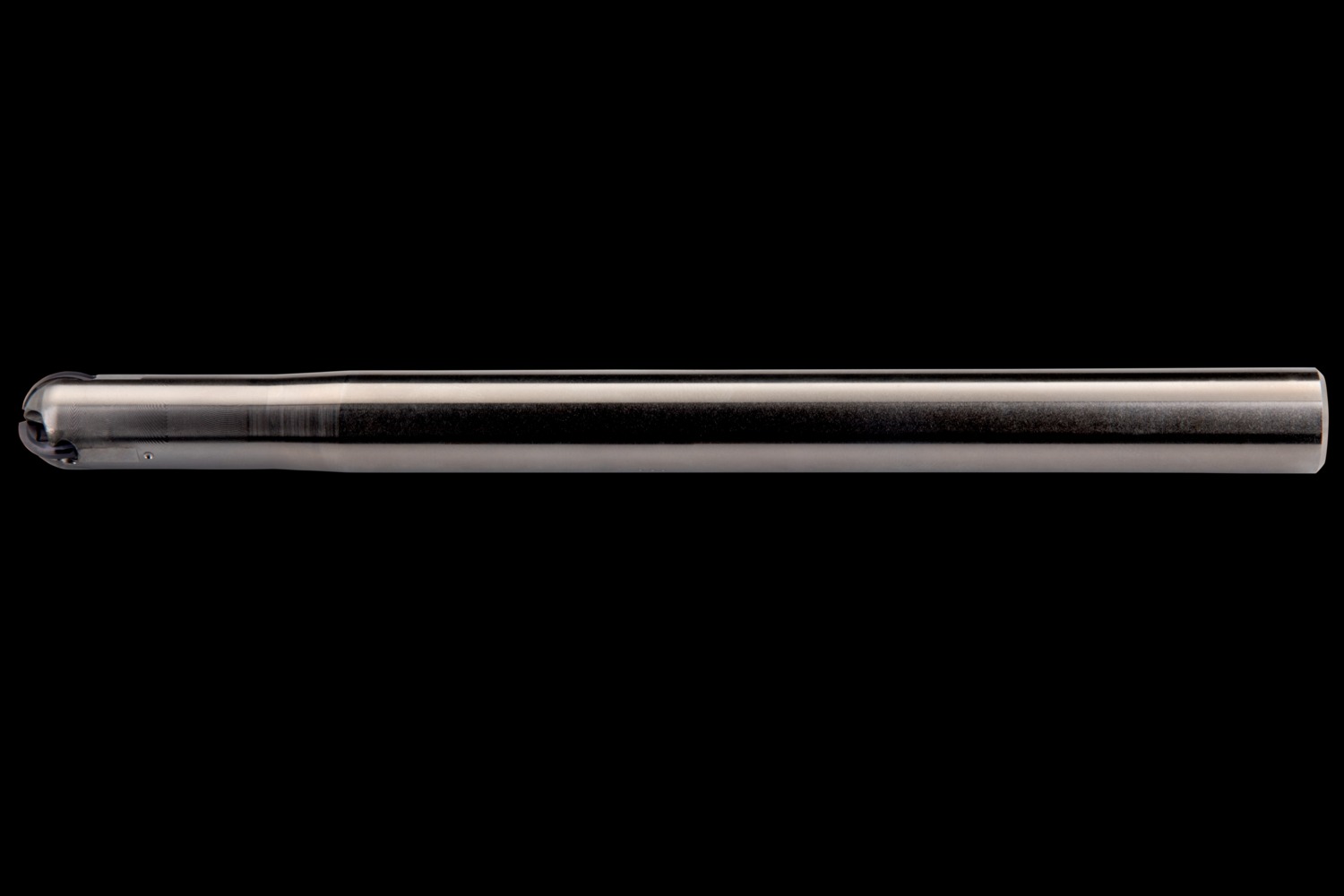

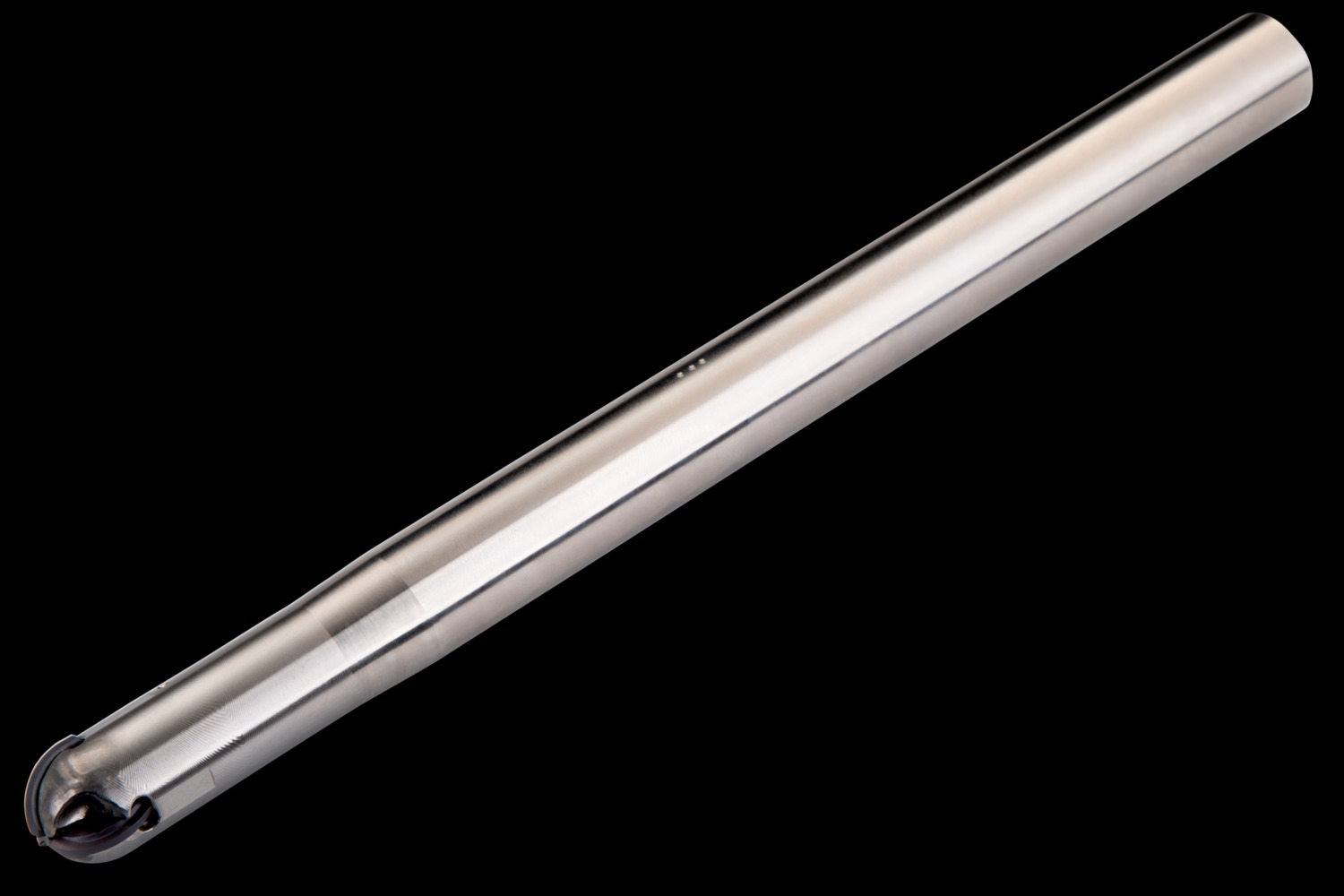

Copy end mill with double negative geometry which utilises 3 of XP 16.. single-sided inserts, cutting diameter 16mm with 16mm parallel shank according to DIN 1835A, 50mm functional and 200mm overall length for copy milling with a maximum depth of cut of 8mm

Additional information

Weight	0.6677 kg
Dimensions
barcode

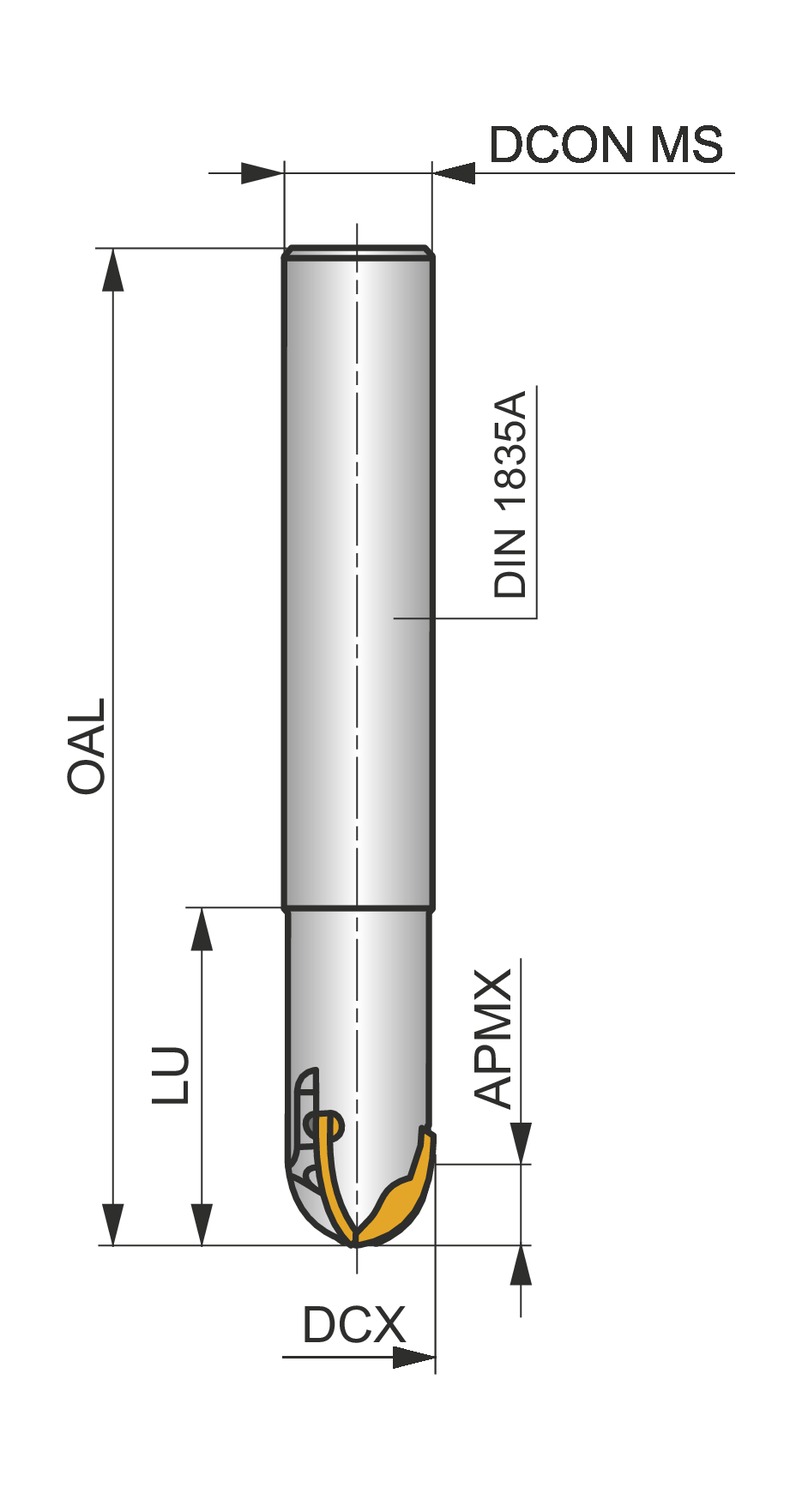

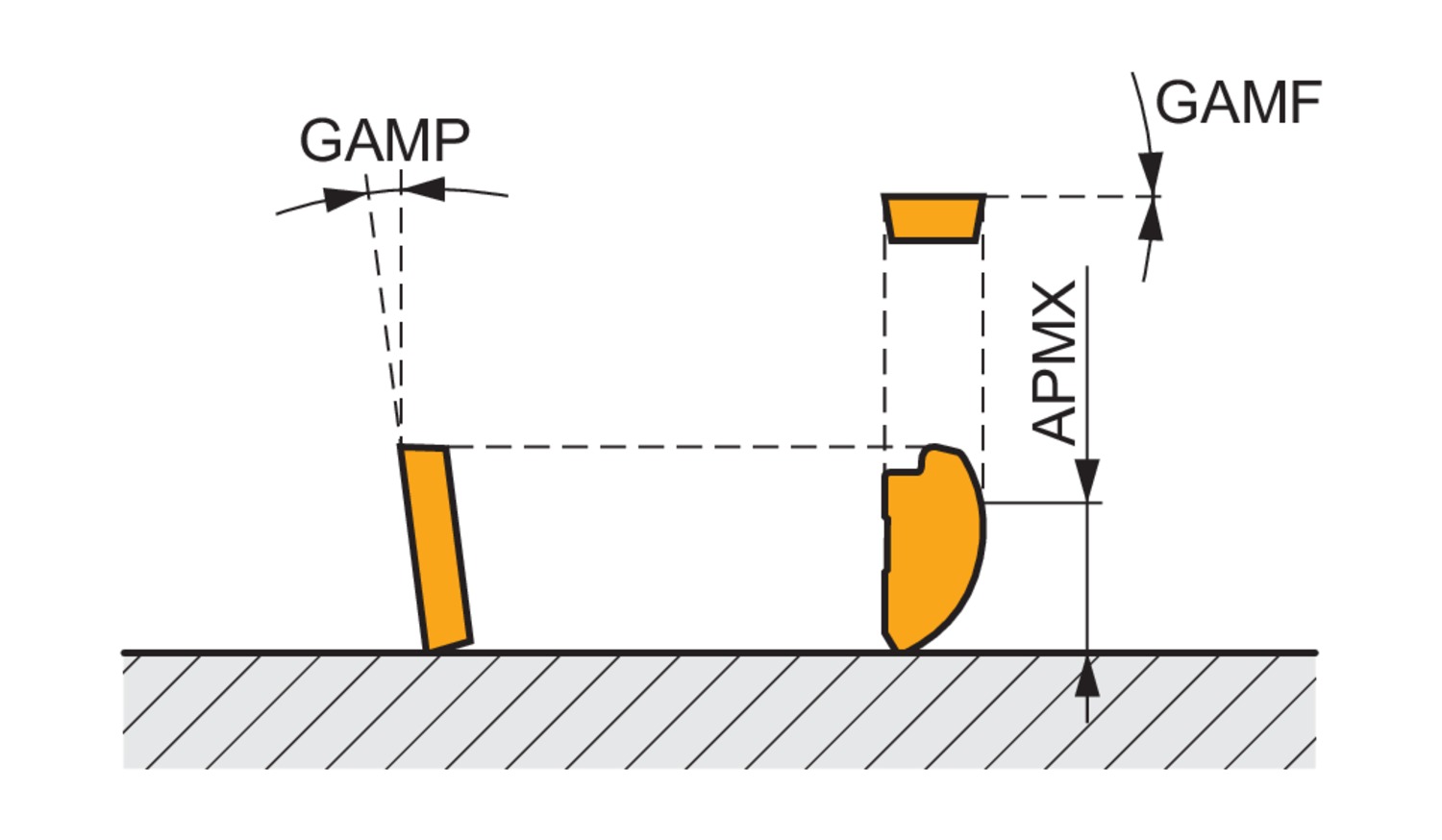

Additional Information	Description: Value EAN number: 3603602970695 Product number (SAP): 86007658 Ordering code ANSI: 16K3R050A16-CXP16 Product Line: MULTISIDE XP Gross weight – grams: 352 Cutting diameter maximum – millimeter (DCX): 16 mm Overall length – millimeter (OAL): 200 mm Connection diameter – millimeter (DCON MS): 16 mm Usable Length – millimeter (LU): 50 mm Depth of cut maximum – millimeter (APMX): 8 mm Radial rake angle (GAMF): 0 Axial rake angle (GAMP): -5 Peripheral effective cutting edge count (ZEFP): 3 Rotational speed maximum (RPMX): 22600 Net weight – grams: 352 Insert index count (NOI): 3 ISO: 16K3R050A16-CXP16

Need Technical Advice?

Description

Additional information

Brand

PRAMET
