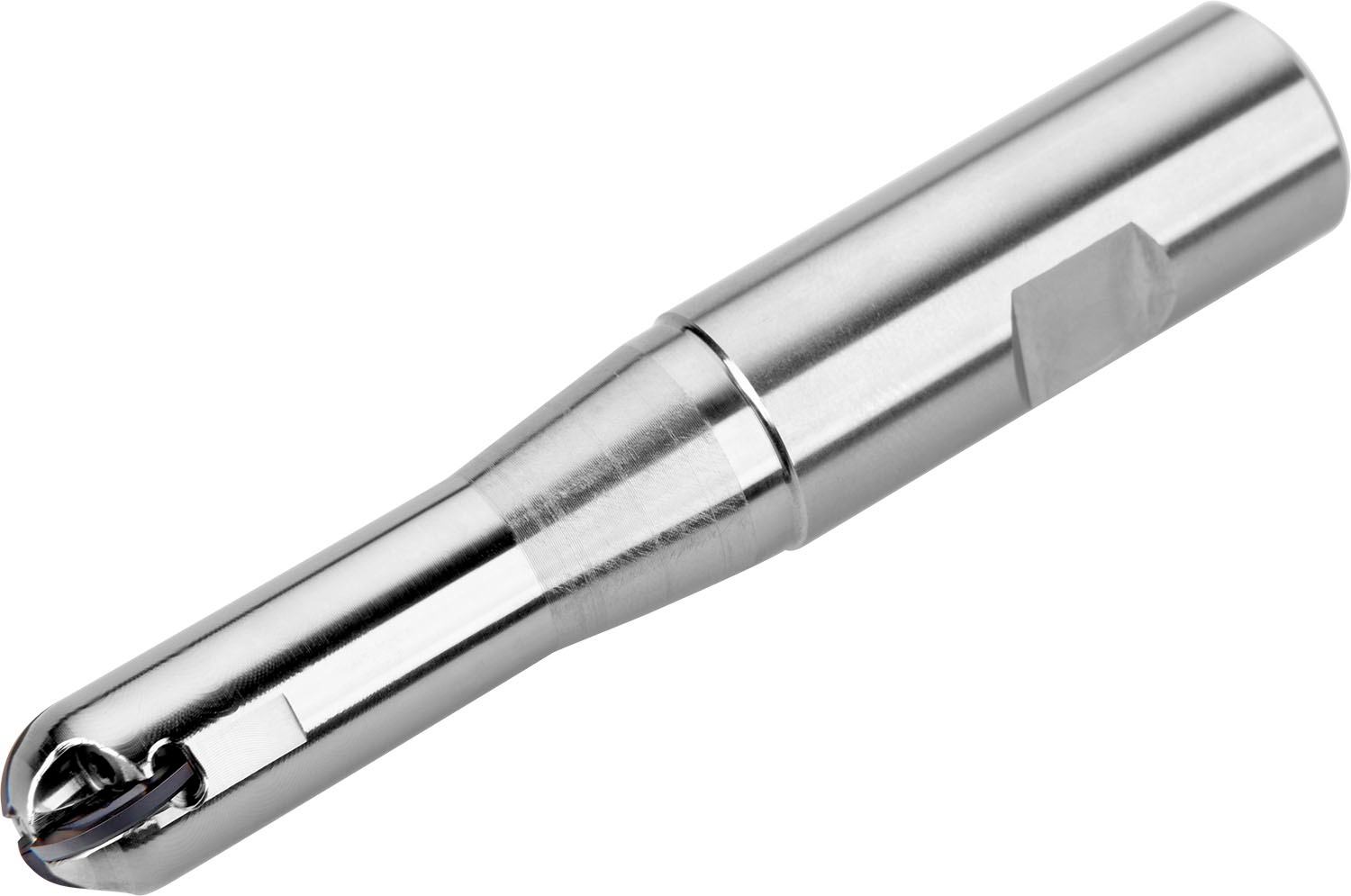

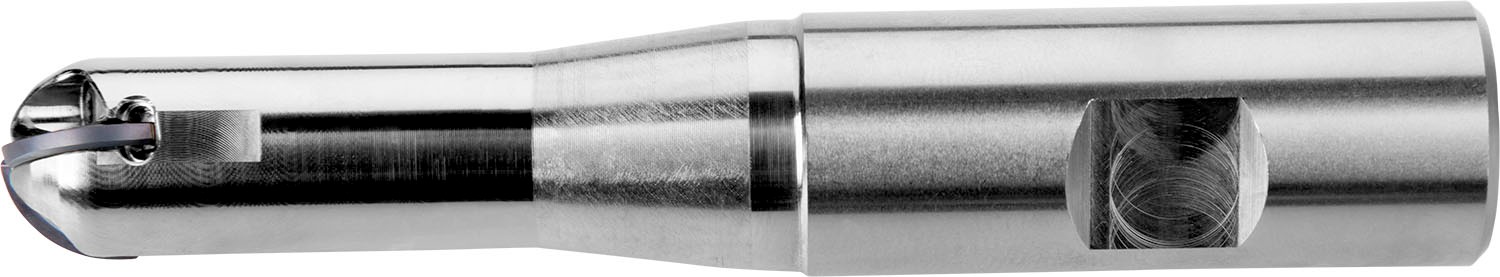

PRAMET 16K3R060B20-CXP16 Milling Cutters-Side lok

Description: Value
EAN number: 3603602970732
Product number (SAP): 86007662
Ordering code ANSI: 16K3R060B20-CXP16
Product Line: MULTISIDE XP
Gross weight – grams: 232.5

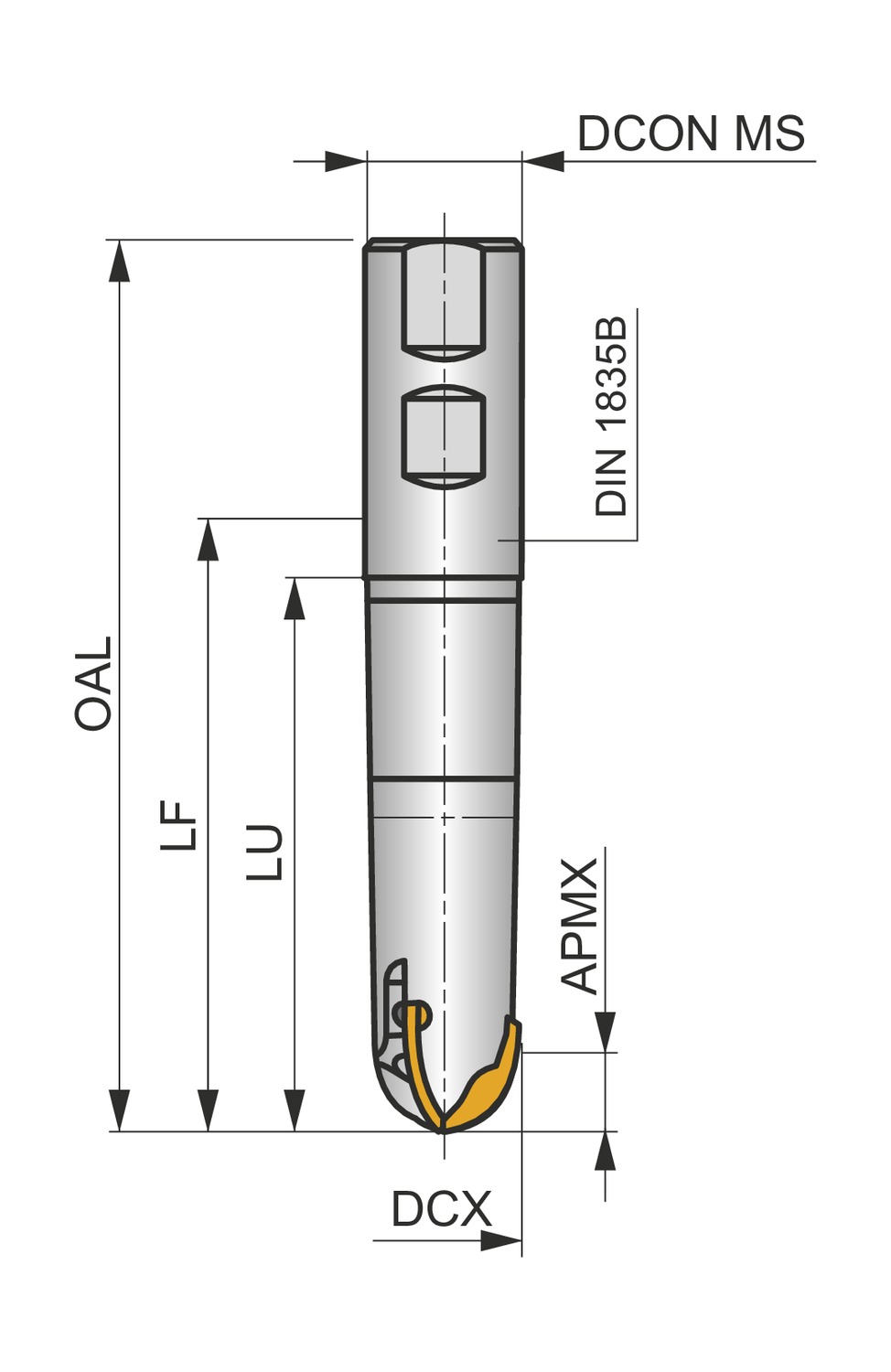

Cutting diameter maximum – millimeter (DCX): 16 mm
Overall length – millimeter (OAL): 111 mm
Connection diameter – millimeter (DCON MS): 20 mm
Usable Length – millimeter (LU): 60 mm
Functional length – millimeter (LF): 86.5 mm
Depth of cut maximum – millimeter (APMX): 8 mm

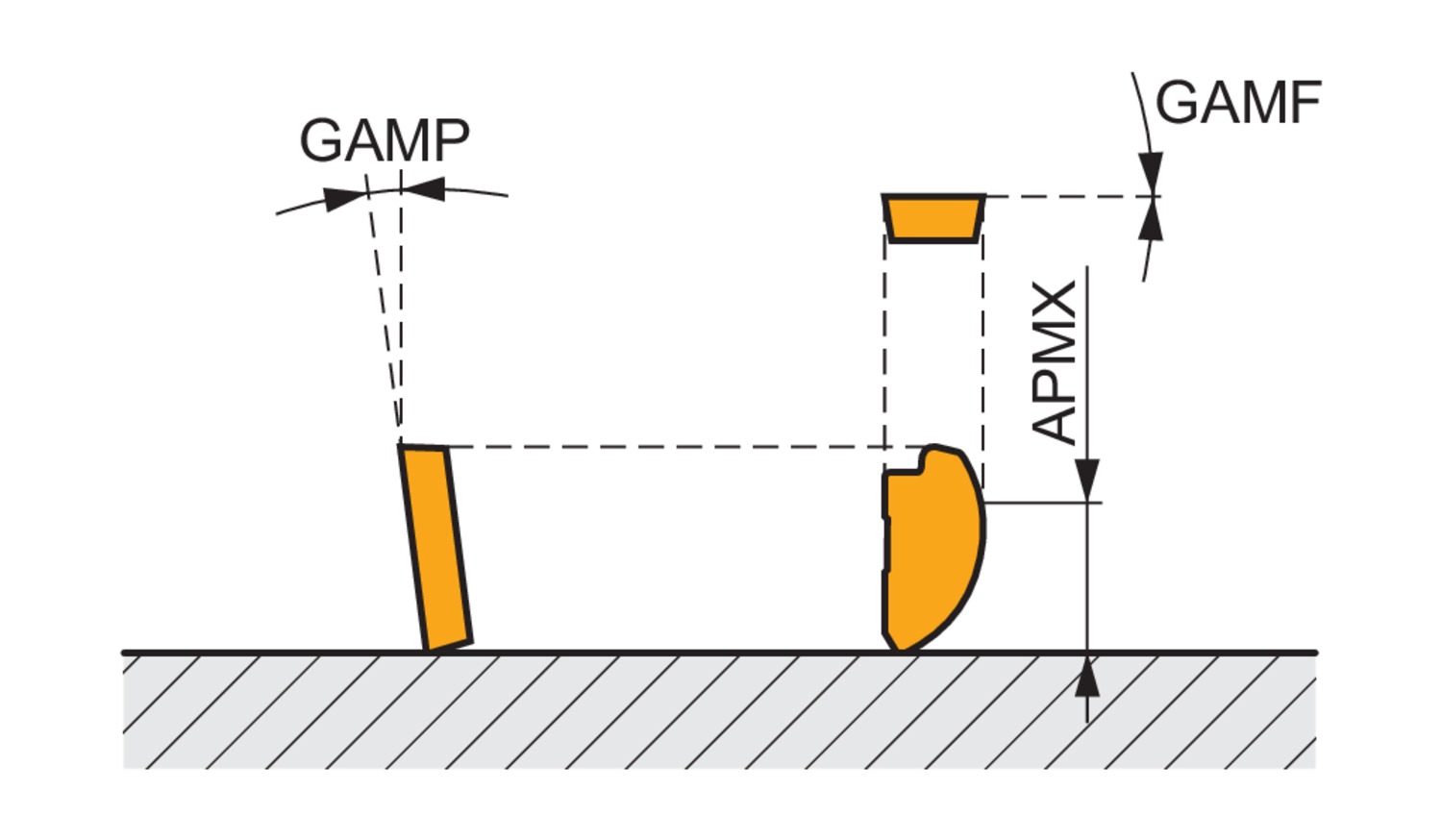

Radial rake angle (GAMF): 0
Axial rake angle (GAMP): -5
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 22600
Net weight – grams: 232.5
Insert index count (NOI): 3
ISO: 16K3R060B20-CXP16
