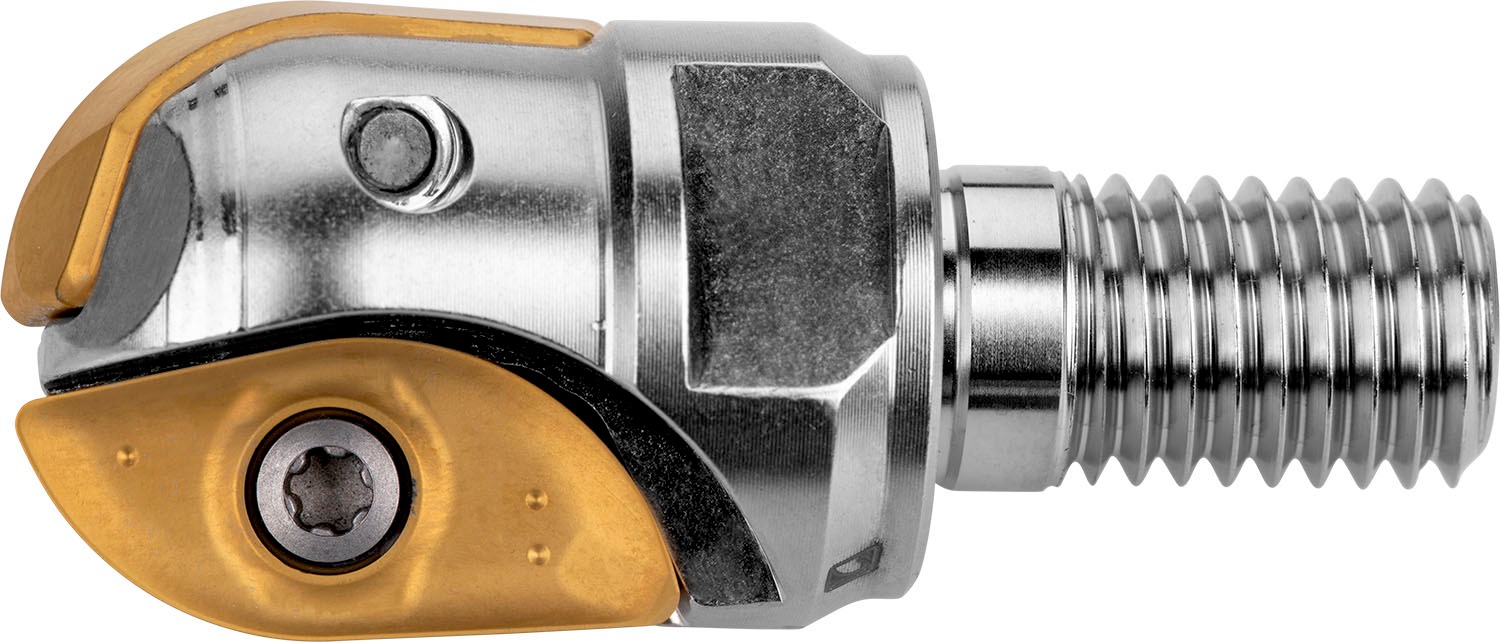

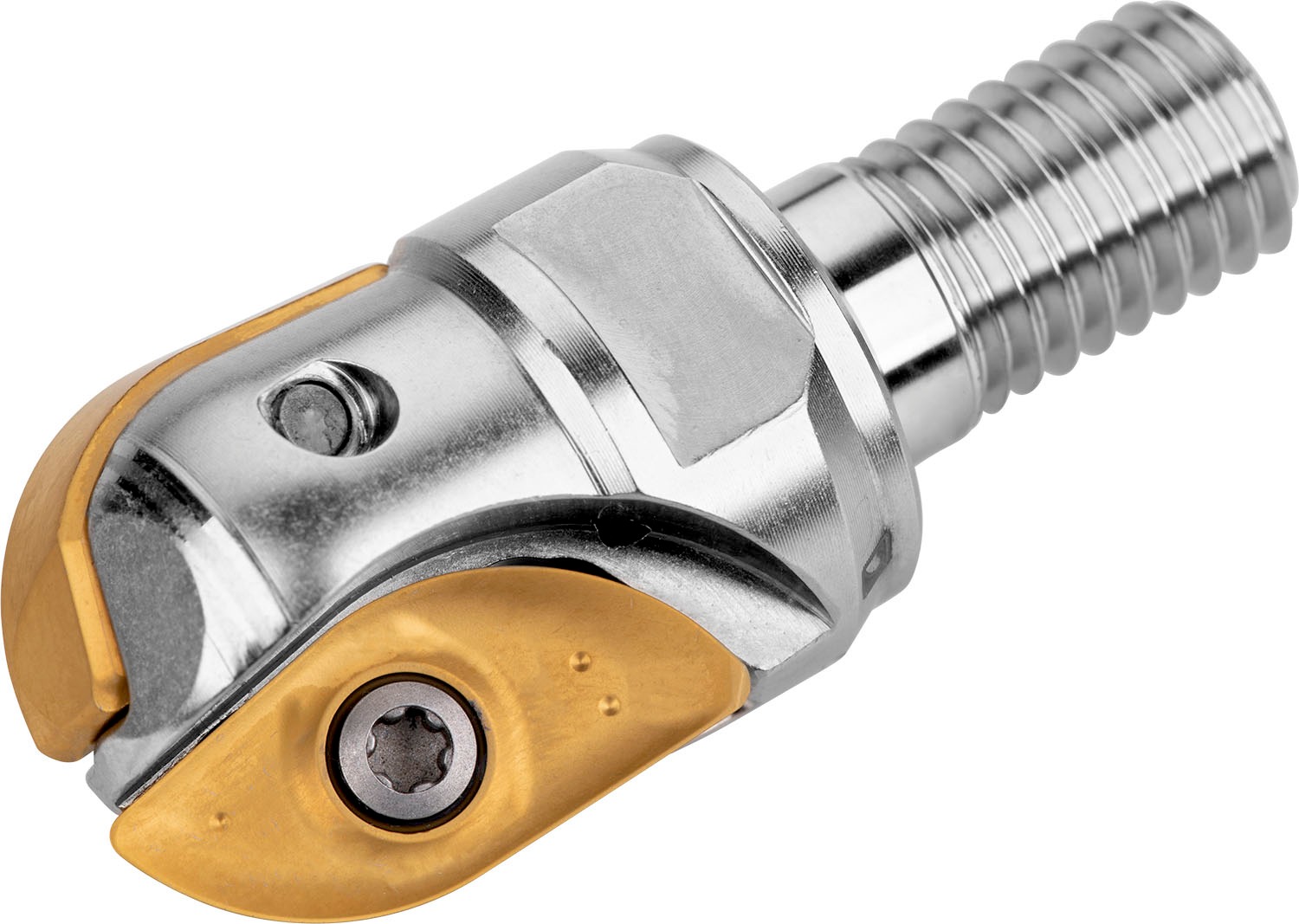

PRAMET 16L2R025M08-SZP16 Milling cutters for D&M

Description: Value
EAN number: 3603602970091
Product number (SAP): 86007511
Ordering code ANSI: 16L2R025M08-SZP16
Gross weight – grams: 49.6

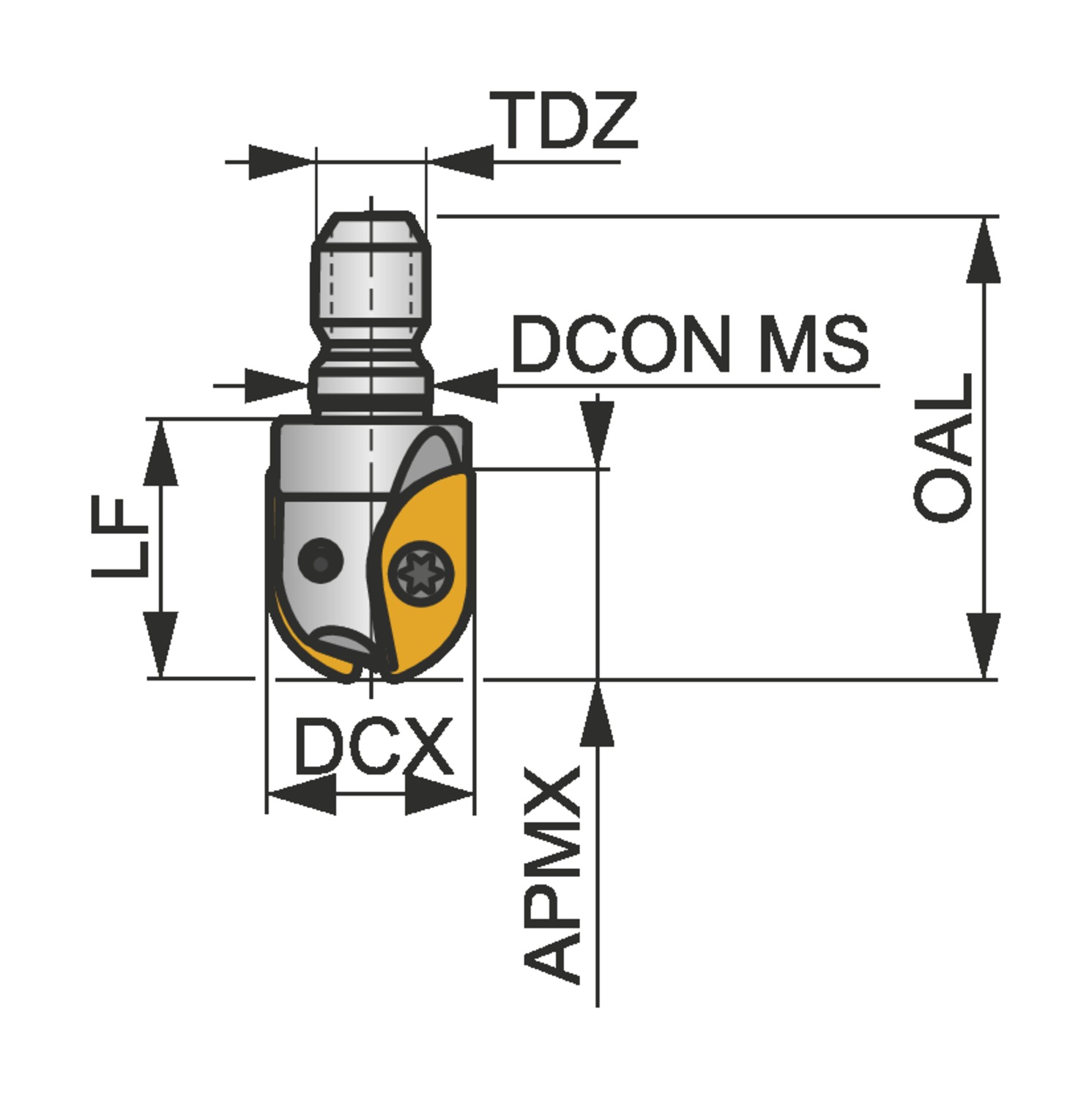

Cutting diameter maximum – millimeter (DCX): 16 mm
Connection diameter – millimeter (DCON MS): 8.5 mm
Functional length – millimeter (LF): 25 mm
Thread diameter size (TDZ): M8
Connection size code machine side (CZC MS): –

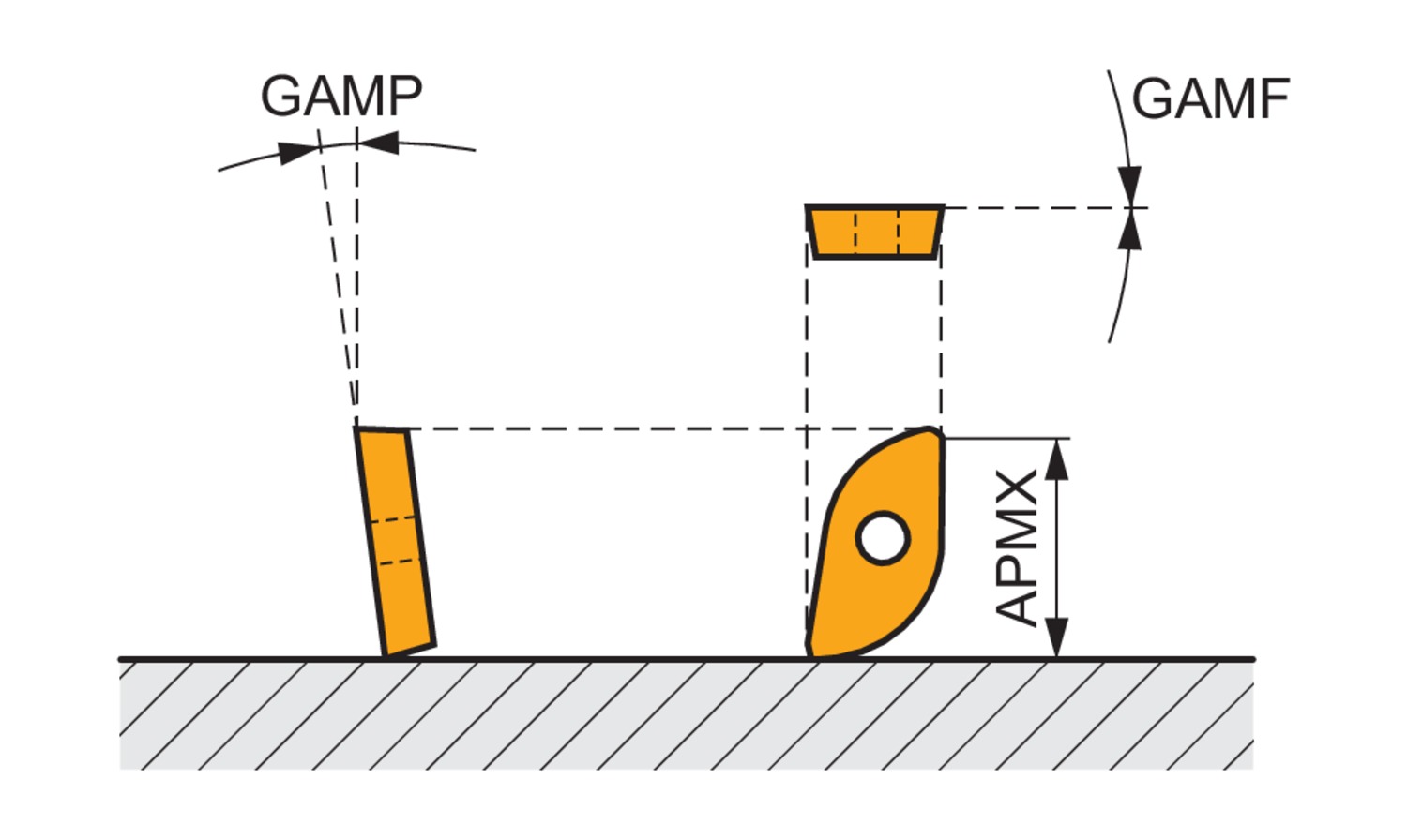

Depth of cut maximum – millimeter (APMX): 14.4 mm
Radial rake angle (GAMF): 0
Axial rake angle (GAMP): -10
Peripheral effective cutting edge count (ZEFP): 2
Net weight – grams: 48.8
Insert index count (NOI): 2
ISO: 16L2R025M08-SZP16
