PRAMET 16L2R060B20-SZP16-C Milling cutters for D&M

Description: Value
EAN number: 3603602969828
Product number (SAP): 86007484
Ordering code ANSI: 16L2R060B20-SZP16-C
Gross weight – grams: 212.2

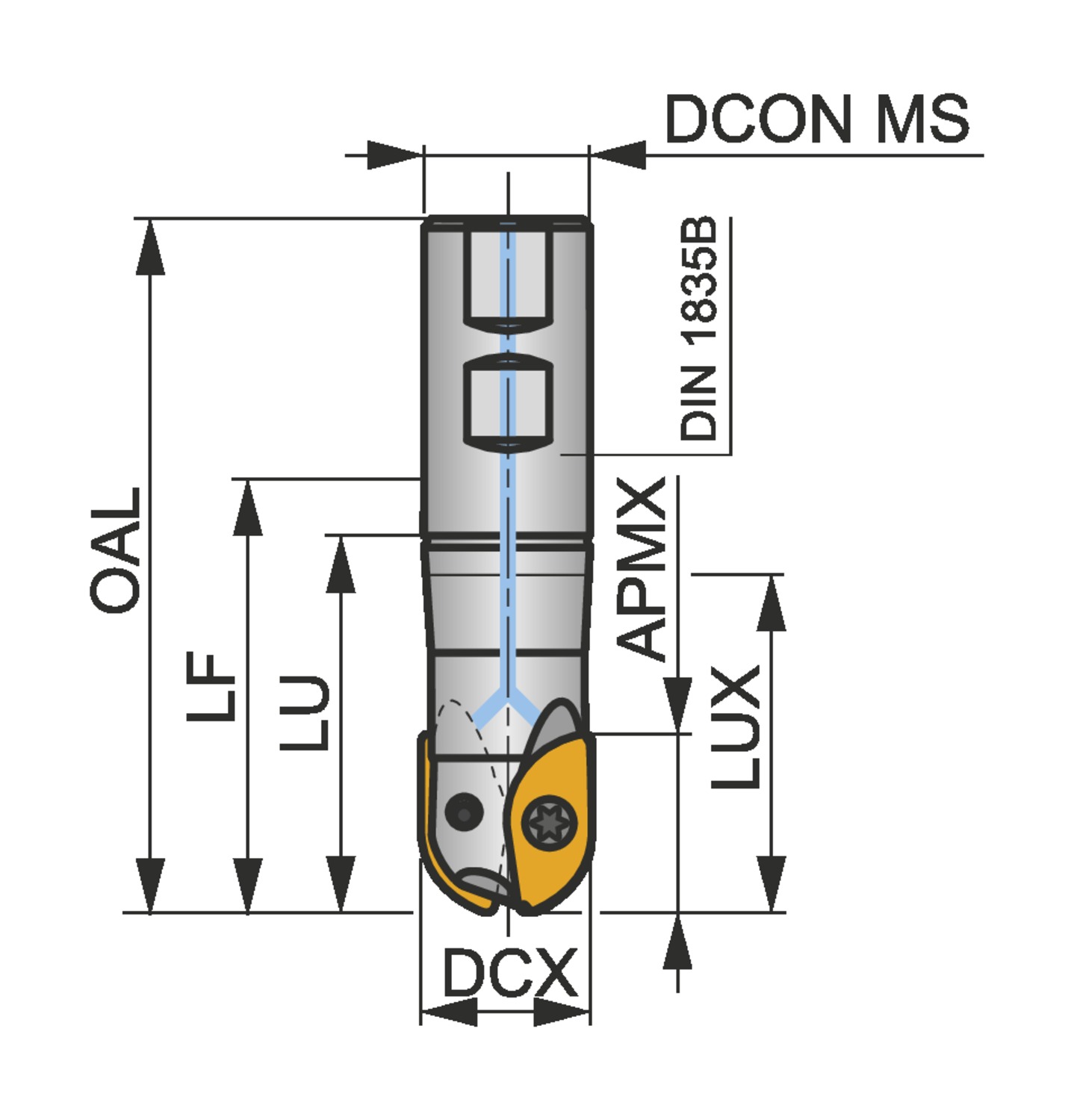

Cutting diameter maximum – millimeter (DCX): 16 mm
Overall length – millimeter (OAL): 111 mm
Connection diameter – millimeter (DCON MS): 20 mm
Usable Length – millimeter (LU): 60 mm
Usable Length maximum – millimeter (LUX): 32.9 mm
Functional length – millimeter (LF): 86.5 mm
Connection size code machine side (CZC MS): –
Depth of cut maximum – millimeter (APMX): 14.4 mm
Radial rake angle (GAMF): 0
Axial rake angle (GAMP): -10
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 20000
Net weight – grams: 210
Insert index count (NOI): 2
ISO: 16L2R060B20-SZP16-C
