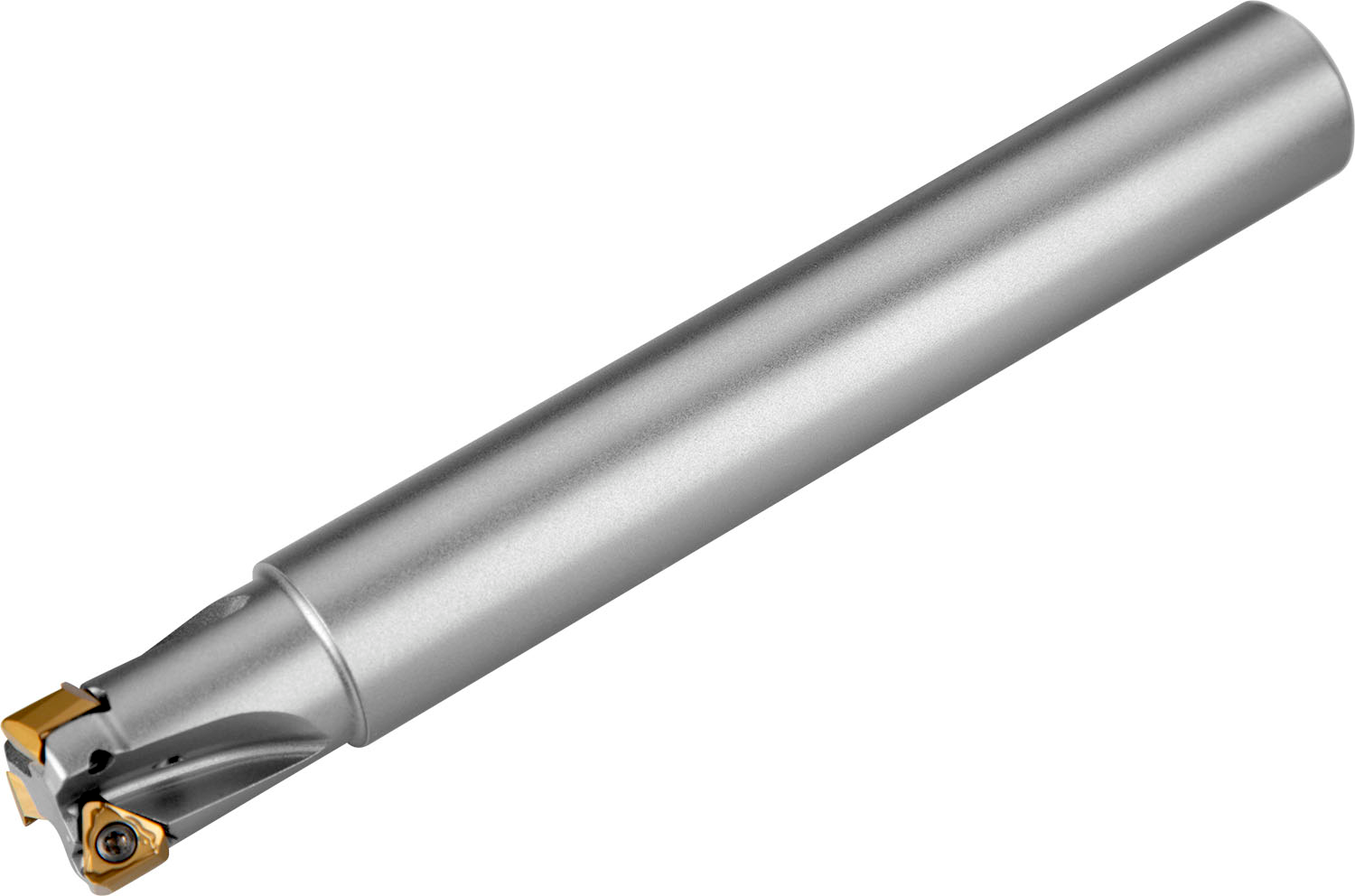

PRAMET 18A2R050A20-STN10-C Milling cutters with clamping by screw

Product Code: 18A2R050A20-STN10-C

$507.58$461.44 Ex. GST

Product Code: 18A2R050A20-STN10-C SKU 18A2R050A20-STN10-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder face mill with double negative geometry which utilises 2 of TNGX 1004.. double-sided inserts, cutting diameter 18mm with 90° approach angle and 20mm parallel shank according to DIN 1835A, 50mm functional and 180mm overall length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of 5.0mm

Additional information

Weight 0.4928 kg
Dimensions Length 18cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 3603603173088
Product number (SAP): 86027479
Ordering code ANSI: 18A2R050A20-STN10-C
Product Line: ECON TN
Gross weight – grams: 391.1
Cutting diameter – millimeter (DC): 18 mm
Overall length – millimeter (OAL): 180 mm
Connection diameter – millimeter (DCON MS): 20 mm
Usable Length – millimeter (LU): 50 mm
Radial rake angle (GAMF): -17.1
Axial rake angle (GAMP): -11
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 29100
Net weight – grams: 391.1
Cutter Design: STN10
Insert index count (NOI): 2
ISO: 18A2R050A20-STN10-C

Brand

PRAMET
