PRAMET 18E2R030A16-SBN10-C Carbide insert

Product Code: 18E2R030A16-SBN10-C

$512.12$465.56 Ex. GST

Product Code: 18E2R030A16-SBN10-C SKU 18E2R030A16-SBN10-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

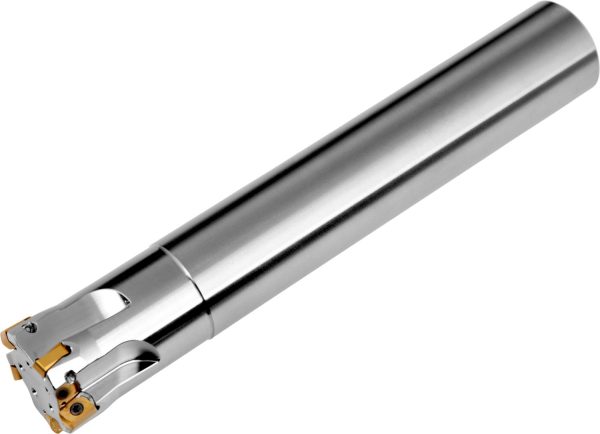

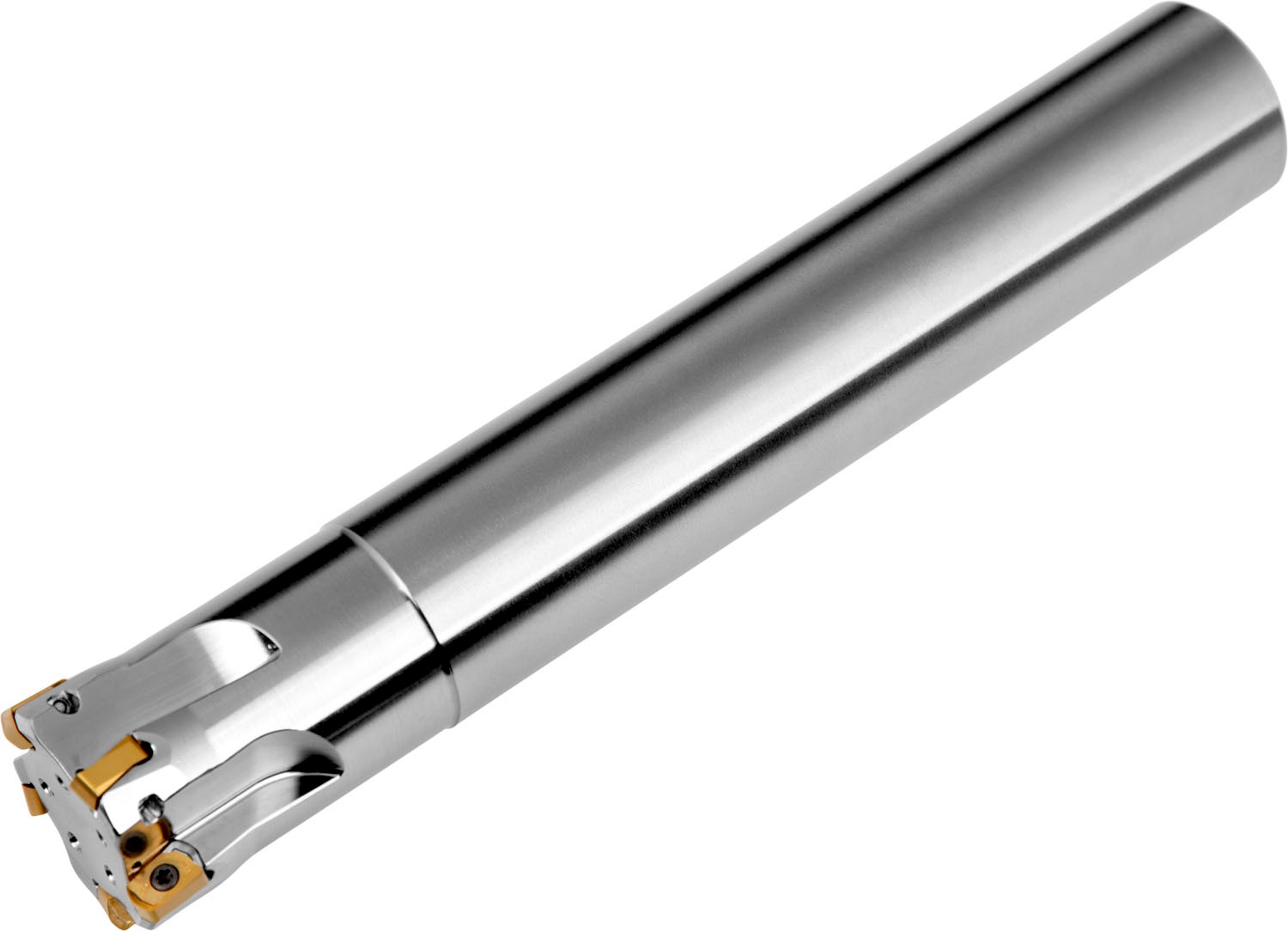

High feed cutter with double negative geometry which utilises 2 of BNGX 10T3.. or ANHX 10T3.. inserts, cutting diameter 18mm with 20° approach angle and 16mm parallel shank according to DIN 1835A, 30mm functional and 150mm overall length, through coolant for face milling, copy milling, shallow shoulder milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 1.0mm

Additional information

Weight 0.4972 kg
Dimensions Length 15cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 3603603388079
Product number (SAP): 86033402
Ordering code ANSI: 18E2R030A16-SBN10-C
Gross weight – grams: 230.8
Cutting diameter maximum – millimeter (DCX): 18 mm
Cutting diameter – millimeter (DC): 11.4 mm
Overall length – millimeter (OAL): 150 mm
Connection diameter – millimeter (DCON MS): 16 mm
Usable Length – millimeter (LU): 30 mm
Radial rake angle (GAMF): -11
Axial rake angle (GAMP): -10
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 29200
Net weight – grams: 229
Cutter Design: SBN10
Insert index count (NOI): 2
ISO: 18E2R030A16-SBN10-C

Brand

PRAMET
