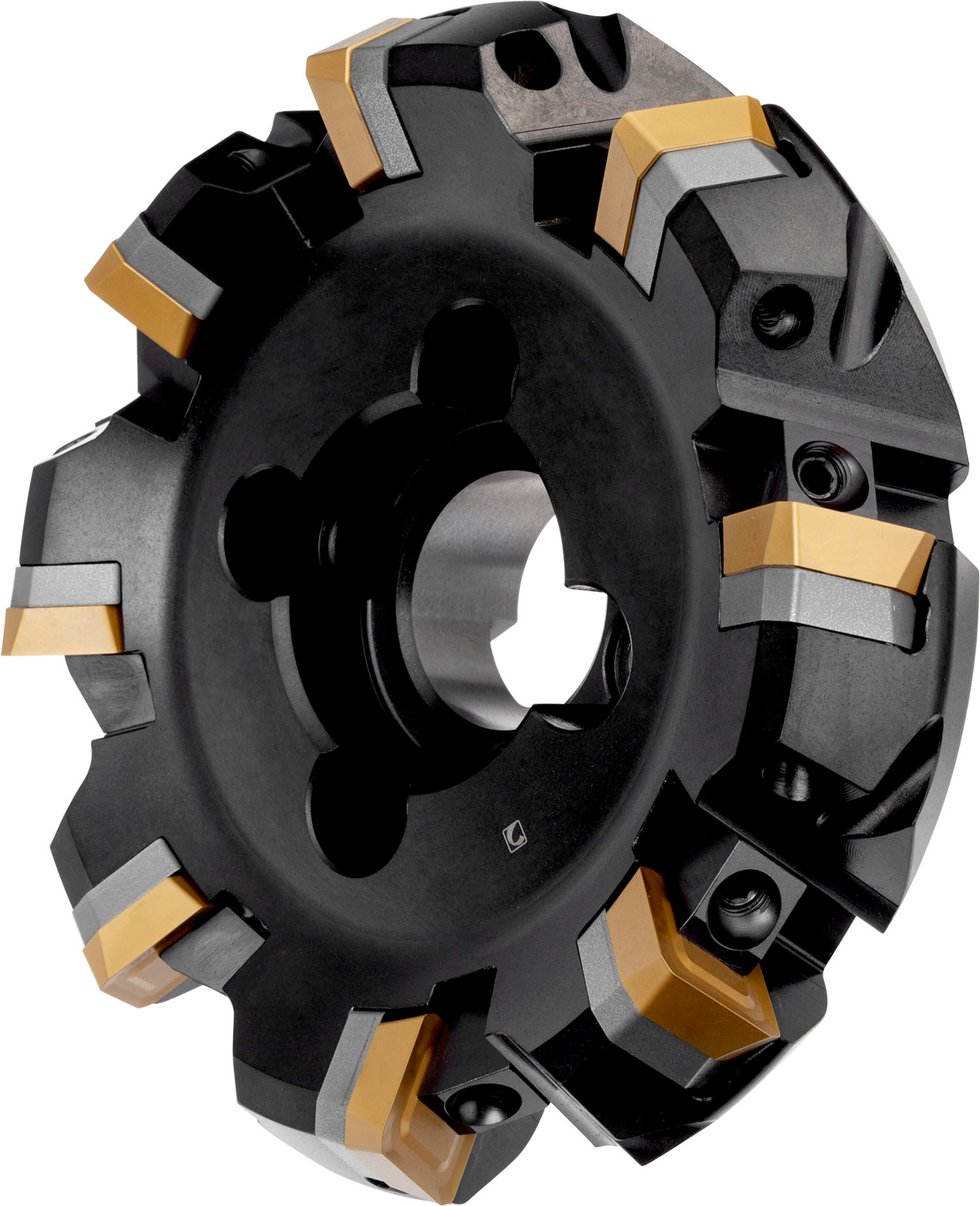

PRAMET 200C08R-F60SB22X Milling cutters with clamping by wedge

Product Code: 200C08R-F60SB22X

$3,461.32$3,146.65 Ex. GST

Product Code: 200C08R-F60SB22X SKU 200C08R-F60SB22X Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Face mill with positve/negative geometry which utilises 8 of SBKX 2207DZ.. or SBMR 2207DZ.. single-sided inserts, cutting diameter 200 to maximum 217.9mm with 60° approach angle and 60mm connection bore according to DIN 8030-C, 63mm protrusion length and differential pitch for face milling with a maximum depth of cut of 15.0mm

Additional information

Weight 3.3605 kg
barcode
Additional Information

Description: Value
EAN number: 3603602950550
Product number (SAP): 84008355
Ordering code ANSI: 200C08R-F60SB22X
Product Line: ROUGH SB
Gross weight – grams: 10763
Cutting diameter – millimeter (DC): 200 mm
Cutting diameter maximum – millimeter (DCX): 217.9 mm
Functional length – millimeter (LF): 63 mm
Connection diameter – millimeter (DCON MS): 60 mm
Diameter bolt circle 1 – millimeter (DBC1): 101.6 mm
Keyway width – millimeter (KWW): 25.7 mm
Keyway depth – millimeter (KWD): 14 mm
Radial rake angle (GAMF): -9
Axial rake angle (GAMP): 9
Peripheral effective cutting edge count (ZEFP): 8
Cutting pitch differential (CPDF): Yes
Net weight – grams: 10590
Cutter Design: FSB22X
Insert index count (NOI): 8
ISO: 200C08R-F60SB22X

Brand

PRAMET
