PRAMET 200C12R-S45ON06-C Milling cutters with clamping by screw

Product Code: 200C12R-S45ON06-C

$3,030.78$2,755.25 Ex. GST

Product Code: 200C12R-S45ON06-C SKU 200C12R-S45ON06-C Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

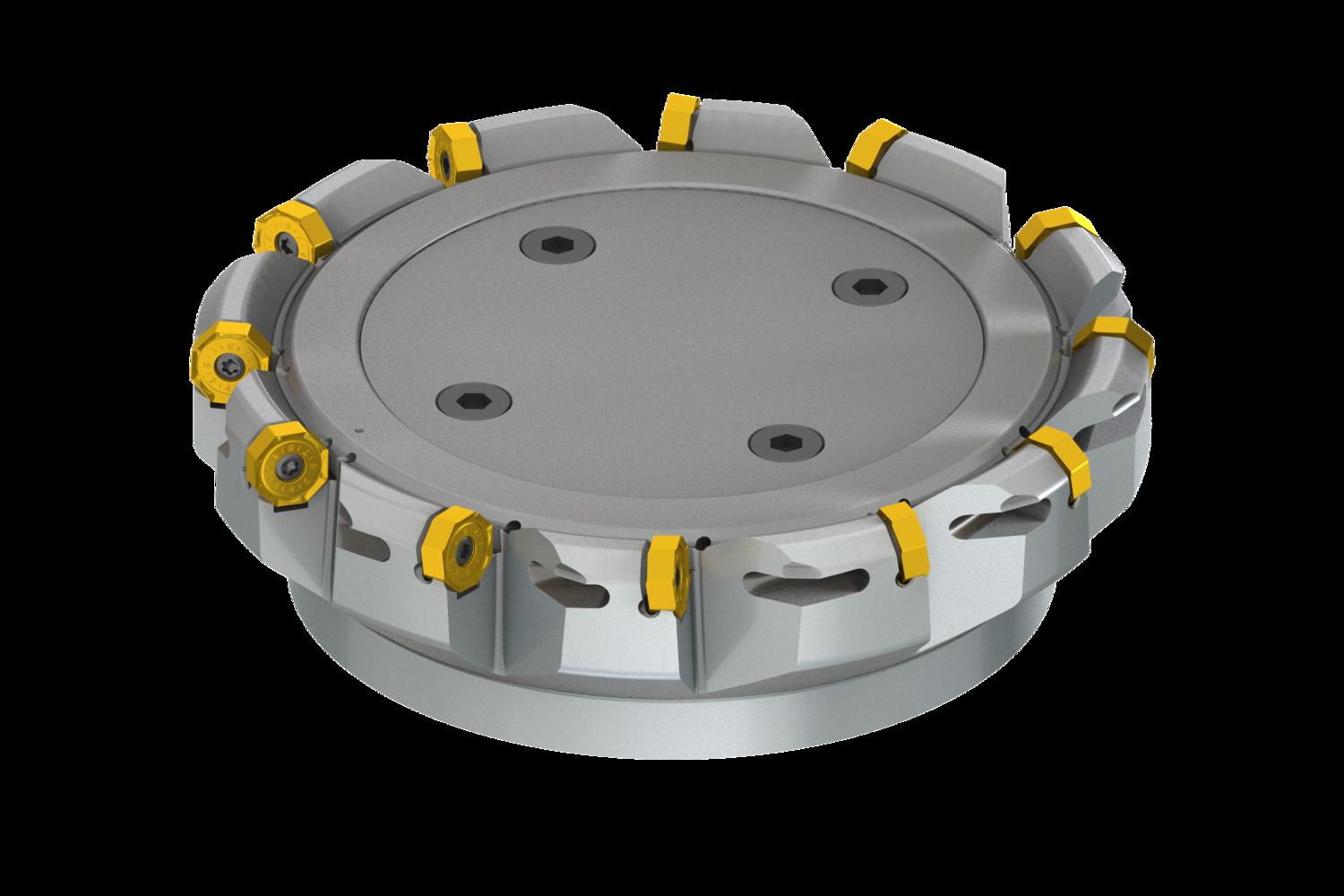

Face mill with double negative geometry which utilises 12 of ONMX 0605.., ONMX 0605..-W or SNMX 1705.. double-sided inserts, cutting diameter 200mm to maximum 210.8mm with 43° approach angle and 60mm connection bore according to DIN 8030-C, 63mm functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of ON.. 4mm, SN.. 7mm

Additional information

Weight 9.0600 kg
barcode

3603604105422

Additional Information

Description: Value
EAN number: 3603604105422
Product number (SAP): 86042981
Ordering code ANSI: 200C12R-S45ON06-C
Gross weight – grams: 11856.8

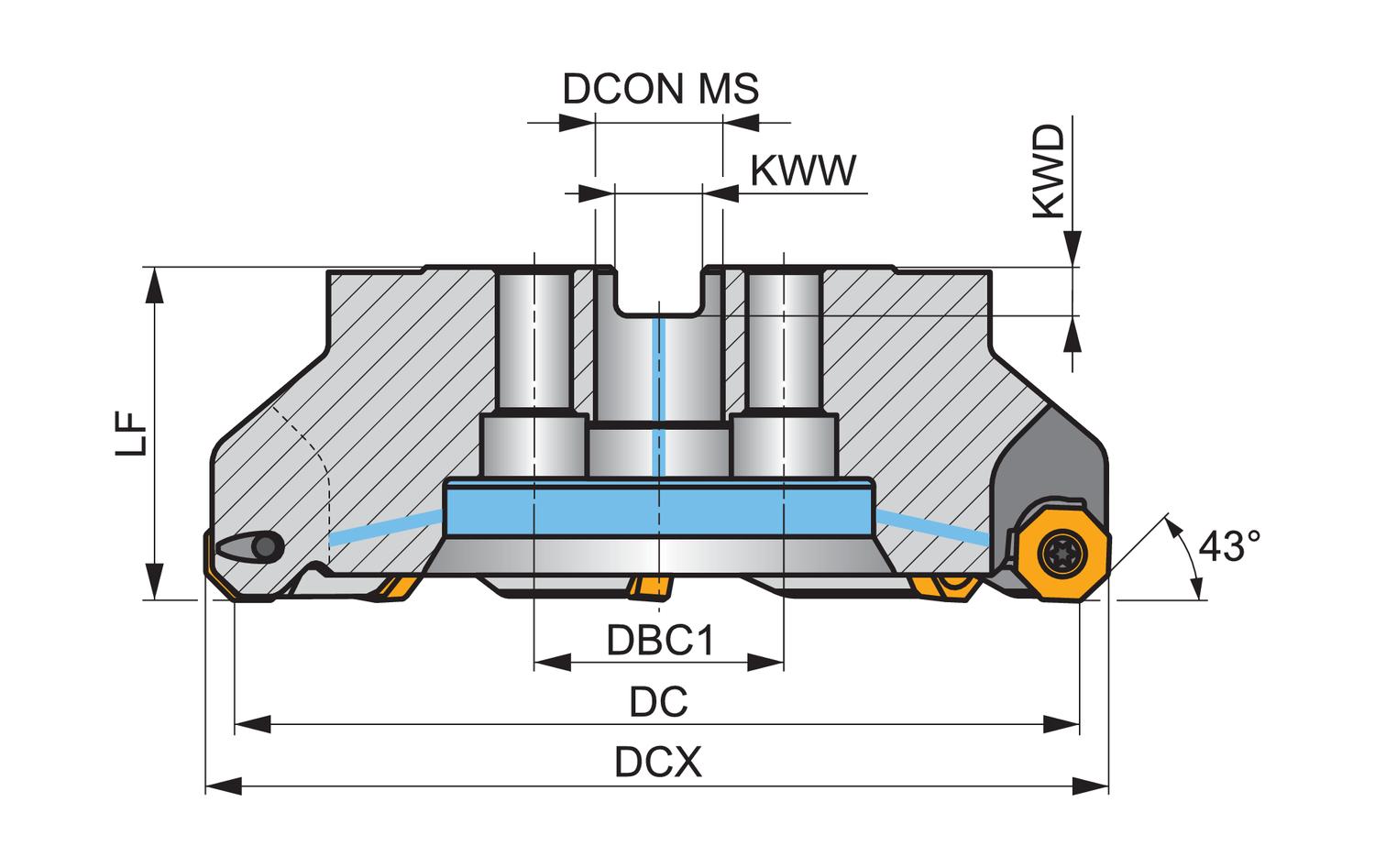

Cutting diameter – millimeter (DC): 200 mm
Cutting diameter maximum – millimeter (DCX): 210.8 mm
Connection diameter – millimeter (DCON MS): 60 mm
Diameter bolt circle 1 – millimeter (DBC1): 101.6 mm
Functional length – millimeter (LF): 63 mm
Keyway width – millimeter (KWW): 25.8 mm
Keyway depth – millimeter (KWD): 14.25 mm

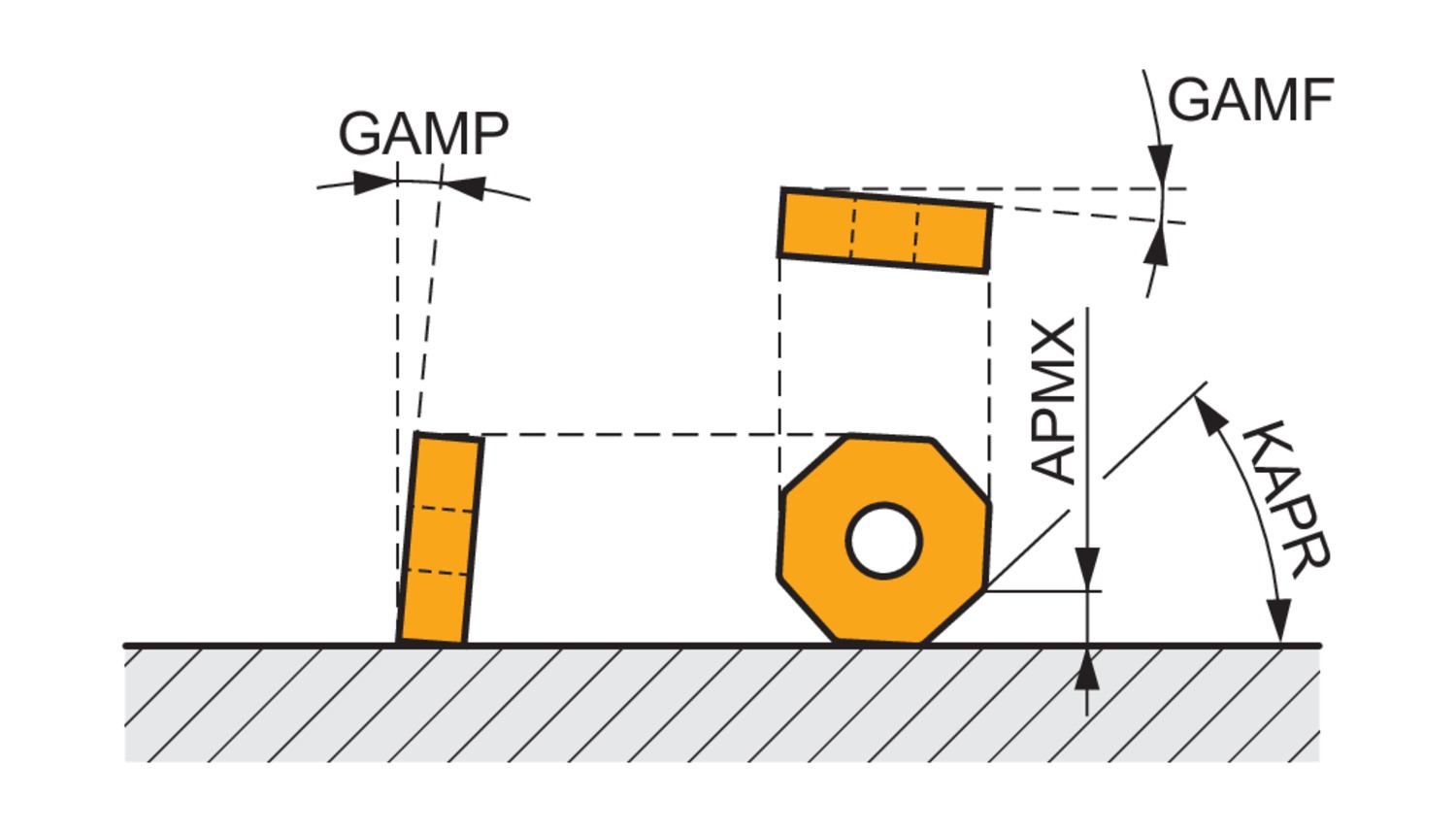

Radial rake angle (GAMF): -10
Axial rake angle (GAMP): -5
Peripheral effective cutting edge count (ZEFP): 12
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 4700
Net weight – grams: 9060
Cutter Design: SON06C
ISO: 200C12R-S45ON06-C
