Description

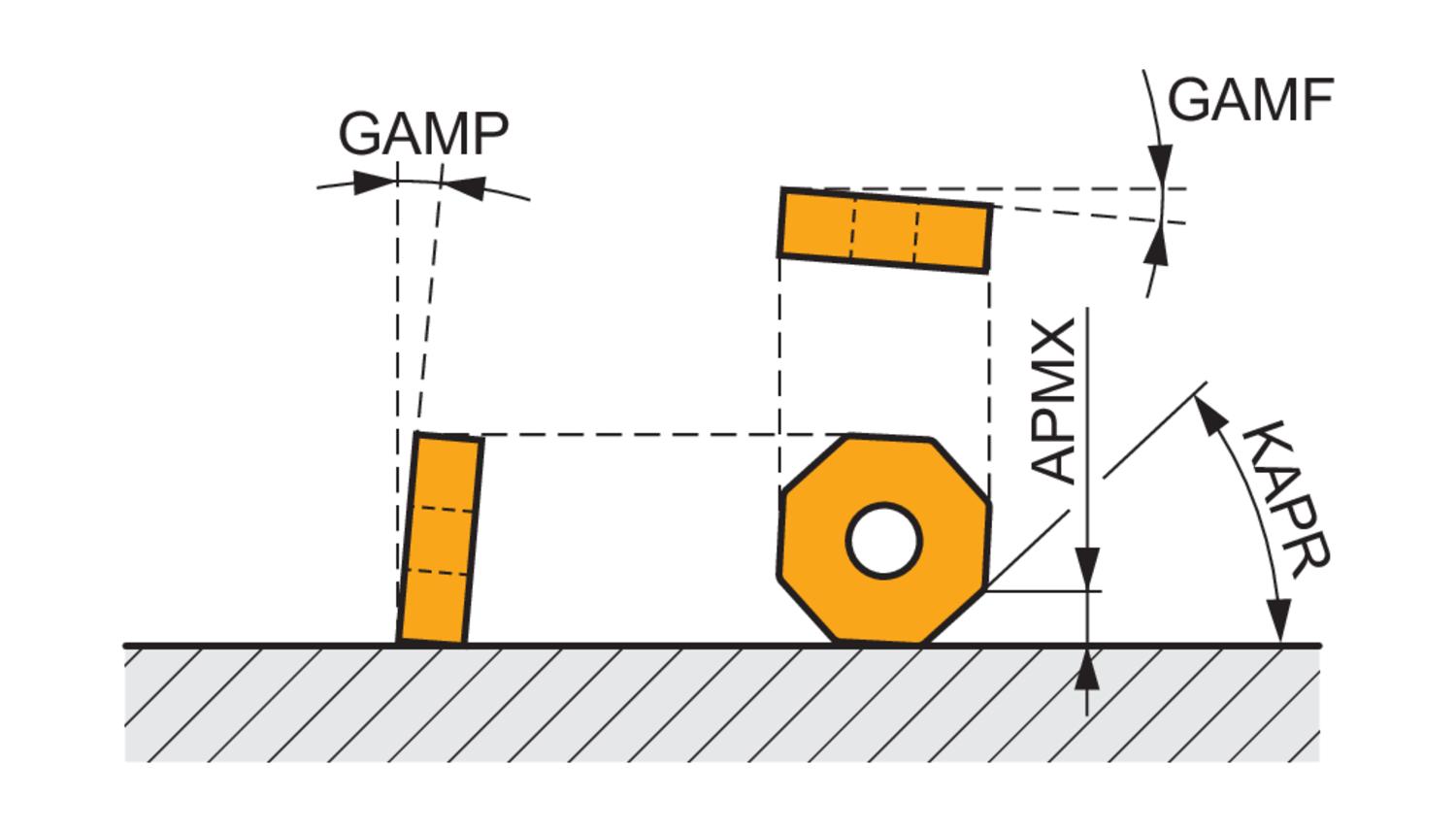

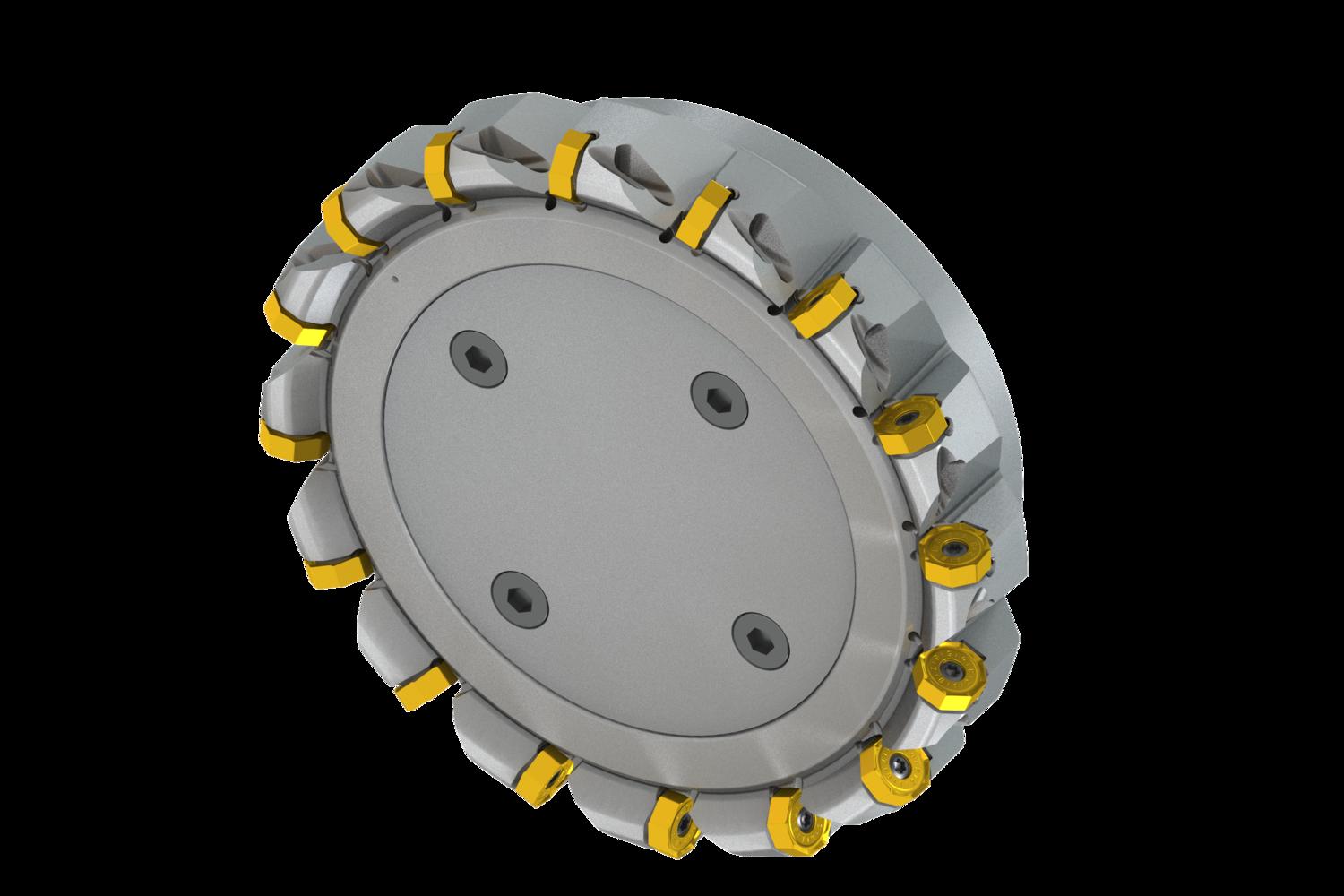

Face mill with double negative geometry which utilises 16 of ONMX 0605.., ONMX 0605..-W or SNMX 1705.. double-sided inserts, cutting diameter 200mm to maximum 210.8mm with 43° approach angle and 60mm connection bore according to DIN 8030-C, 63mm functional and, through coolant for face milling and chamfering with a maximum depth of cut of ON.. 4mm, SN.. 7mm
