PRAMET 2080.50-CC.ER32.063 Tooling system

Product Code: 2080.50-CC.ER32.063

$133.13$121.03 Ex. GST

Product Code: 2080.50-CC.ER32.063 SKU 2080.50-CC.ER32.063 Categories CUTTING TOOLS (HSS & Carbide), Holding

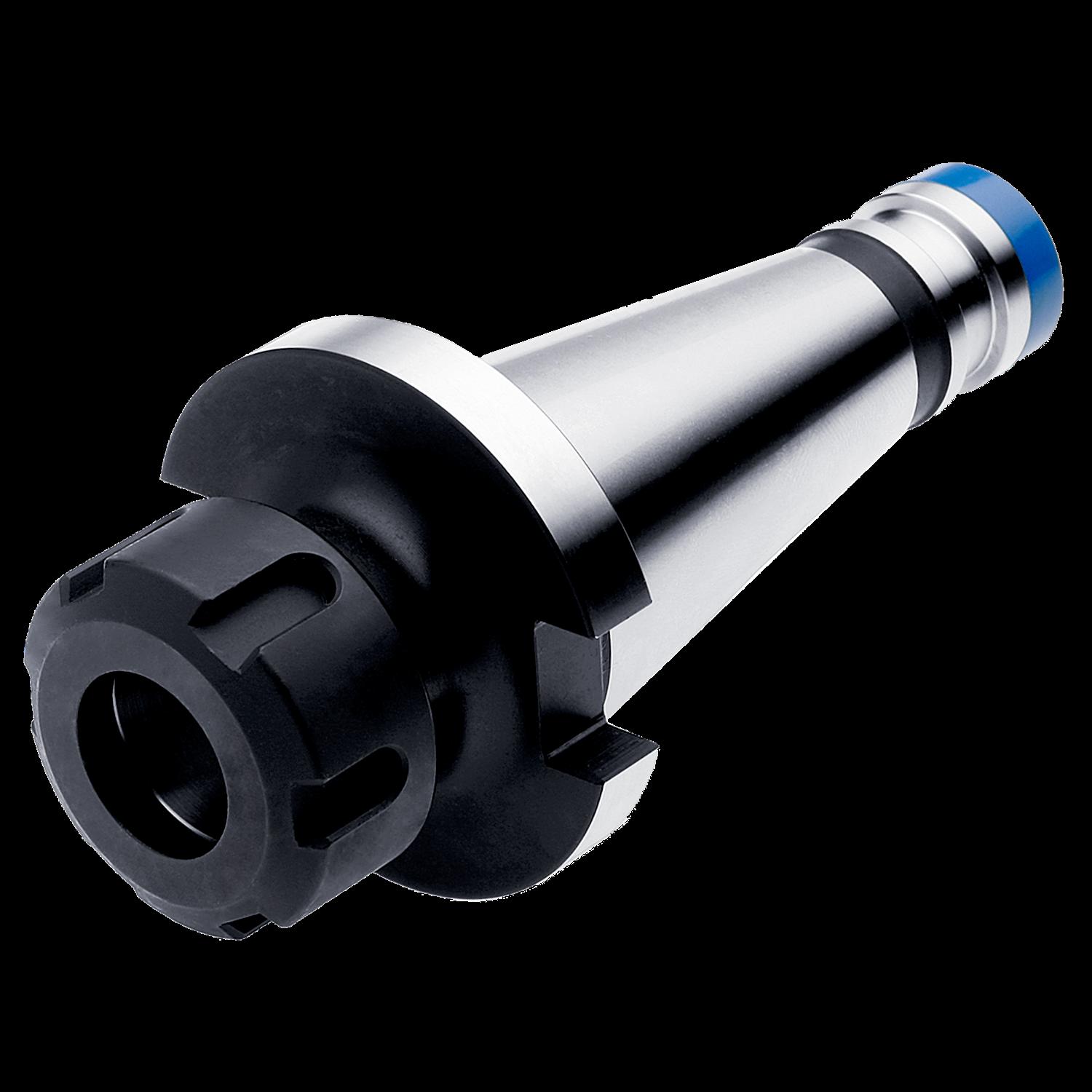

PRAMET 2080.50-CC.ER32.063 Tooling system

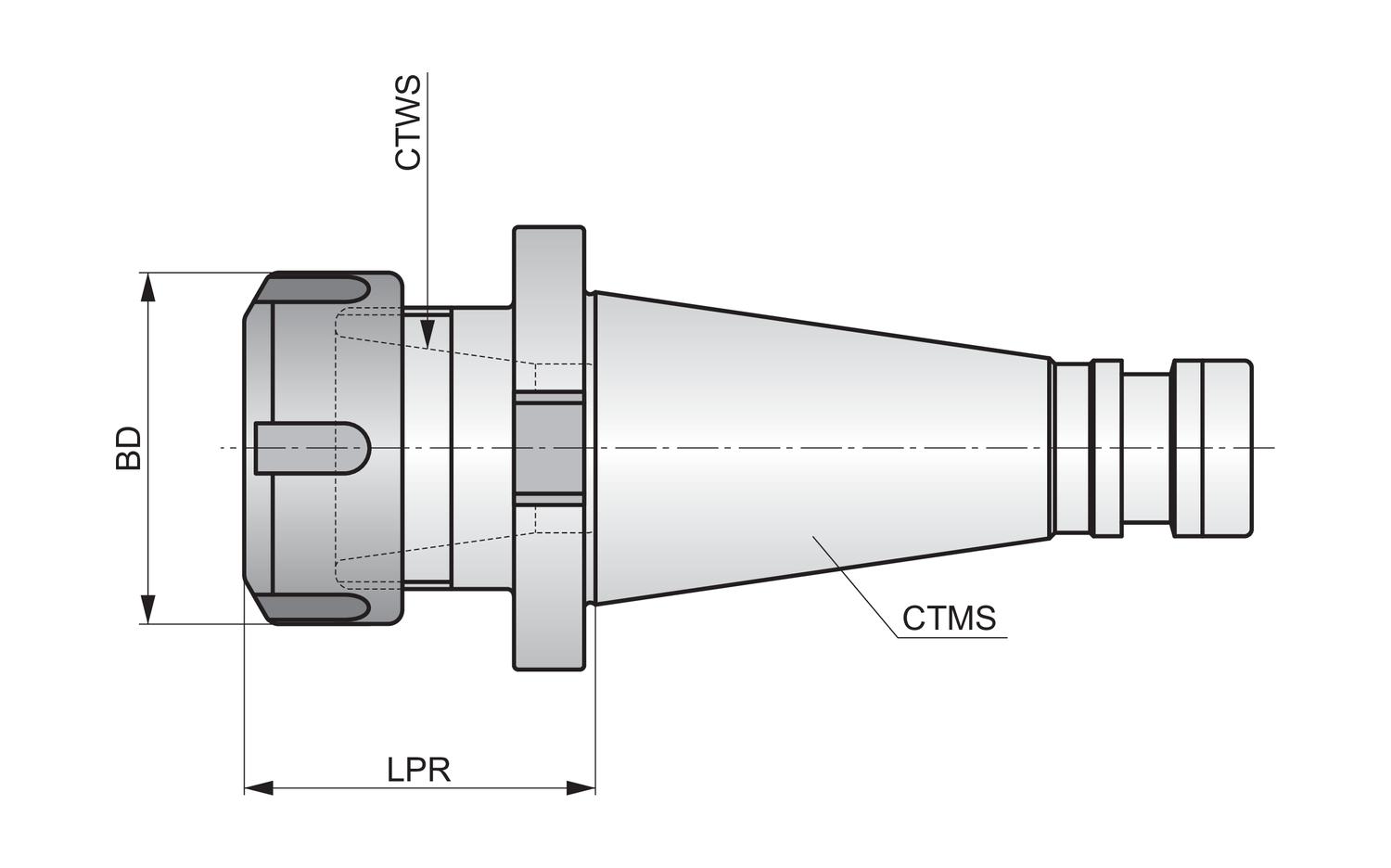

PRAMET 2080.50-CC.ER32.063 Tooling system - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

DIN 2080 – Collet chuck ER

Additional information

Weight	2.9790 kg
barcode
Additional Information	Description: Value Brand Name: Dormer Pramet EAN number: 3603603188099 Product number (SAP): 86028243 Size: 50 ISO: 2080.50-CC.ER32.063 Ordering code ANSI: 2080.50-CC.ER32.063 Net weight – grams: 2979 Gross weight – grams: 2979 Body diameter – millimeter (BD): 50 mm Connection bore diameter minimum – millimeter (DCBN): 2 mm Connection bore diameter maximum – millimeter (DCBX): 20 mm Connection size Value (CSIZE): ER 32 Connection text machine side (CTMS): SK 50 Protruding length – millimeter (LPR): 63 mm

Brand

Dormer Pramet
