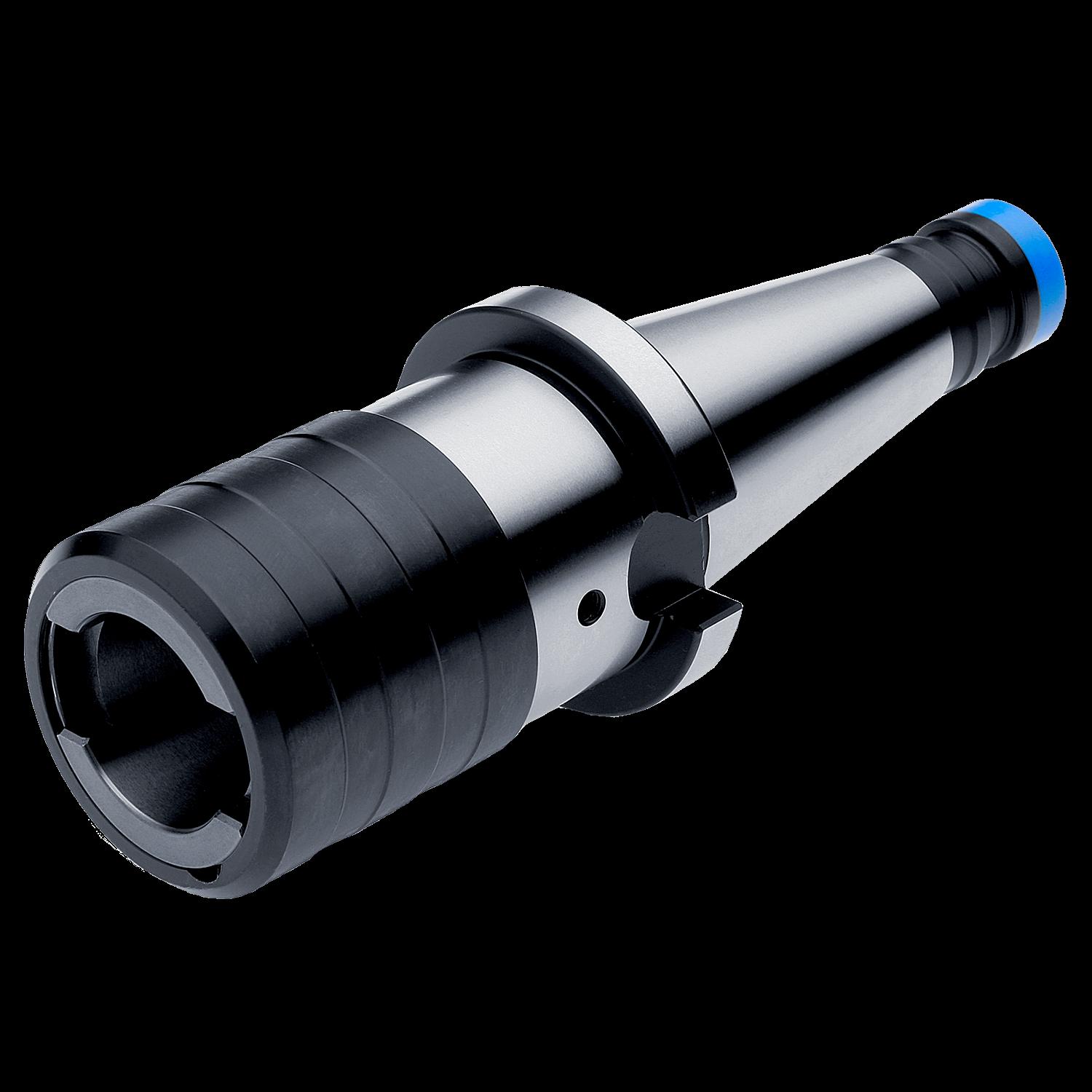

PRAMET 2080.50-QTCC.M14.M36 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603188877
Product number (SAP): 86028321
Size: 50
ISO: 2080.50-QTCC.M14.M36
Ordering code ANSI: 2080.50-QTCC.M14.M36
Net weight – grams: 4638
Gross weight – grams: 4949.5
Axial Floating Back – millimeters (FLB): 17.5 mm
Axial Floating Forward – millimeters (FLF): 17.5 mm
Body diameter – millimeter (BD): 78 mm
Connection diameter workpiece side – millimeter (DCON WS): 48 mm
Connection size Value (CSIZE): M14 – M36
Connection text machine side (CTMS): SK 50
Connection text workpiece side (CTWS): 3
Functional length – millimeter (LF): 117 mm
