ABN 37 114 870 012

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Holding » N1 - Tooling system » PRAMET 2080.50-QTCC.M5.M22 Tooling system

PRAMET 2080.50-QTCC.M5.M22 Tooling system

Product Code: 2080.50-QTCC.M5.M22

$365.01$331.83 Ex. GST

Product Code: 2080.50-QTCC.M5.M22 SKU 2080.50-QTCC.M5.M22 Categories CUTTING TOOLS (HSS & Carbide), Holding

PRAMET 2080.50-QTCC.M5.M22 Tooling system

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

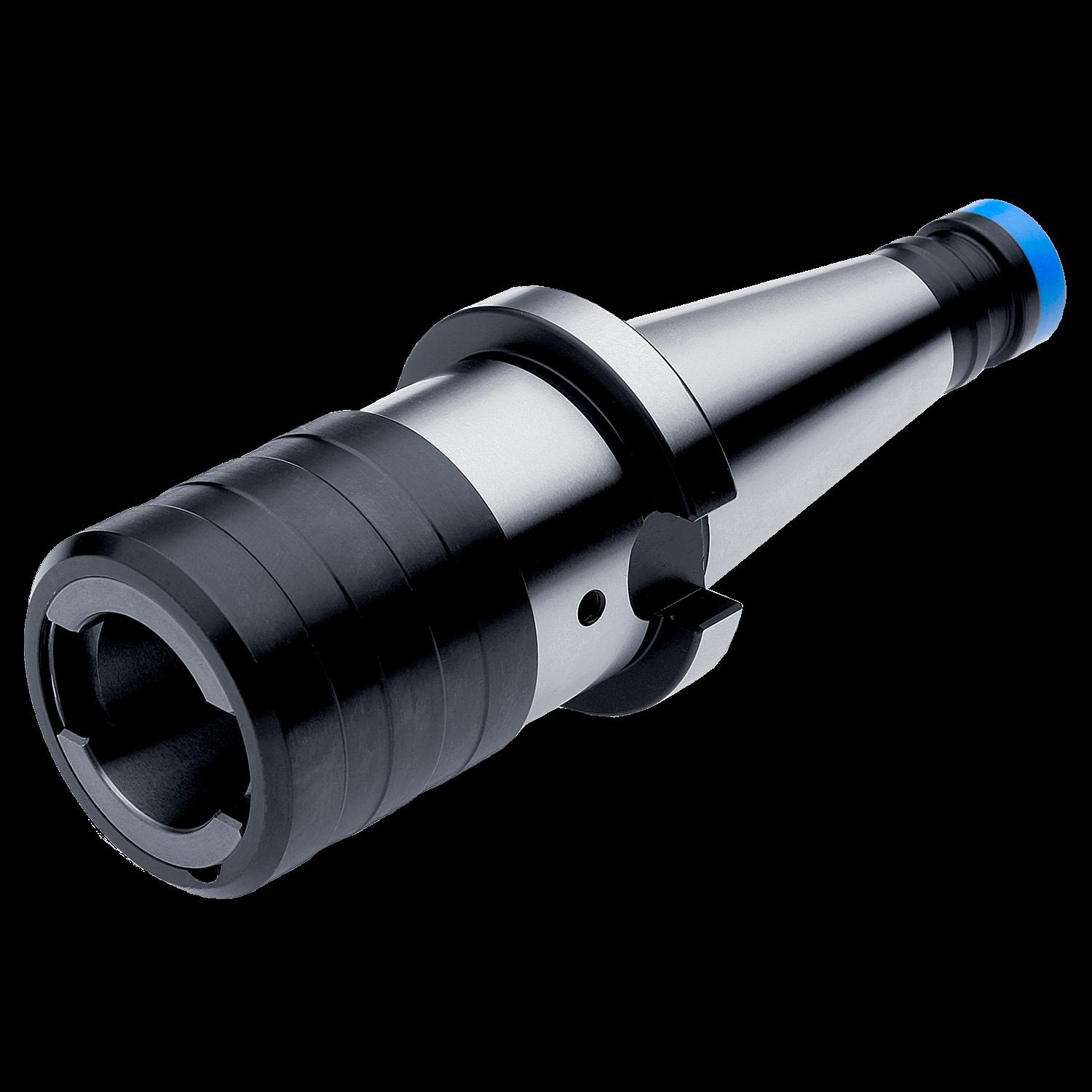

DIN 2080 Quick-Change Tapping Chuck With Compensation

Additional information

Weight	3.4920 kg
barcode
Additional Information	Description: Value Brand Name: Dormer Pramet EAN number: 3603603188860 Product number (SAP): 86028320 Size: 50 ISO: 2080.50-QTCC.M5.M22 Ordering code ANSI: 2080.50-QTCC.M5.M22 Net weight – grams: 3492 Gross weight – grams: 3492 Axial Floating Back – millimeters (FLB): 12 mm Axial Floating Forward – millimeters (FLF): 12 mm Body diameter – millimeter (BD): 54 mm Connection diameter workpiece side – millimeter (DCON WS): 31 mm Connection size Value (CSIZE): M5 – M22 Connection text machine side (CTMS): SK 50 Connection text workpiece side (CTWS): 2 Functional length – millimeter (LF): 90 mm

Brand

Dormer Pramet
