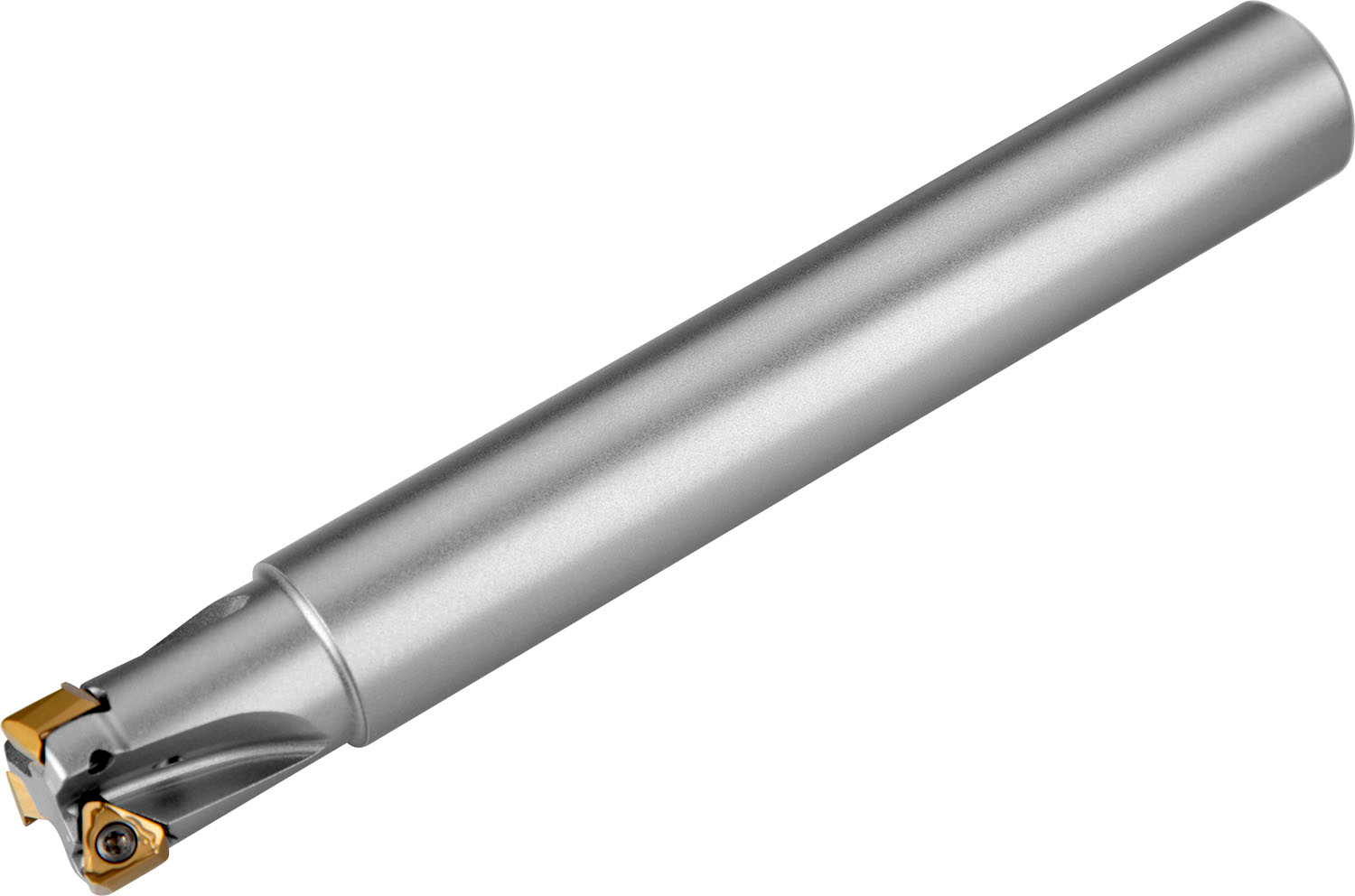

PRAMET 20A2R029A20-STN10-C Milling cutters with clamping by screw

Product Code: 20A2R029A20-STN10-C

$523.45$475.86 Ex. GST

Product Code: 20A2R029A20-STN10-C SKU 20A2R029A20-STN10-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder face mill with double negative geometry which utilises 2 of TNGX 1004.. double-sided inserts, cutting diameter 20mm with 90° approach angle and 20mm parallel shank according to DIN 1835A, 29mm functional and 150mm overall length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of 5.0mm

Additional information

Weight 0.5082 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603603173095
Product number (SAP): 86027480
Ordering code ANSI: 20A2R029A20-STN10-C
Product Line: ECON TN
Gross weight – grams: 345.7
Cutting diameter – millimeter (DC): 20 mm
Overall length – millimeter (OAL): 150 mm
Connection diameter – millimeter (DCON MS): 20 mm
Usable Length – millimeter (LU): 29 mm
Radial rake angle (GAMF): -16.5
Axial rake angle (GAMP): -11
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 27600
Net weight – grams: 345.7
Cutter Design: STN10
Insert index count (NOI): 2
ISO: 20A2R029A20-STN10-C

Brand

PRAMET
