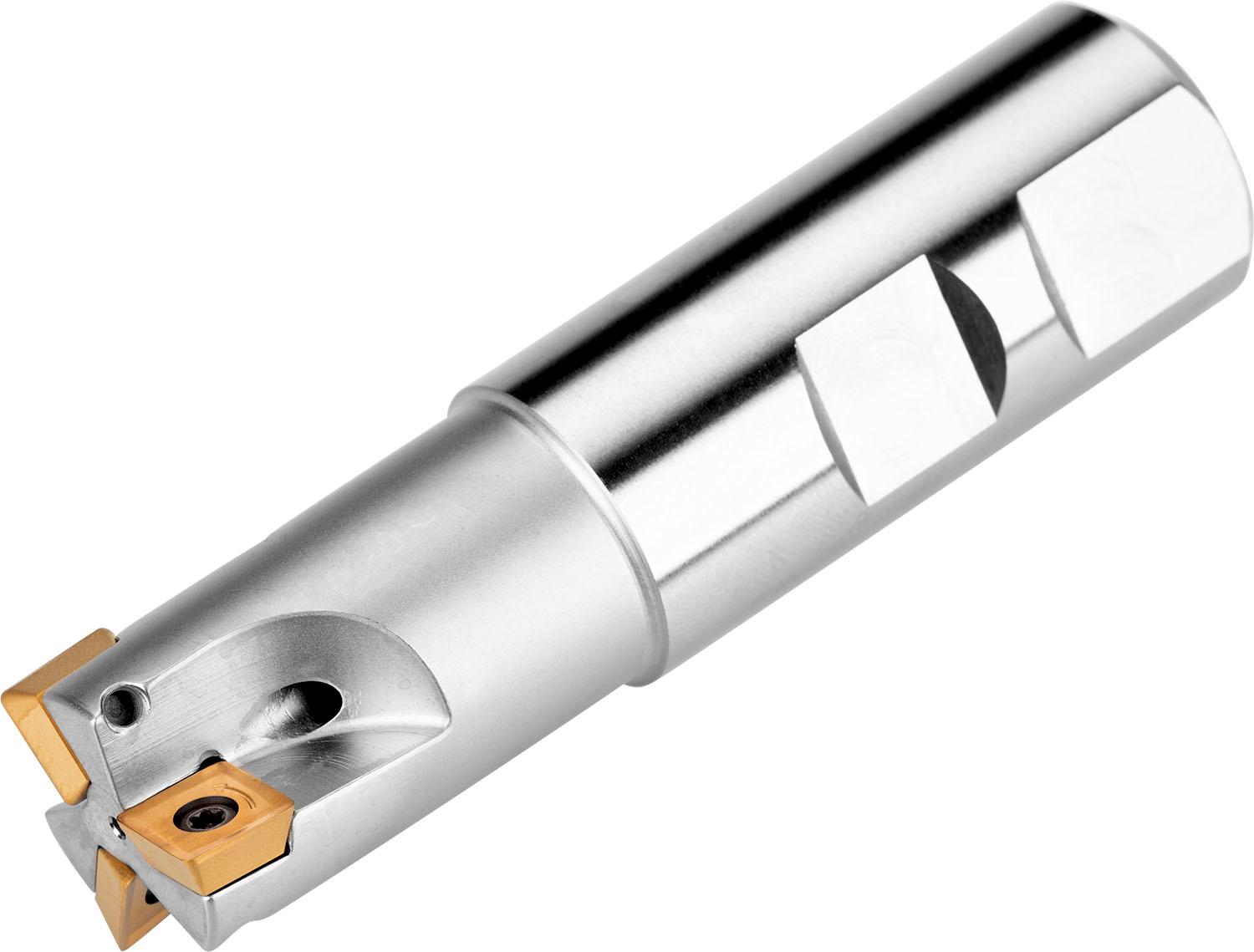

PRAMET 20A2R032B20-SSO09-C Milling cutters with clamping by screw

Product Code: 20A2R032B20-SSO09-C

$614.09$558.26 Ex. GST

Product Code: 20A2R032B20-SSO09-C SKU 20A2R032B20-SSO09-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 2 of SOMT 09T3.. single-sided inserts, cutting diameter 20mm with 90° approach angle and 20mm Weldon shank according to DIN 1835B, 82mm overall length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 8.0mm

Additional information

Weight 0.5962 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602937049
Product number (SAP): 84004794
Ordering code ANSI: 20A2R032B20-SSO09-C
Gross weight – grams: 217.7
Cutting diameter – millimeter (DC): 20 mm
Overall length – millimeter (OAL): 82 mm
Connection diameter – millimeter (DCON MS): 20 mm
Usable Length – millimeter (LU): 32 mm
Radial rake angle (GAMF): -12
Axial rake angle (GAMP): 6
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 23800
Net weight – grams: 210
Cutter Design: SSO09
Insert index count (NOI): 2
ISO: 20A2R032B20-SSO09-C

Brand

PRAMET
