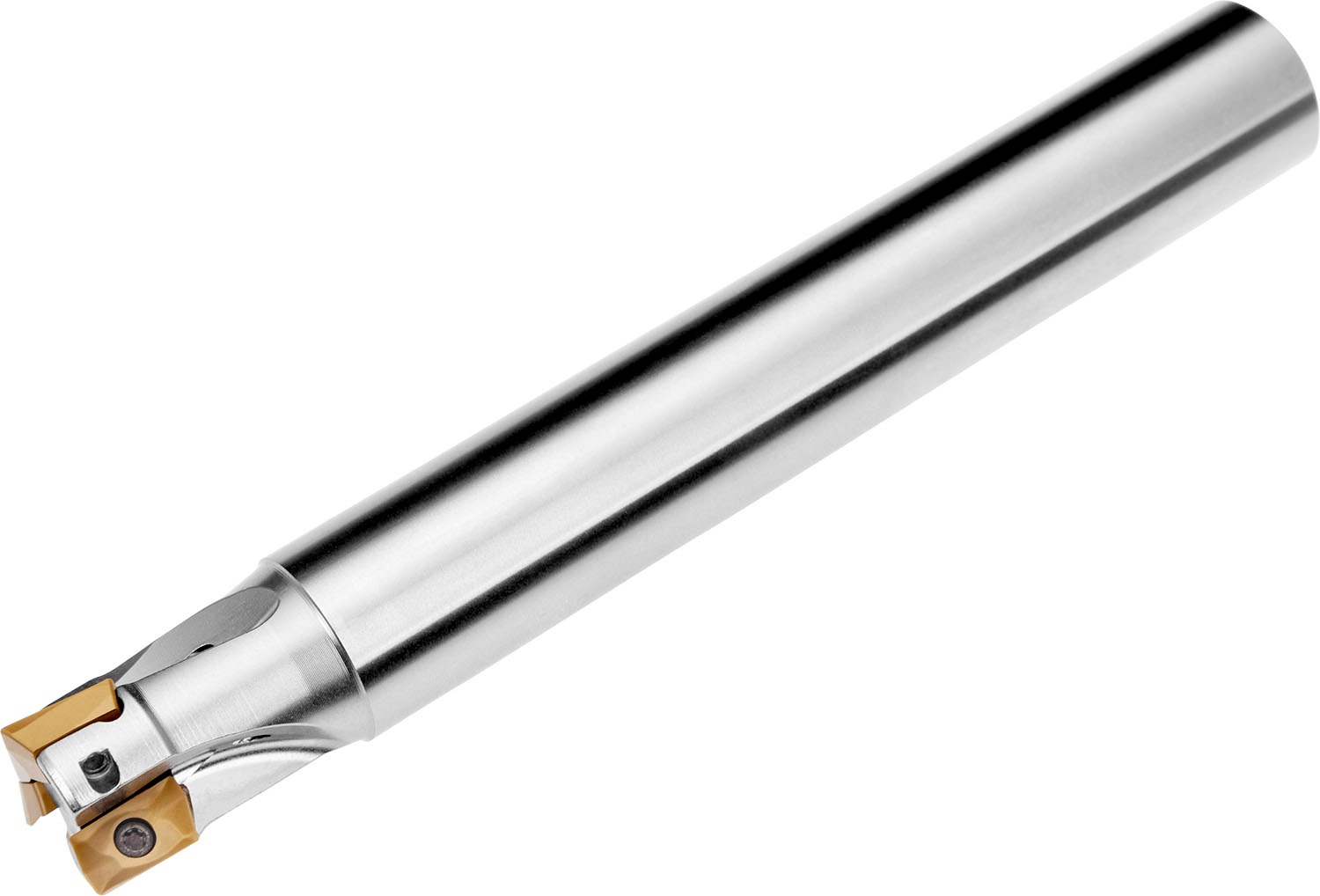

PRAMET 20A2R070A20-SAD11E-C Milling cutters with clamping by screw

Product Code: 20A2R070A20-SAD11E-C

$475.86$432.60 Ex. GST

Product Code: 20A2R070A20-SAD11E-C SKU 20A2R070A20-SAD11E-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 2 of ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 20mm with 90° approach angle and 20mm parallel shank according to DIN 1835A, 70mm functional and 150mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0mm

Additional information

Weight 0.462 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602950307
Product number (SAP): 86038540
Ordering code ANSI: 20A2R070A20-SAD11E-C
Product Line: FORCE AD
Gross weight – grams: 317.2
Cutting diameter – millimeter (DC): 20 mm
Overall length – millimeter (OAL): 150 mm
Connection diameter – millimeter (DCON MS): 20 mm
Usable Length – millimeter (LU): 70 mm
Connection size code machine side (CZC MS): –
Radial rake angle (GAMF): -11.5
Axial rake angle (GAMP): 5
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 27000
Net weight – grams: 316.8
Cutter Design: SAD11E
Insert index count (NOI): 2
ISO: 20A2R070A20-SAD11E-C

Brand

PRAMET
