PRAMET 20A3R030M10-SWN04C-C Milling cutters for D&M

Product Code: 20A3R030M10-SWN04C-C

$530.24$482.04 Ex. GST

Product Code: 20A3R030M10-SWN04C-C SKU 20A3R030M10-SWN04C-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

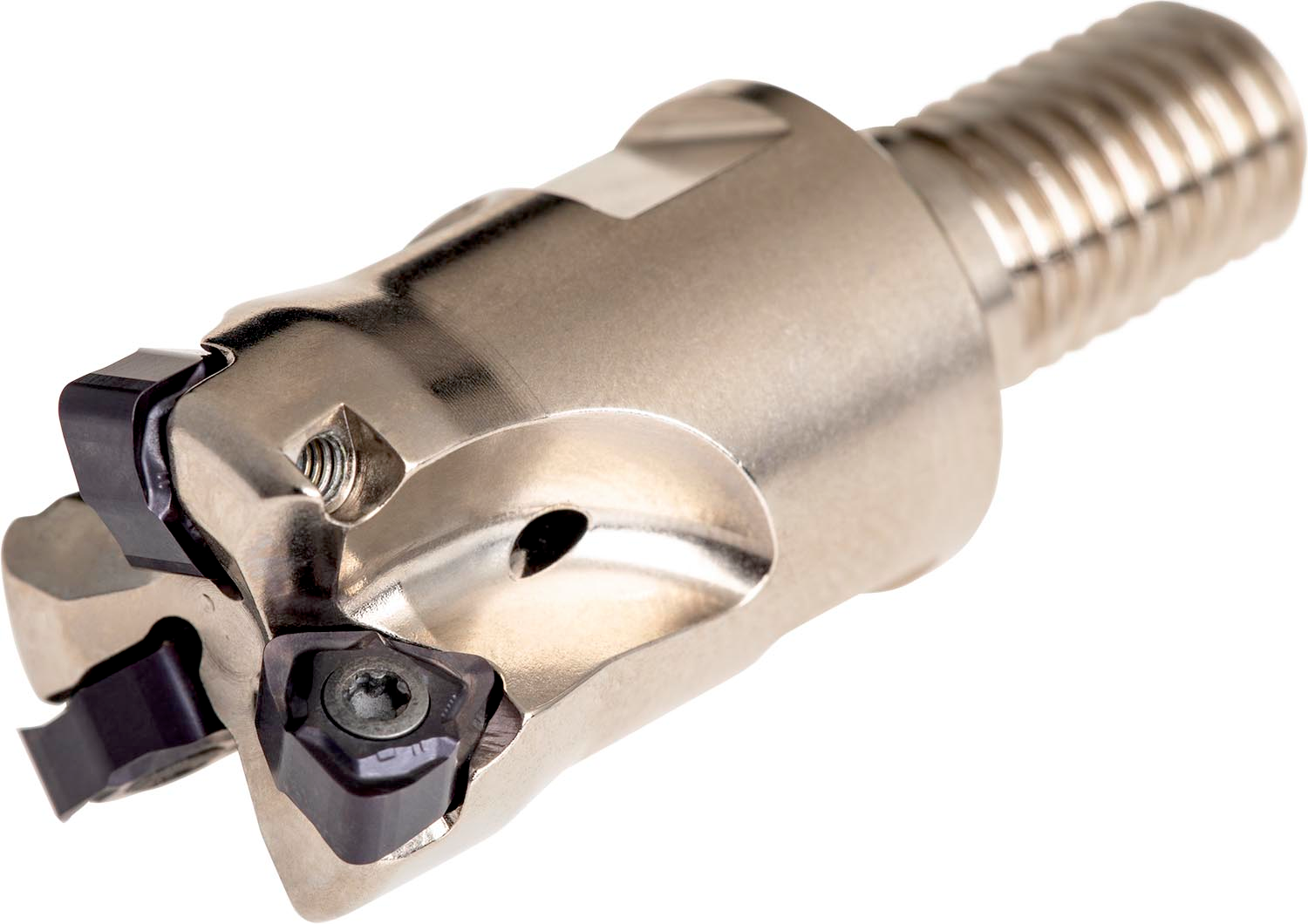

Copy face mill with double negative geometry which utilises 3 of WNHX 0403.. double-sided inserts, cutting diameter 20mm with 93° approach angle and M10 threaded shank for standard modular tool-holders, 30mm protrusion length, through coolant for face milling, copy milling, shallow shoulder milling, deep shoulder milling, ramping and plunge milling with a maximum depth of cut of 0.5mm

Additional information

Weight 0.5148 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603603536111
Product number (SAP): 86034306
Ordering code ANSI: 20A3R030M10-SWN04C-C
Gross weight – grams: 74
Cutting diameter – millimeter (DC): 20 mm
Overall length – millimeter (OAL): 49 mm
Connection diameter – millimeter (DCON MS): 10.5 mm
Functional length – millimeter (LF): 30 mm
Thread diameter size (TDZ): M10
Radial rake angle (GAMF): -12
Axial rake angle (GAMP): -8
Peripheral effective cutting edge count (ZEFP): 3
Net weight – grams: 74
Cutter Design: SWN04C
Insert index count (NOI): 3
ISO: 20A3R030M10-SWN04C-C

Brand

PRAMET
