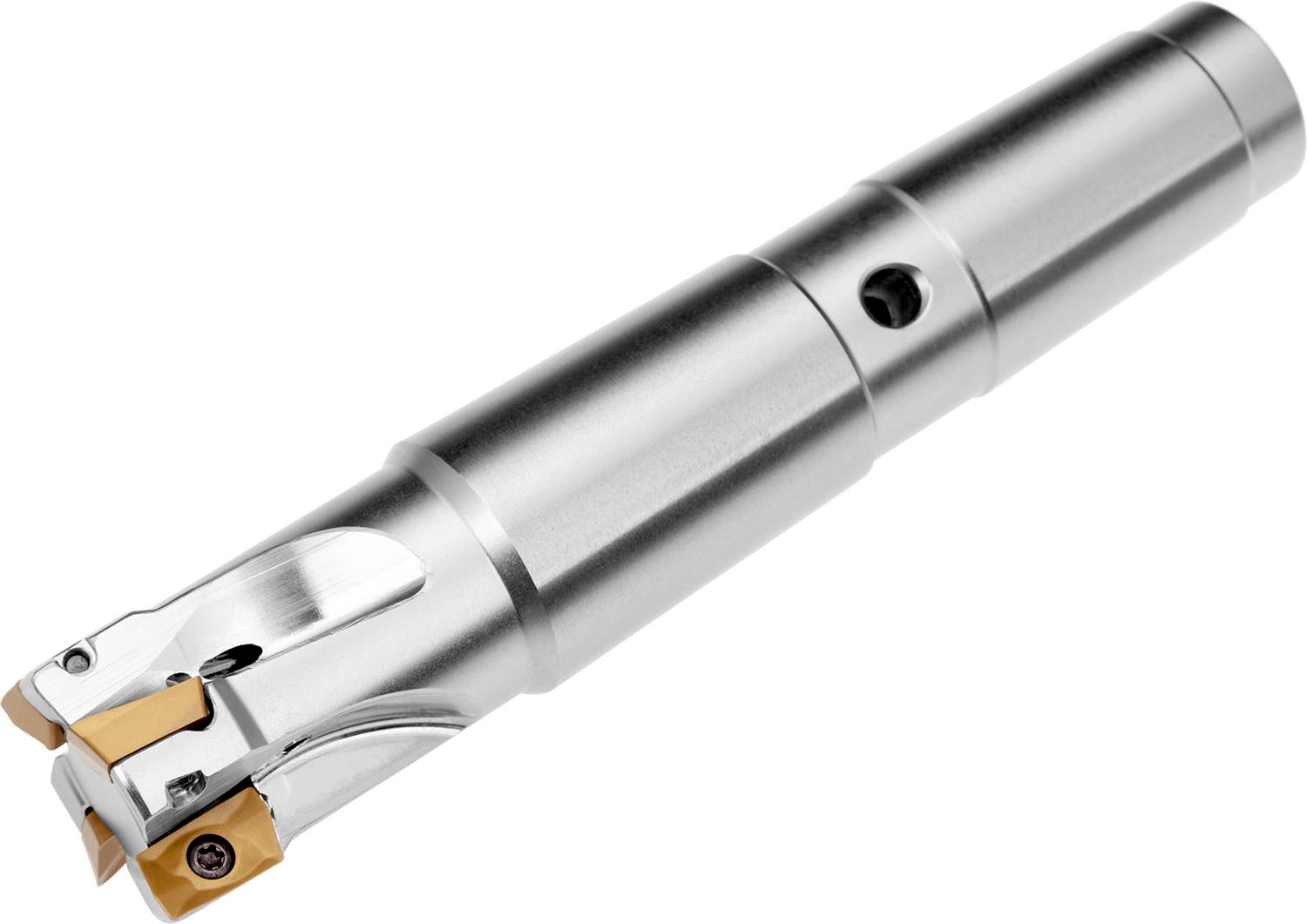

PRAMET 20A3R035E03-SAD11E-C Milling cutters with clamping by screw

Product Code: 20A3R035E03-SAD11E-C

$514.38$467.62 Ex. GST

Product Code: 20A3R035E03-SAD11E-C SKU 20A3R035E03-SAD11E-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 3 of ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 20mm with 90° approach angle and MT 3 morse taper shank according to DIN 228-1A, 30mm functional and 116mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0mm

Additional information

Weight 0.4994 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602942753
Product number (SAP): 86038518
Ordering code ANSI: 20A3R035E03-SAD11E-C
Product Line: FORCE AD
Gross weight – grams: 276.4
Cutting diameter – millimeter (DC): 20 mm
Overall length – millimeter (OAL): 116 mm
Usable Length – millimeter (LU): 30 mm
Functional length – millimeter (LF): 35 mm
Connection size code machine side (CZC MS): 3
Radial rake angle (GAMF): -11.5
Axial rake angle (GAMP): 5
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 27000
Net weight – grams: 270
Cutter Design: SAD11E
Insert index count (NOI): 3
ISO: 20A3R035E03-SAD11E-C

Brand

PRAMET
