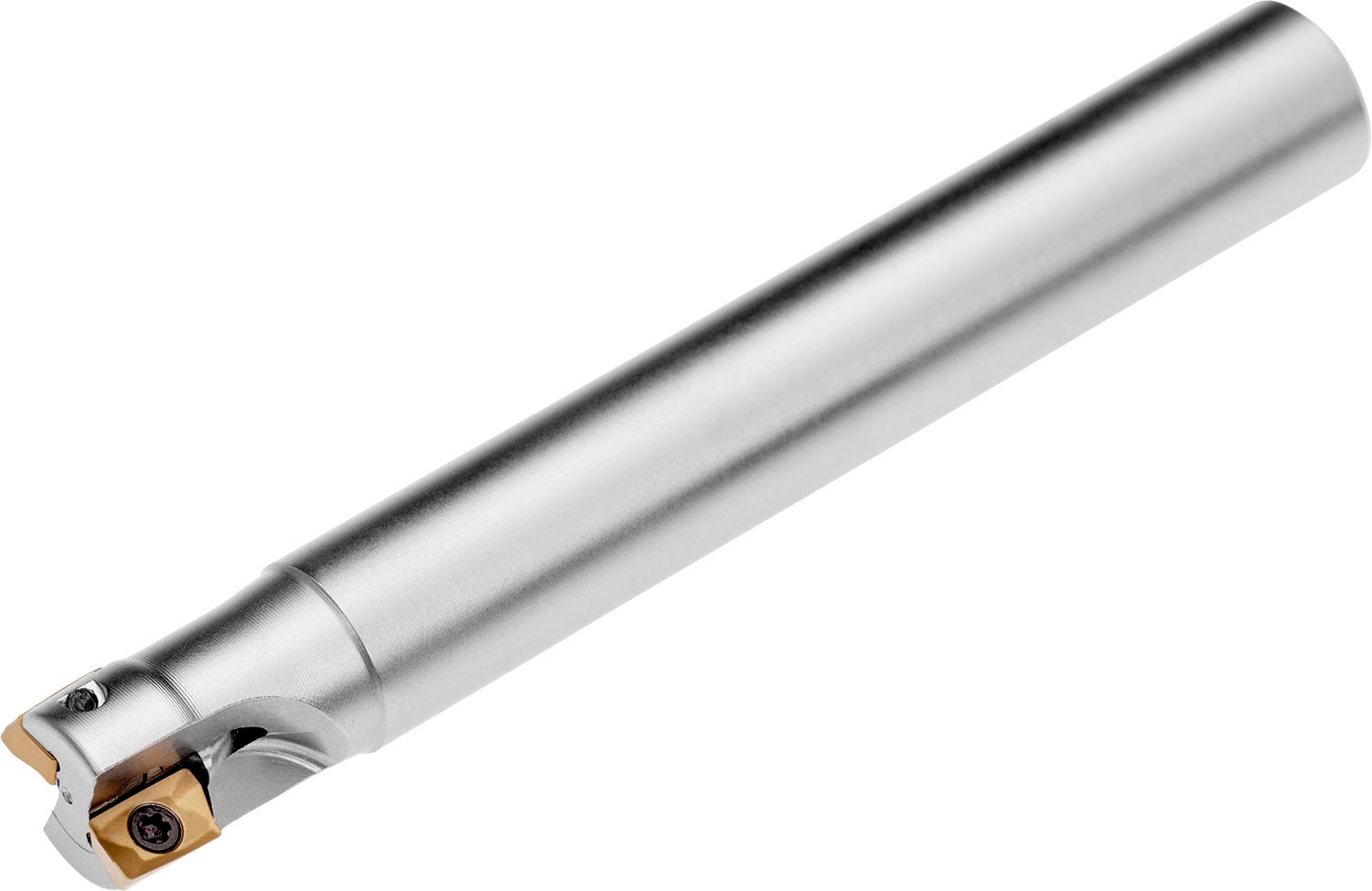

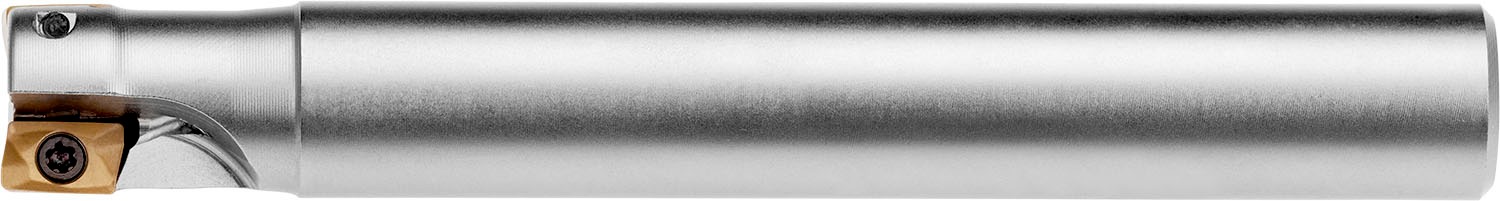

PRAMET 20A4R020A18-SAD07D-C Milling cutters with clamping by screw

Product Code: 20A4R020A18-SAD07D-C

$510.98$464.53 Ex. GST

Product Code: 20A4R020A18-SAD07D-C SKU 20A4R020A18-SAD07D-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 4 of ADMX 0702.. or ADEX 0702.. single-sided inserts, cutting diameter 20mm with 90° approach angle and 18mm parallel shank according to DIN 1835A, 20mm functional and 200mm overall length, through coolant and differential pitch for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 5.0mm

Additional information

Weight 0.4961 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602992796
Product number (SAP): 86020575
Ordering code ANSI: 20A4R020A18-SAD07D-C
Product Line: FORCE AD
Gross weight – grams: 374.8

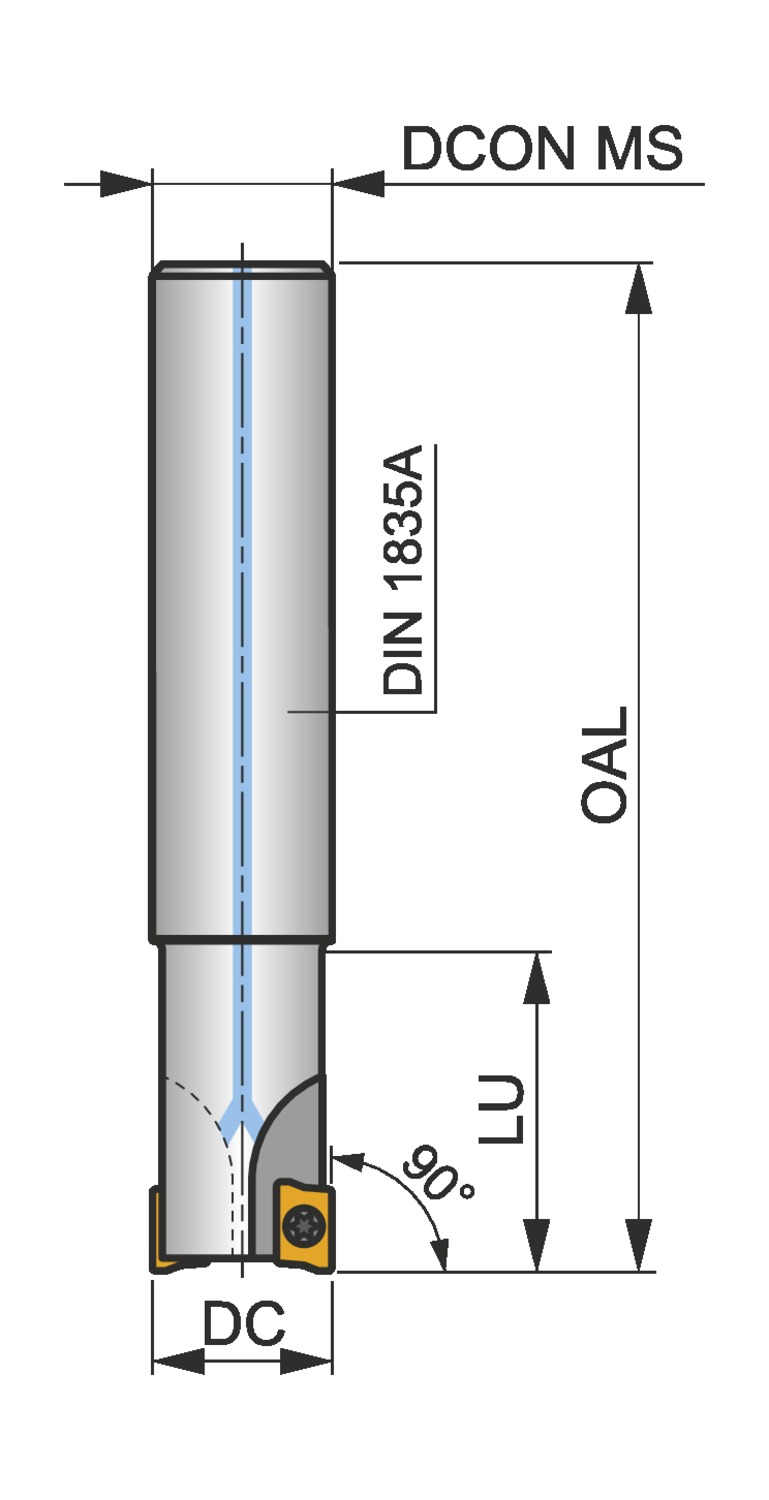

Cutting diameter – millimeter (DC): 20 mm
Overall length – millimeter (OAL): 200 mm
Connection diameter – millimeter (DCON MS): 18 mm
Usable Length – millimeter (LU): 20 mm

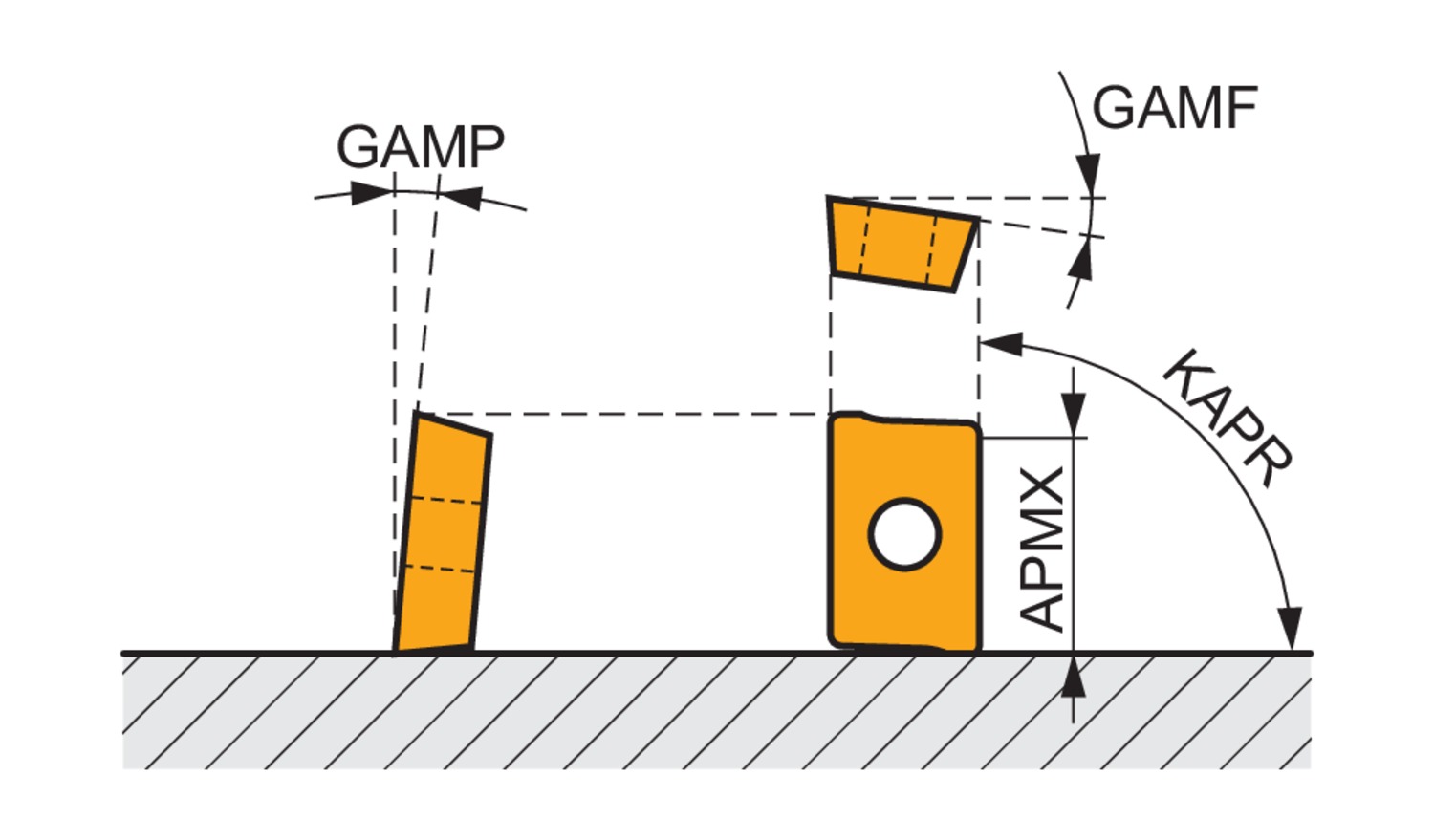

Radial rake angle (GAMF): -7
Axial rake angle (GAMP): 8
Peripheral effective cutting edge count (ZEFP): 4
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 43600
Net weight – grams: 374.8
Cutter Design: SAD07D
Insert index count (NOI): 4
ISO: 20A4R020A18-SAD07D-C

Brand

PRAMET
