PRAMET 20E3R040A20-SZD07 Milling Cutters – HFC

Product Code: 20E3R040A20-SZD07

$418.08$380.07 Ex. GST

Product Code: 20E3R040A20-SZD07 SKU 20E3R040A20-SZD07 Categories CUTTING TOOLS (HSS & Carbide), H5 - Mill Cutter HFC, Milling

PRAMET 20E3R040A20-SZD07 Milling Cutters - HFC

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

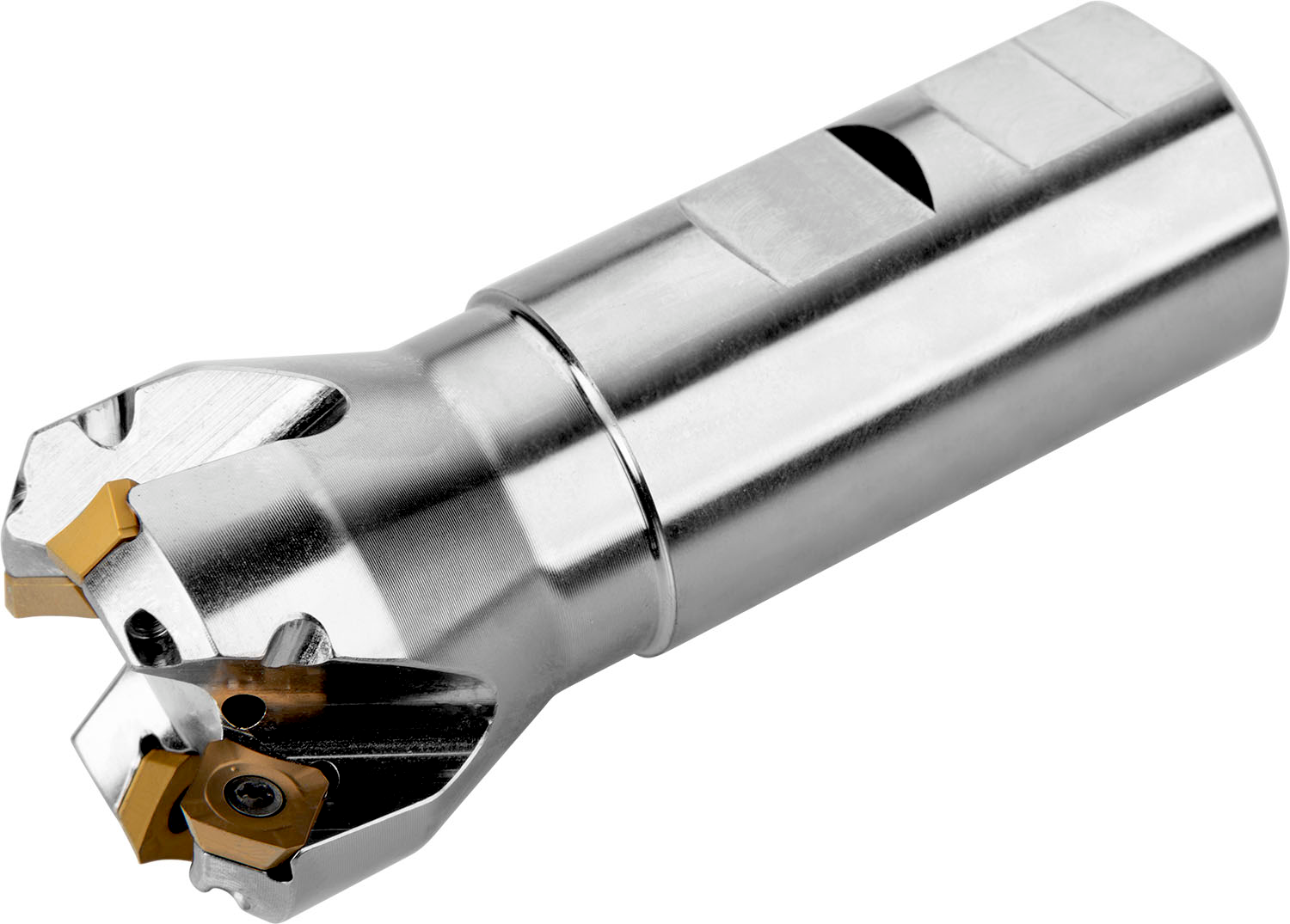

High feed cutter with positve/negative geometry which utilises 3 of ZDCW 0703.. single-sided inserts, cutting diameter 20mm with 20,0mm parallel shank according to DIN 1835A, 120mm overall length, through coolant for face milling

Additional information

Weight	0.4059 kg
Dimensions	Length 12cm x Width cm x Depth cm
barcode
Additional Information	Description: Value EAN number: 3603602955951 Product number (SAP): 86000731 Ordering code ANSI: 20E3R040A20-SZD07 Product Line: FEED ZD Gross weight – grams: 250 Cutting diameter maximum – millimeter (DCX): 20 mm Cutting diameter – millimeter (DC): 10 mm Overall length – millimeter (OAL): 120 mm Connection diameter – millimeter (DCON MS): 20 mm Usable Length – millimeter (LU): 40 mm Radial rake angle (GAMF): -5 Axial rake angle (GAMP): 8 Peripheral effective cutting edge count (ZEFP): 3 Rotational speed maximum (RPMX): 42400 Net weight – grams: 250 Cutter Design: SZD07 Insert index count (NOI): 3 ISO: 20E3R040A20-SZD07

Brand

PRAMET
