PRAMET 20E3R080A20-SBN10-C Carbide insert

Product Code: 20E3R080A20-SBN10-C

$556.30$505.73 Ex. GST

Product Code: 20E3R080A20-SBN10-C SKU 20E3R080A20-SBN10-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

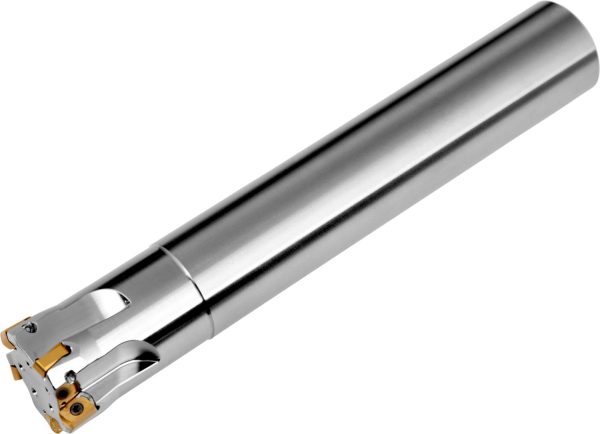

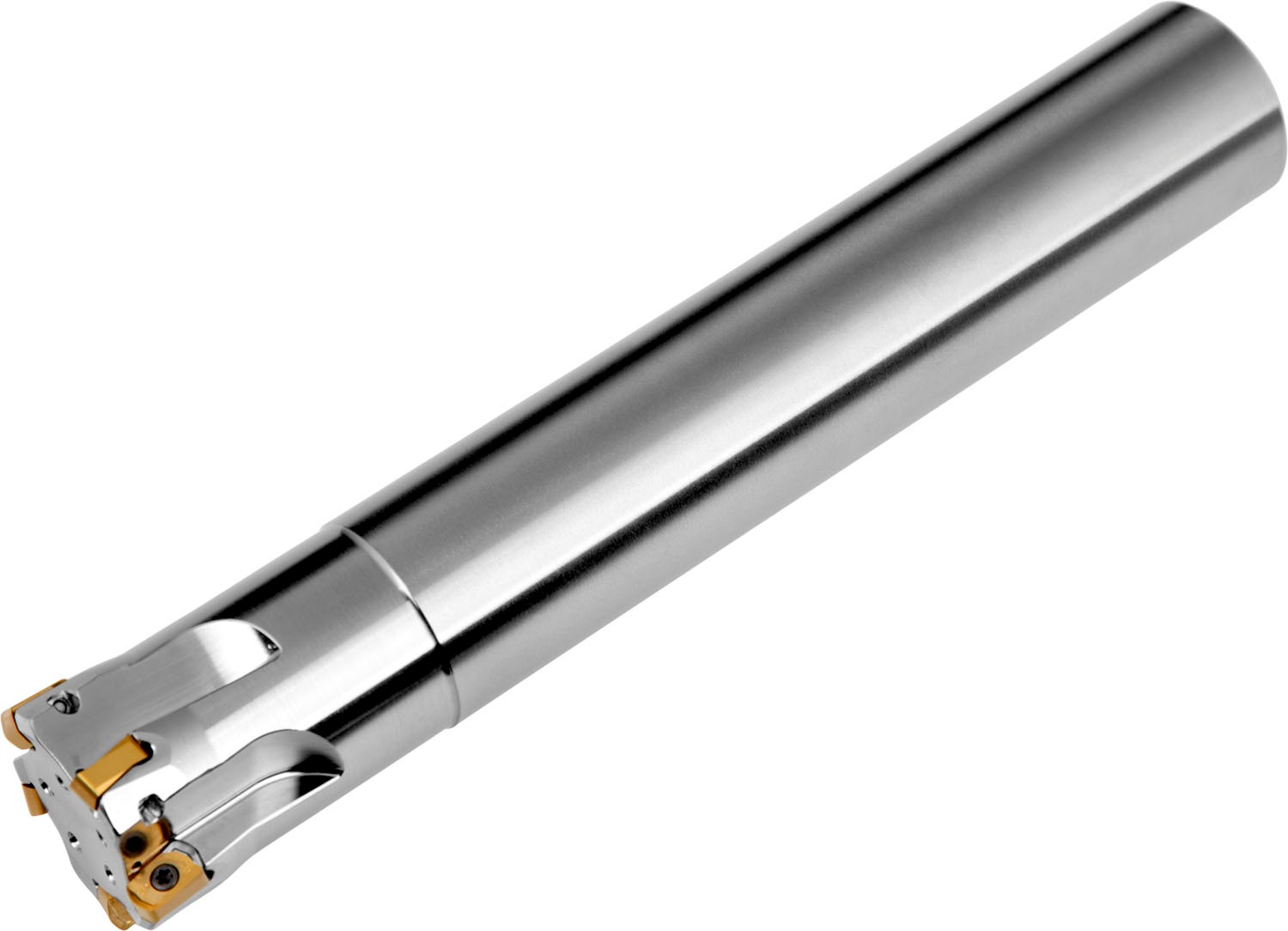

High feed cutter with double negative geometry which utilises 3 of BNGX 10T3.. or ANHX 10T3.. inserts, cutting diameter 20mm with 20° approach angle and 20mm parallel shank according to DIN 1835A, 80mm functional and 160mm overall length, through coolant for face milling, copy milling, shallow shoulder milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 1.0mm

Additional information

Weight 0.5401 kg
Dimensions Length 16cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 3603603388086
Product number (SAP): 86033403
Ordering code ANSI: 20E3R080A20-SBN10-C
Gross weight – grams: 323.1
Cutting diameter maximum – millimeter (DCX): 20 mm
Cutting diameter – millimeter (DC): 13.4 mm
Overall length – millimeter (OAL): 160 mm
Connection diameter – millimeter (DCON MS): 20 mm
Usable Length – millimeter (LU): 80 mm
Radial rake angle (GAMF): -10
Axial rake angle (GAMP): -10
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 27700
Net weight – grams: 290
Cutter Design: SBN10
Insert index count (NOI): 3
ISO: 20E3R080A20-SBN10-C

Brand

PRAMET
