PRAMET 20K2R080A25-SRC20-A Milling cutters for D&M

Product Code: 20K2R080A25-SRC20-A

$339.90$309.00 Ex. GST

Product Code: 20K2R080A25-SRC20-A SKU 20K2R080A25-SRC20-A Categories , ,

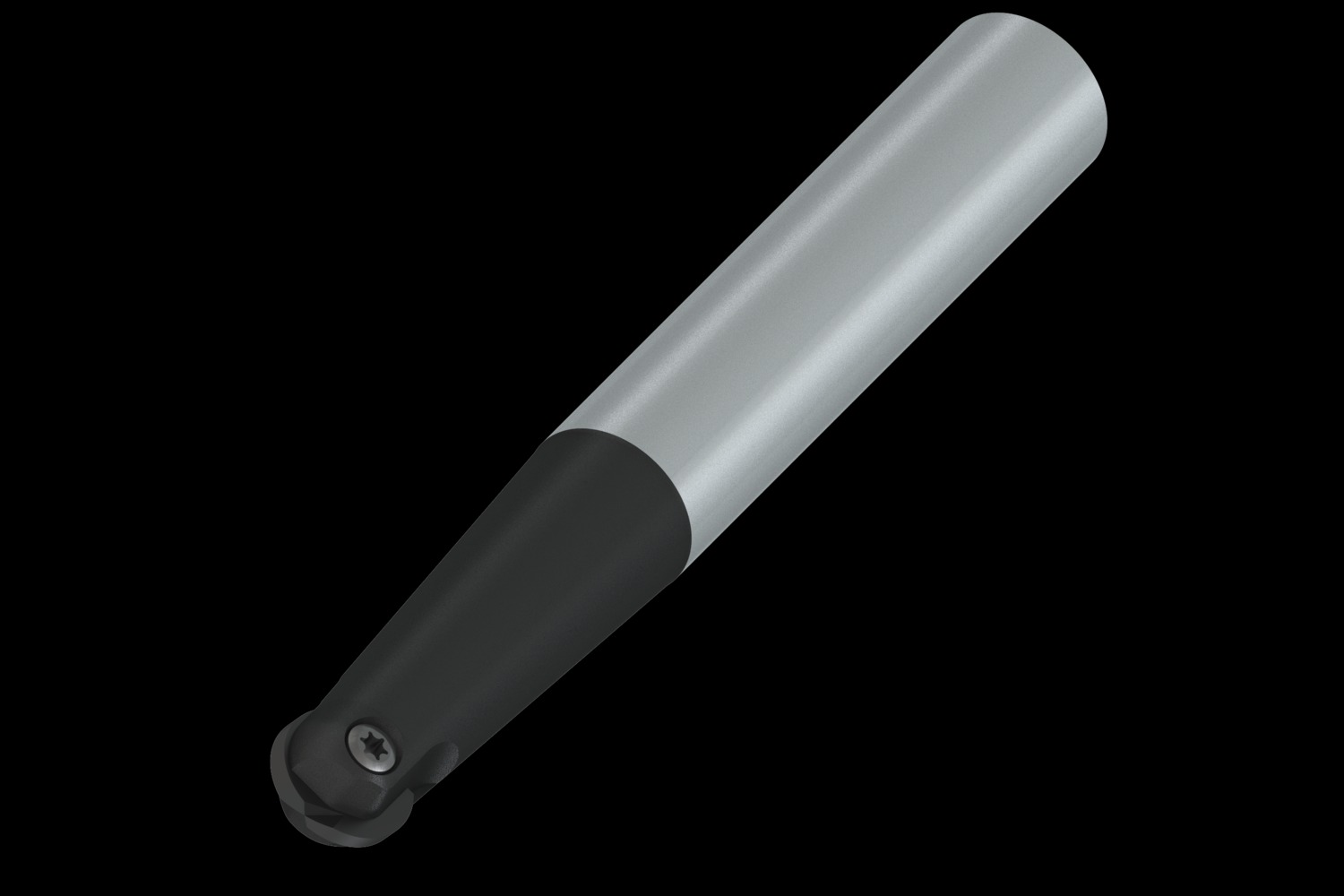

PRAMET 20K2R080A25-SRC20-A Milling cutters for D&M

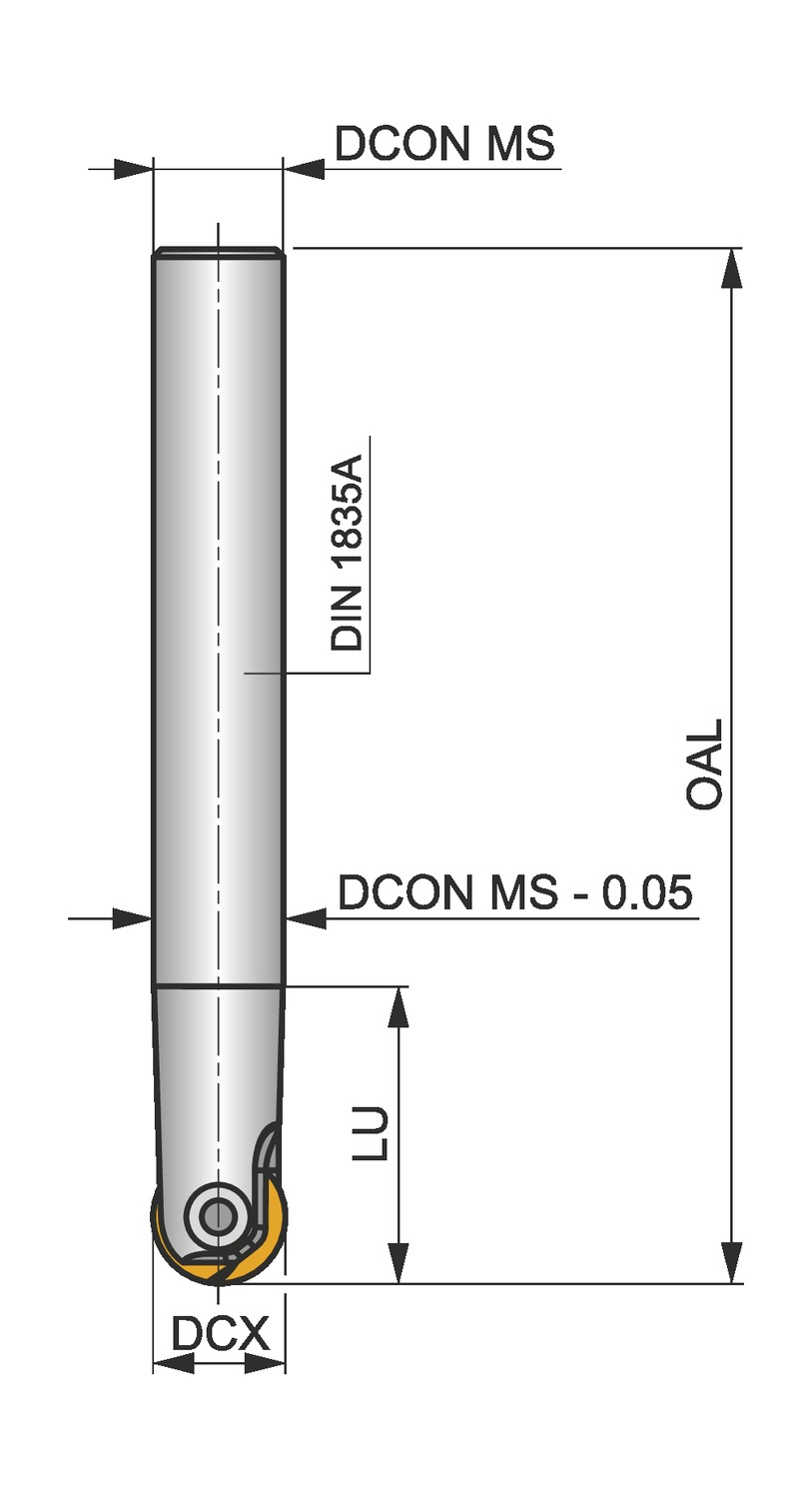

PRAMET 20K2R080A25-SRC20-A Milling cutters for D&M - Image 2

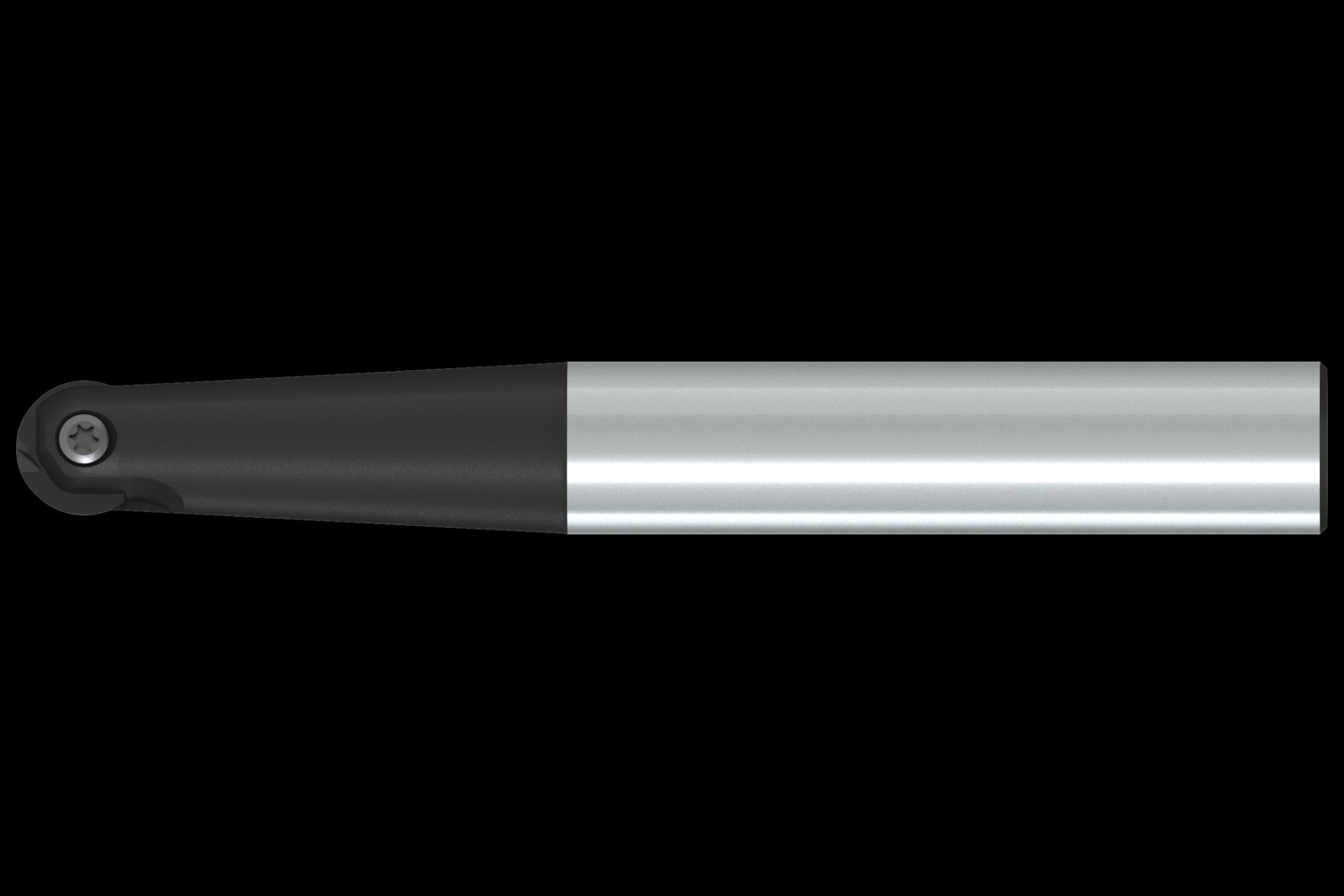

PRAMET 20K2R080A25-SRC20-A Milling cutters for D&M - Image 3
PRAMET 20K2R080A25-SRC20-A Milling cutters for D&M - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Copy end mill which utilises 1 of RC 20 or RC 20-F single-sided insert, cutting diameter 20mm with 25mm parallel shank according to DIN 1835A, 33.5mm functional and 190mm overall length for copy milling with a maximum depth of cut of 0.6-3.2mm

Additional information

Weight 0.33 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602920881
Product number (SAP): 84000944
Ordering code ANSI: 20K2R080A25-SRC20-A
Gross weight – grams: 744.3
Cutting diameter maximum – millimeter (DCX): 20 mm
Overall length – millimeter (OAL): 190 mm
Connection diameter – millimeter (DCON MS): 25 mm
Usable Length – millimeter (LU): 33.5 mm
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 16000
Net weight – grams: 661
Insert index count (NOI): 1
ISO: 20K2R080A25-SRC20-A

Brand

PRAMET
