PRAMET 20K2R35M10-SRC20-A Milling cutters for D&M

Product Code: 20K2R35M10-SRC20-A

$317.24$288.40 Ex. GST

Product Code: 20K2R35M10-SRC20-A SKU 20K2R35M10-SRC20-A Categories , ,
PRAMET 20K2R35M10-SRC20-A Milling cutters for D&M
PRAMET 20K2R35M10-SRC20-A Milling cutters for D&M - Image 2
PRAMET 20K2R35M10-SRC20-A Milling cutters for D&M - Image 3
PRAMET 20K2R35M10-SRC20-A Milling cutters for D&M - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

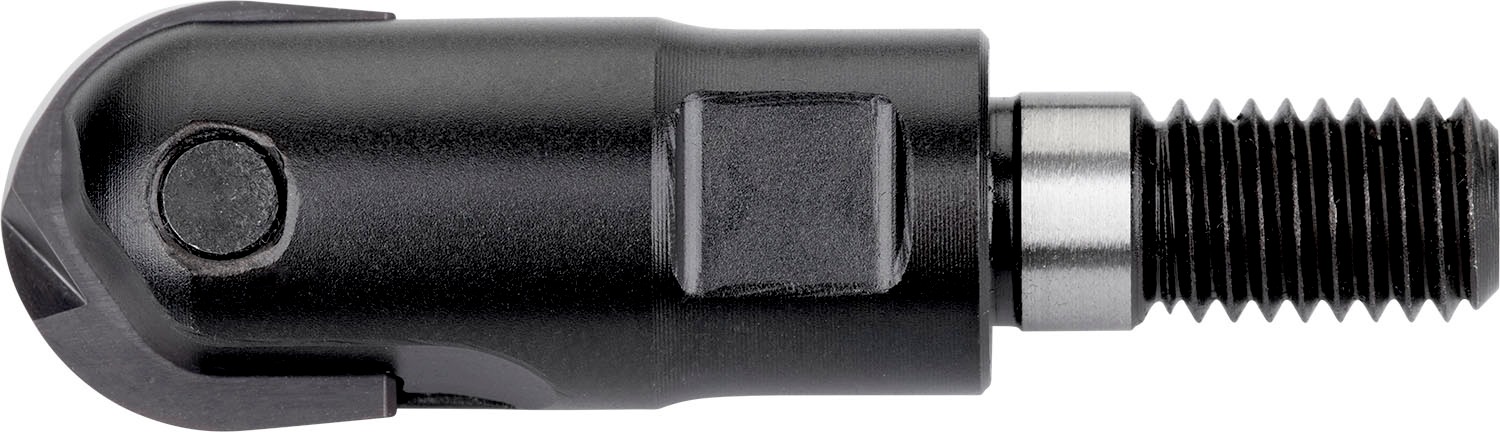

Copy end mill which utilises 1 of RC 20 or RC 20-F single-sided insert, cutting diameter 20mm with M10 threaded shank for standard modular tool-holders, 35mm protrusion length for copy milling with a maximum depth of cut of 0.6-3.2mm

Additional information

Weight 0.308 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602929396
Product number (SAP): 84002650
Ordering code ANSI: 20K2R35M10-SRC20-A
Gross weight – grams: 185.4

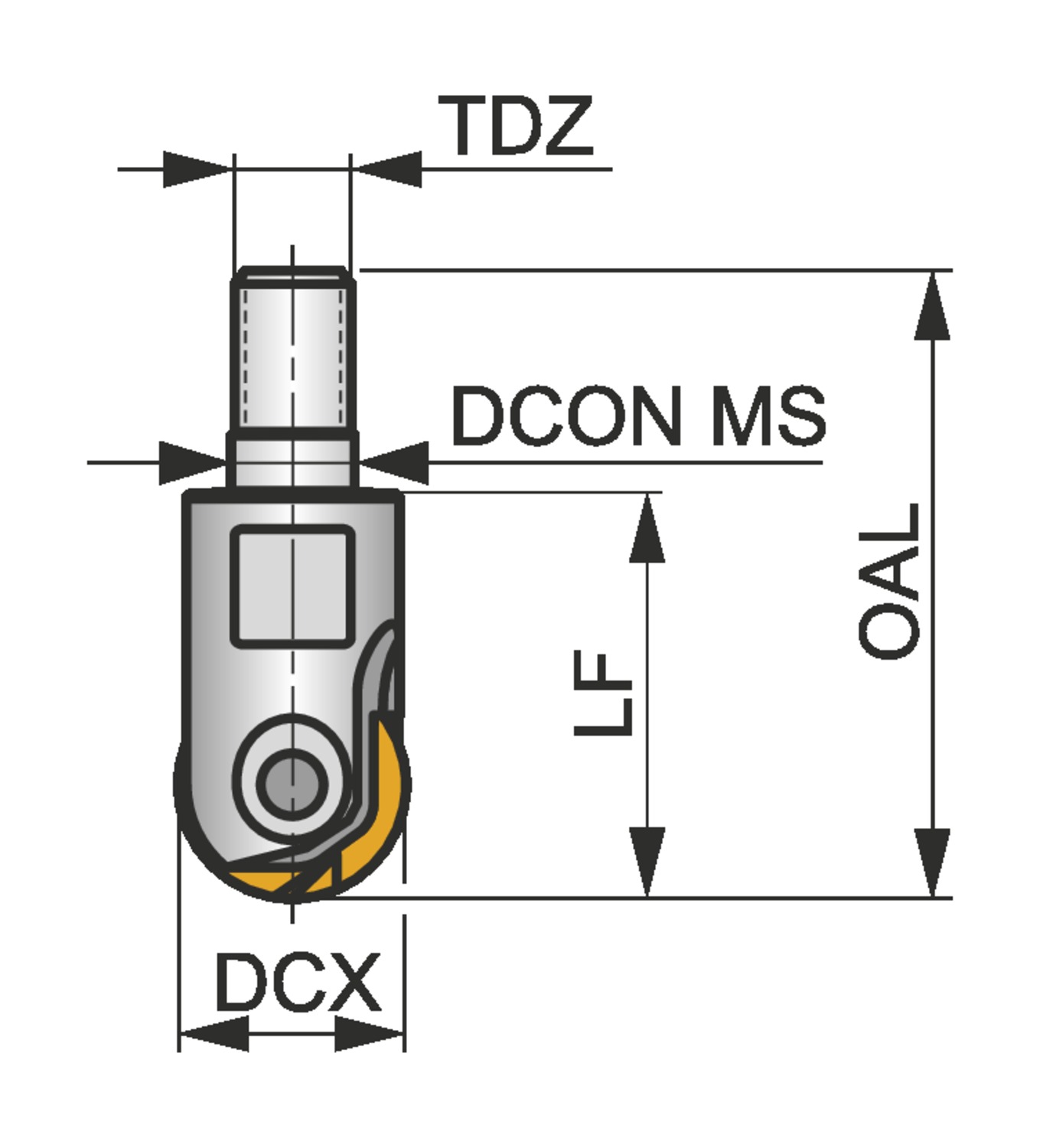

Cutting diameter maximum – millimeter (DCX): 20 mm
Overall length – millimeter (OAL): 54 mm
Connection diameter – millimeter (DCON MS): 10.5 mm
Functional length – millimeter (LF): 35 mm
Thread diameter size (TDZ): M10
Peripheral effective cutting edge count (ZEFP): 2
Net weight – grams: 77
Insert index count (NOI): 1
ISO: 20K2R35M10-SRC20-A

Brand

PRAMET
