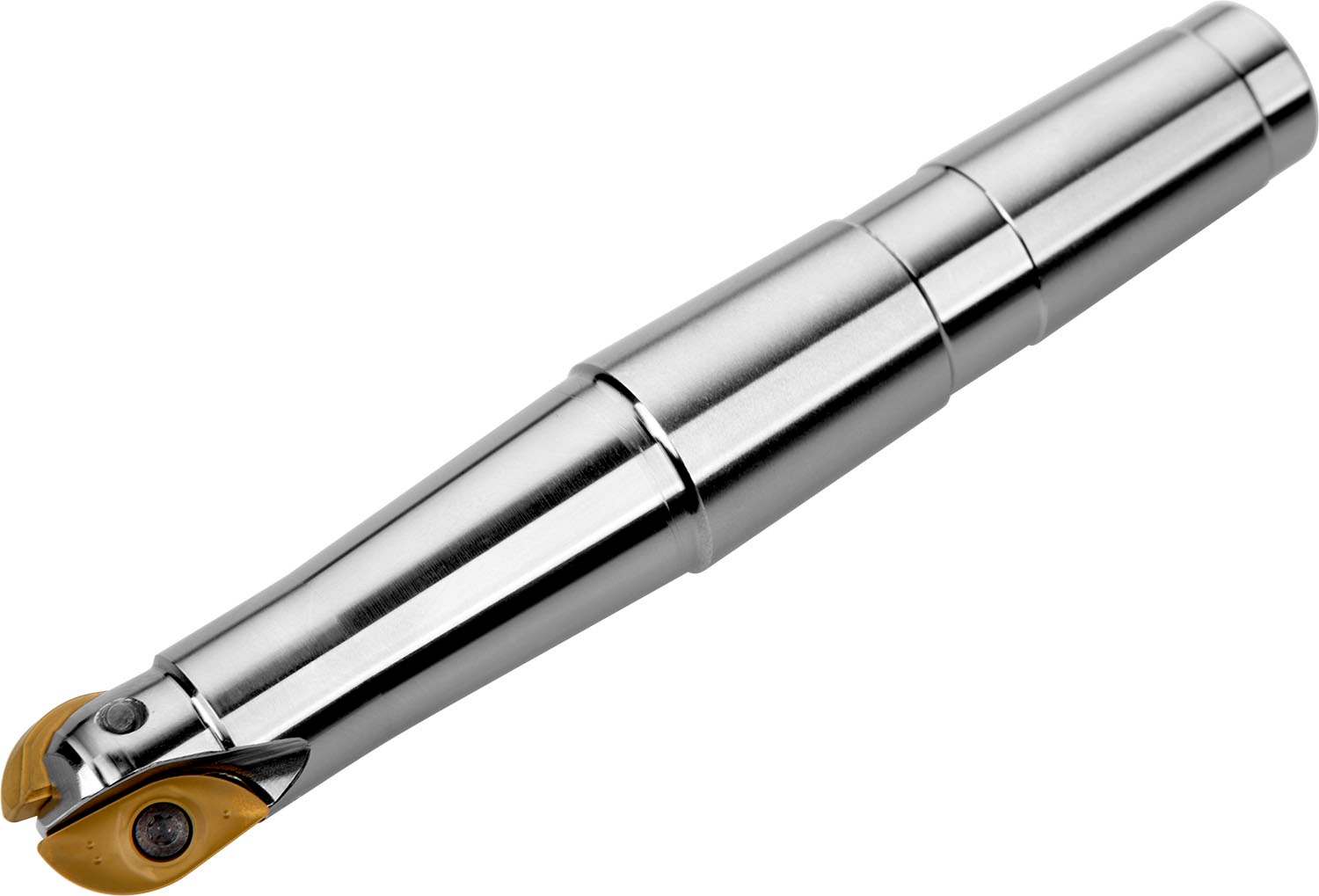

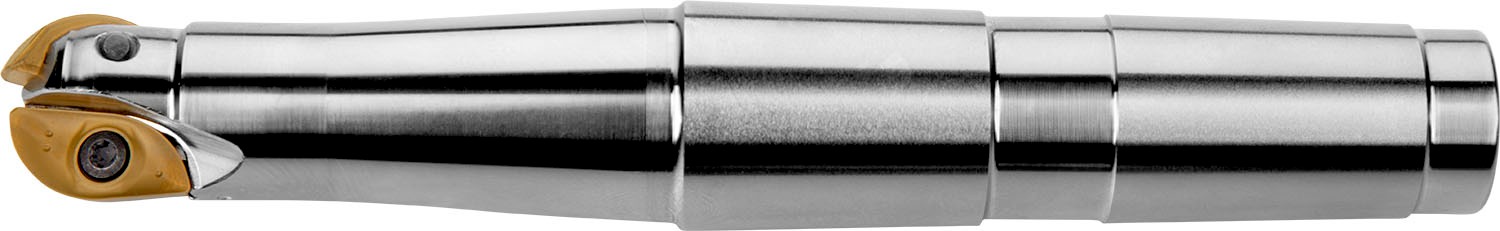

PRAMET 20L2R070E03-SZP20 Milling cutters for D&M

Description: Value
EAN number: 3603602970008
Product number (SAP): 86007502
Ordering code ANSI: 20L2R070E03-SZP20
Gross weight – grams: 371.3

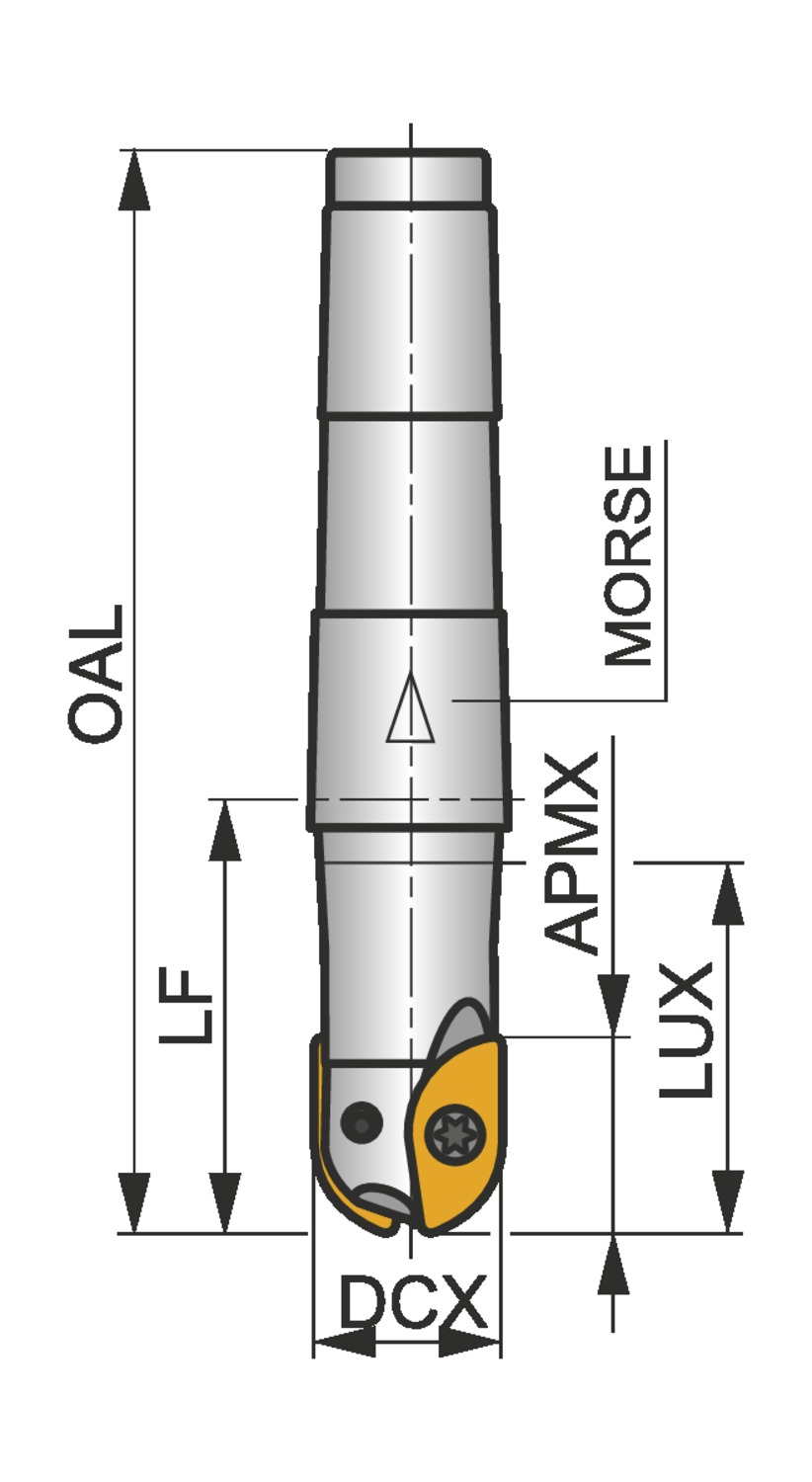

Cutting diameter maximum – millimeter (DCX): 20 mm
Overall length – millimeter (OAL): 151 mm
Functional length – millimeter (LF): 70 mm
Connection size code machine side (CZC MS): 3
Depth of cut maximum – millimeter (APMX): 17.9 mm

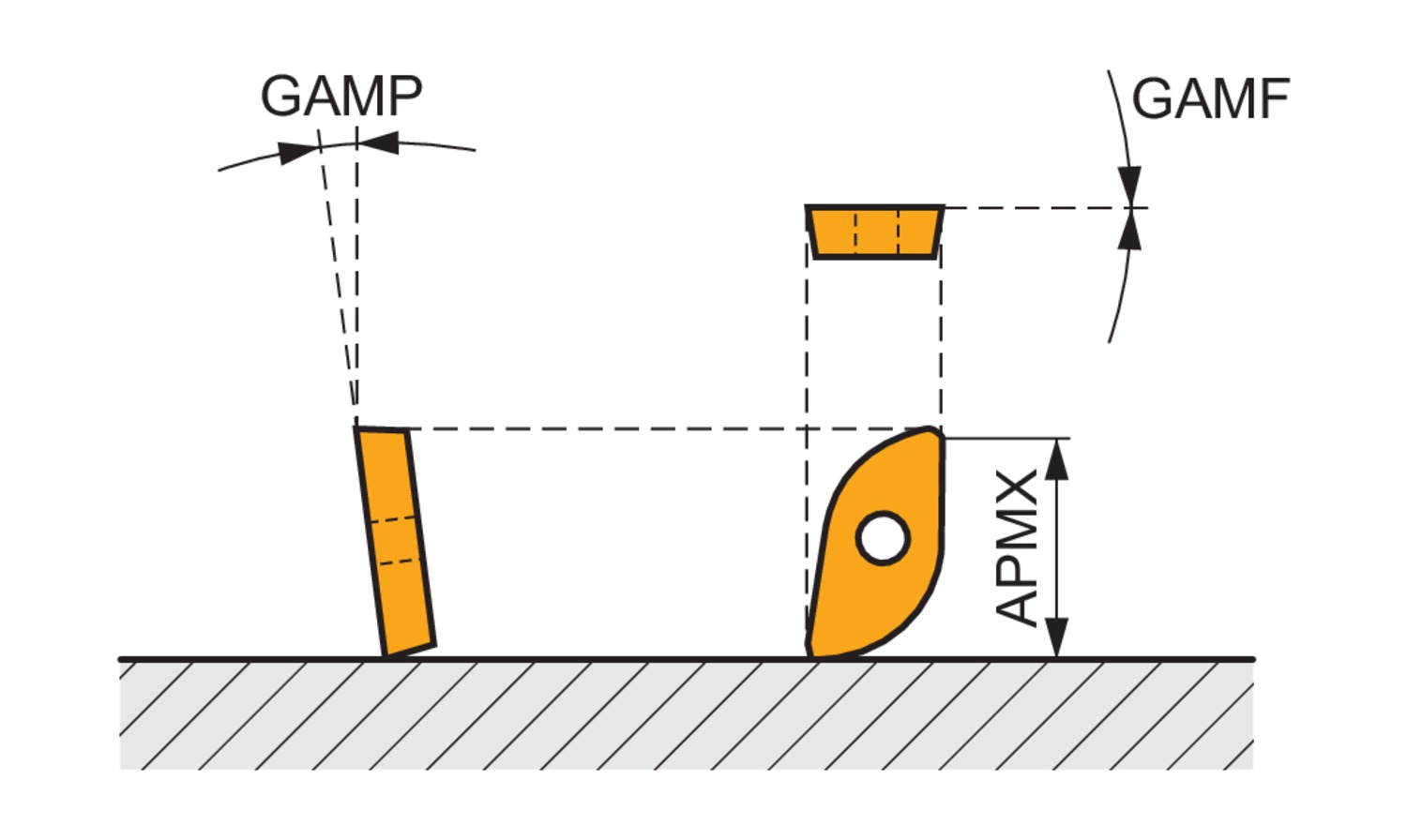

Radial rake angle (GAMF): 0
Axial rake angle (GAMP): -10
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 24000
Net weight – grams: 371.3
Insert index count (NOI): 2
ISO: 20L2R070E03-SZP20
