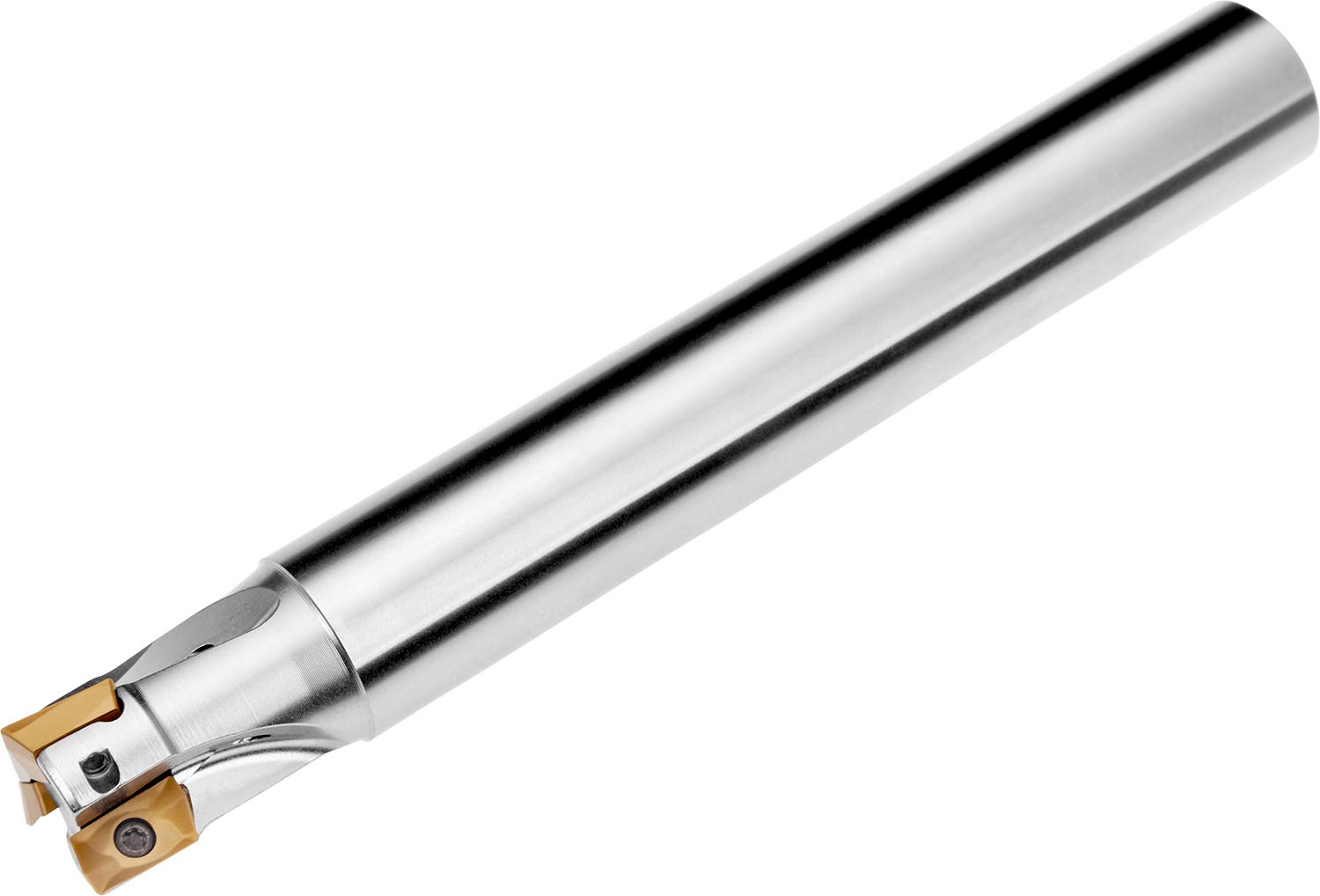

PRAMET 22A3R029A20-SAD11E-C Milling cutters with clamping by screw

Product Code: 22A3R029A20-SAD11E-C

$500.79$455.26 Ex. GST

Product Code: 22A3R029A20-SAD11E-C SKU 22A3R029A20-SAD11E-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 3 of ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 22mm with 90° approach angle and 20mm parallel shank according to DIN 1835A, 29mm functional and 200mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0mm

Additional information

Weight 0.4862 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603603078017
Product number (SAP): 86025919
Ordering code ANSI: 22A3R029A20-SAD11E-C
Product Line: FORCE AD
Gross weight – grams: 475
Cutting diameter – millimeter (DC): 22 mm
Overall length – millimeter (OAL): 200 mm
Connection diameter – millimeter (DCON MS): 20 mm
Usable Length – millimeter (LU): 29 mm
Connection size code machine side (CZC MS): –
Radial rake angle (GAMF): -11.5
Axial rake angle (GAMP): 5
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 25600
Net weight – grams: 450
Cutter Design: SAD11E
Insert index count (NOI): 3
ISO: 22A3R029A20-SAD11E-C

Brand

PRAMET
