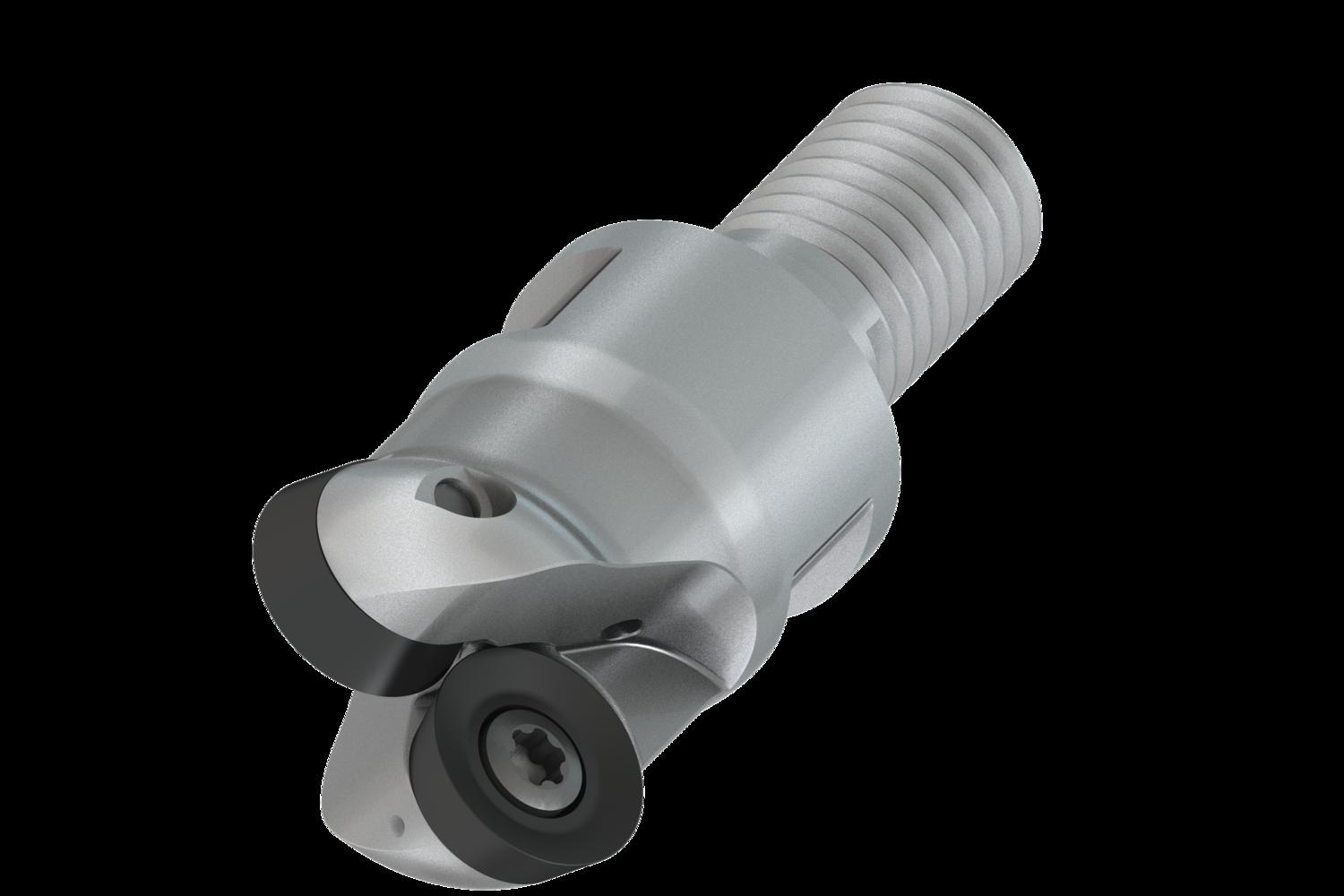

PRAMET 24E2R032M12-SRD12-CF Milling cutters for D&M

Product Code: 24E2R032M12-SRD12-CF

$292.31$265.74 Ex. GST

Product Code: 24E2R032M12-SRD12-CF SKU 24E2R032M12-SRD12-CF Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Copy face mill with double negative geometry which utilises 2 of RD.. 12T3MOT or RDHT 12T3MO-FA single-sided inserts, cutting diameter to maximum 24mm with M12 threaded shank for standard modular tool-holders, 32mm functional and 54mm protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 3mm

Additional information

Weight 0.2838 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603603827967
Product number (SAP): 86037350
Ordering code ANSI: 24E2R032M12-SRD12-CF
Gross weight – grams: 95.8
Cutting diameter maximum – millimeter (DCX): 24 mm
Cutting diameter – millimeter (DC): 12 mm
Overall length – millimeter (OAL): 54 mm
Connection diameter – millimeter (DCON MS): 12.5 mm
Hub diameter – millimeter (DHUB): 21 mm
Functional length – millimeter (LF): 32 mm
Thread diameter size (TDZ): M12
Radial rake angle (GAMF): -3
Axial rake angle (GAMP): 0
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 21900
Net weight – grams: 95.8
Cutter Design: SRD12
Insert index count (NOI): 2
ISO: 24E2R032M12-SRD12-CF

Brand

PRAMET
