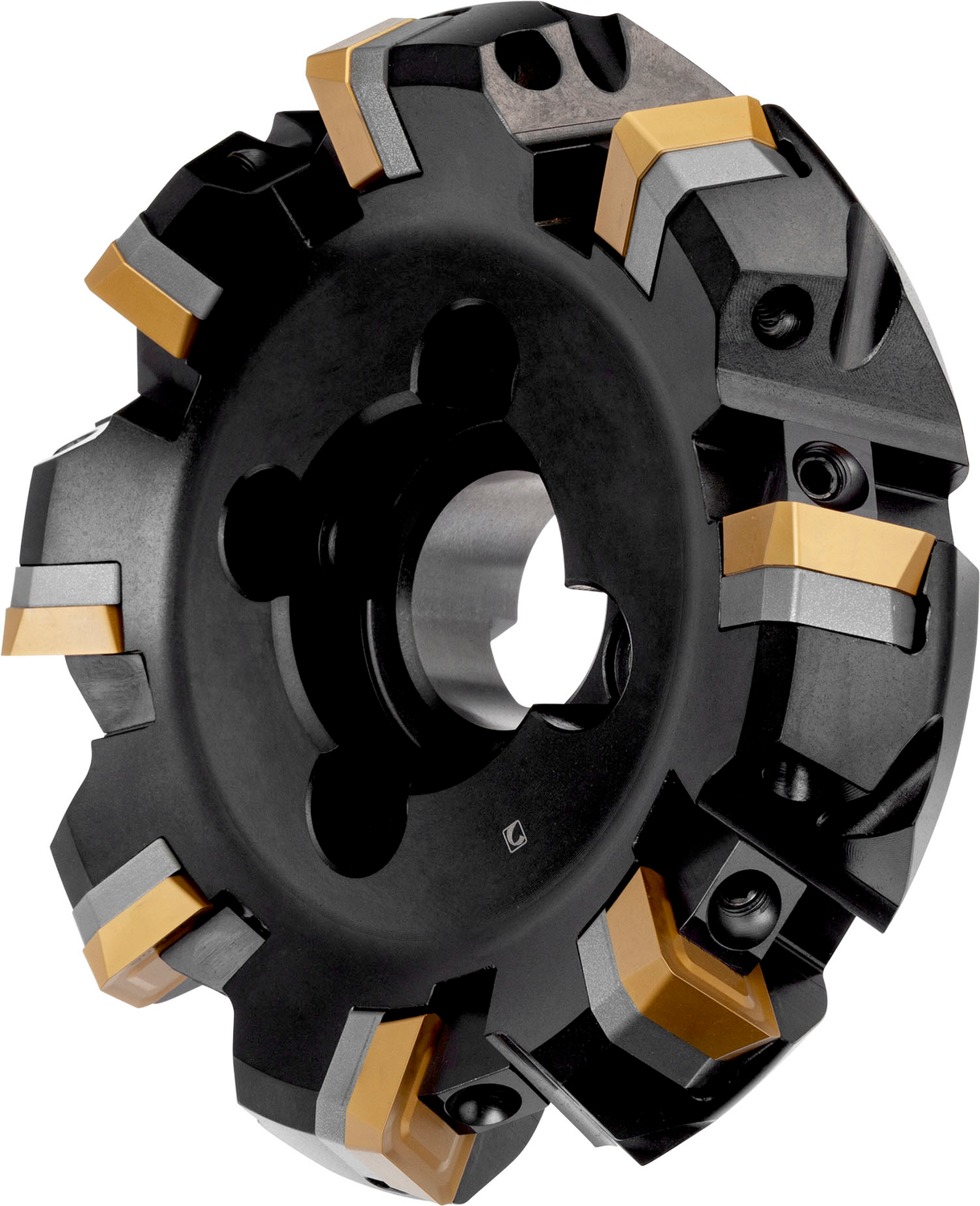

PRAMET 250C09R-F60SB22X Milling cutters with clamping by wedge

Description: Value
EAN number: 3603602950567
Product number (SAP): 86038542
Ordering code ANSI: 250C09R-F60SB22X
Product Line: ROUGH SB
Gross weight – grams: 17540
Cutting diameter – millimeter (DC): 250 mm
Cutting diameter maximum – millimeter (DCX): 267.4 mm
Functional length – millimeter (LF): 63 mm
Connection diameter – millimeter (DCON MS): 60 mm
Diameter bolt circle 1 – millimeter (DBC1): 101.6 mm
Keyway width – millimeter (KWW): 25.7 mm
Keyway depth – millimeter (KWD): 14 mm
Radial rake angle (GAMF): -9
Axial rake angle (GAMP): 9
Peripheral effective cutting edge count (ZEFP): 9
Cutting pitch differential (CPDF): Yes
Net weight – grams: 17540
Cutter Design: FSB22X
Insert index count (NOI): 9
ISO: 250C09R-F60SB22X
