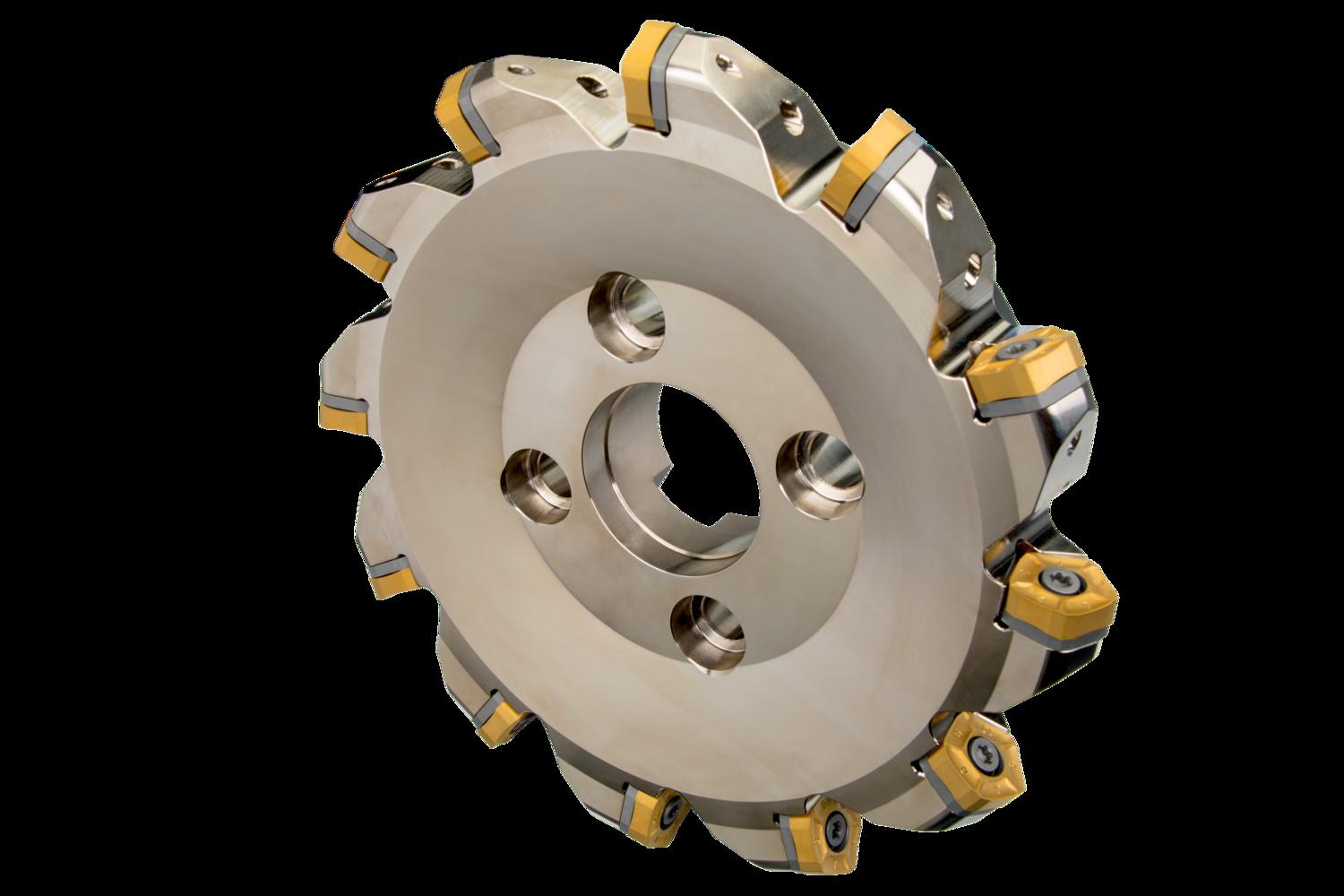

PRAMET 250C12R-S57PN13 Milling cutters with clamping by screw

Product Code: 250C12R-S57PN13

$3,676.59$3,342.35 Ex. GST

Product Code: 250C12R-S57PN13 SKU 250C12R-S57PN13 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Face mill with double negative geometry which utilises 12 of PNMU 1308DN.. or PNMQ 1308DN.. double-sided inserts, cutting diameter 250 to maximum 265.8mm with 57° approach angle and 60mm connection bore according to DIN 8030-C, 63mm protrusion length for face milling with a maximum depth of cut of 10.0mm

Additional information

Weight 3.5695 kg
barcode
Additional Information

Description: Value
EAN number: 3603602970220
Product number (SAP): 86007569
Ordering code ANSI: 250C12R-S57PN13
Product Line: PENTA HD
Gross weight – grams: 15390
Cutting diameter – millimeter (DC): 250 mm
Cutting diameter maximum – millimeter (DCX): 265.8 mm
Functional length – millimeter (LF): 63 mm
Connection diameter – millimeter (DCON MS): 60 mm
Diameter bolt circle 1 – millimeter (DBC1): 101.6 mm
Keyway width – millimeter (KWW): 25.7 mm
Keyway depth – millimeter (KWD): 14 mm
Radial rake angle (GAMF): -5
Axial rake angle (GAMP): -4
Peripheral effective cutting edge count (ZEFP): 12
Rotational speed maximum (RPMX): 2200
Net weight – grams: 15390
Cutter Design: SPN13
Insert index count (NOI): 12
ISO: 250C12R-S57PN13

Brand

PRAMET
