PRAMET 250C14R-S45ON06-C Milling cutters with clamping by screw

Product Code: 250C14R-S45ON06-C

$3,699.25$3,362.95 Ex. GST

Product Code: 250C14R-S45ON06-C SKU 250C14R-S45ON06-C Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

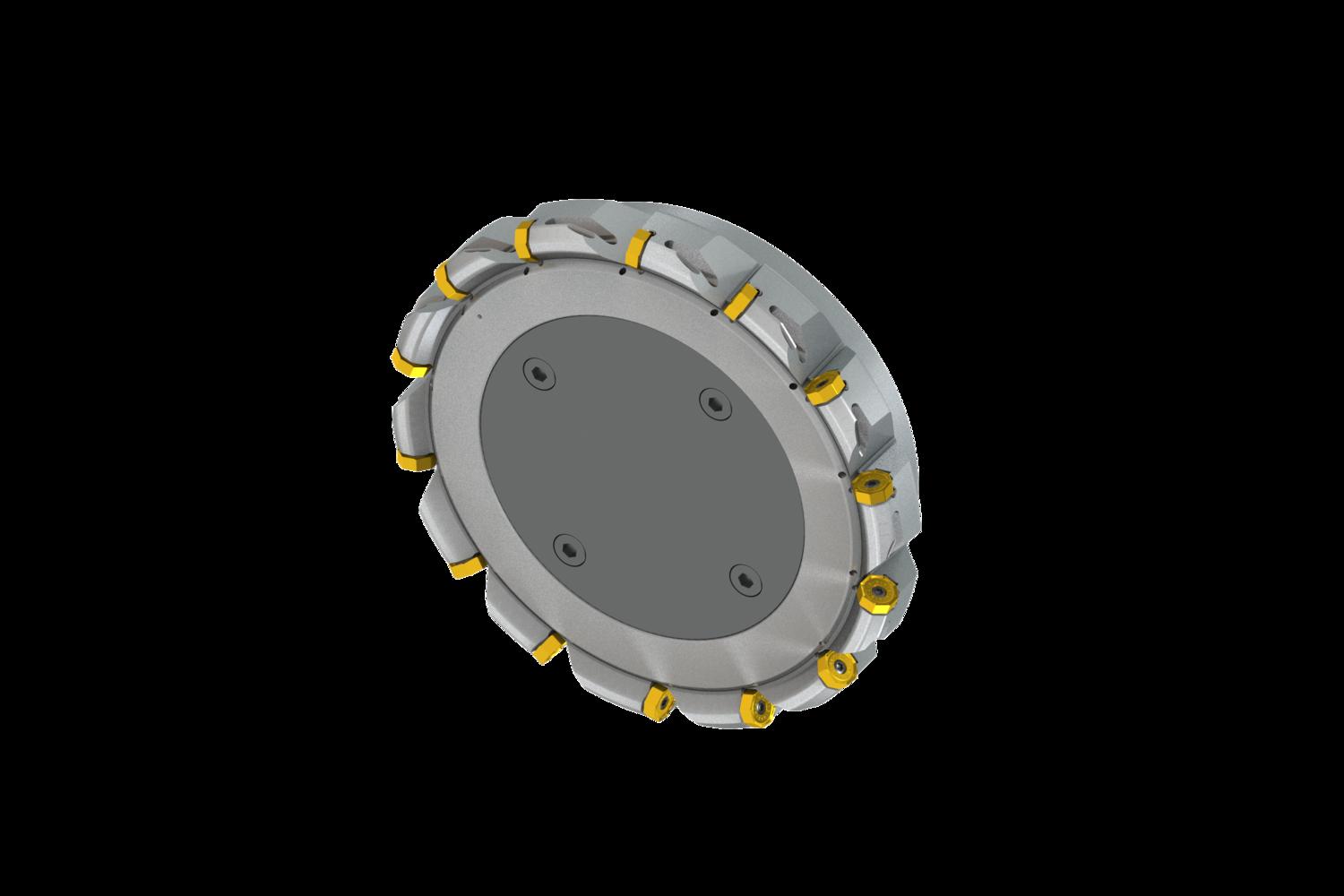

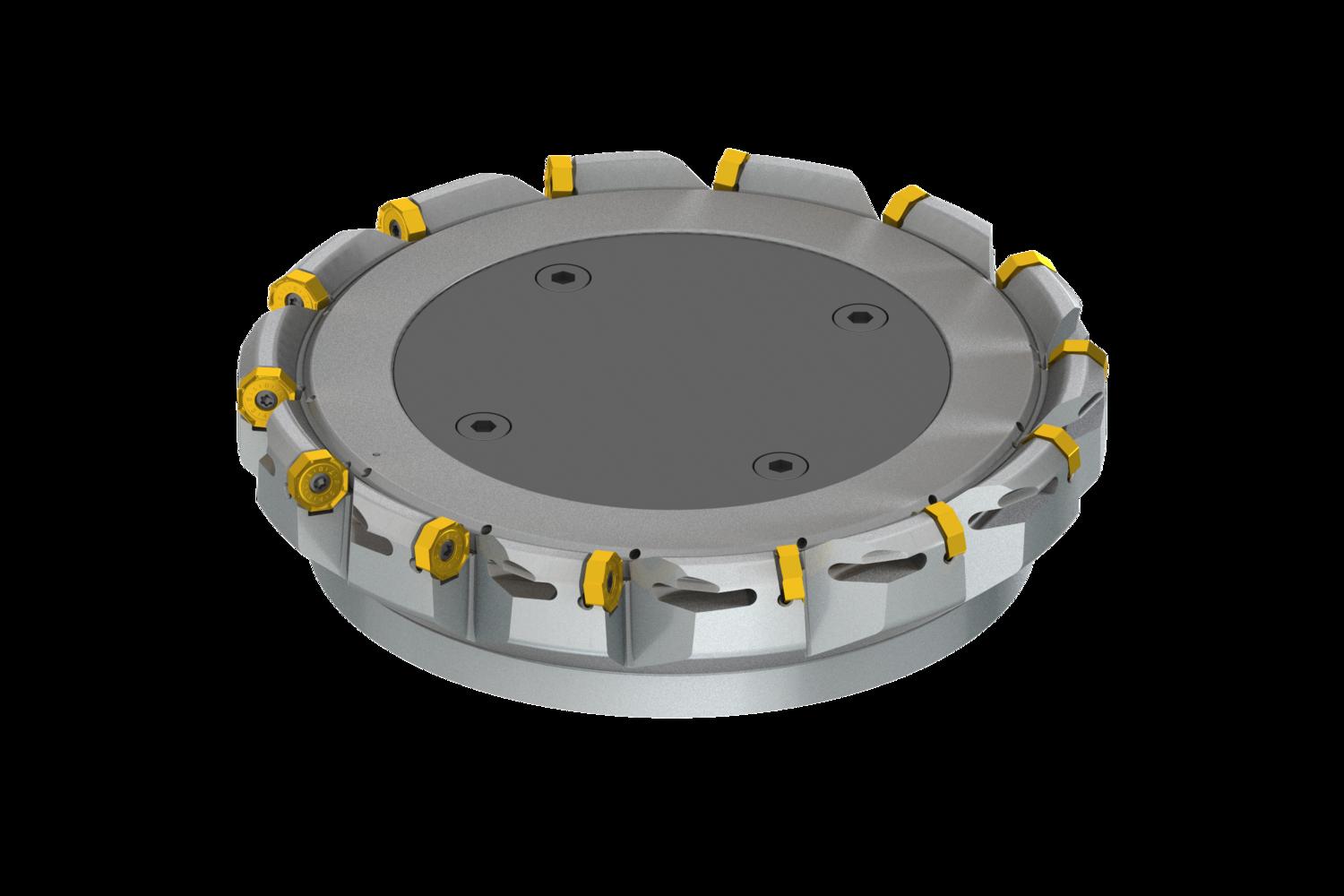

Face mill with double negative geometry which utilises 14 of ONMX 0605.., ONMX 0605..-W or SNMX 1705.. double-sided inserts, cutting diameter 250mm to maximum 260.8mm with 43° approach angle and 60mm connection bore according to DIN 8030-C, 63mm functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of ON.. 4mm, SN.. 7mm

Additional information

Weight 15.7100 kg
barcode

3603604105446

Additional Information

Description: Value
EAN number: 3603604105446
Product number (SAP): 86042983
Ordering code ANSI: 250C14R-S45ON06-C
Gross weight – grams: 19271

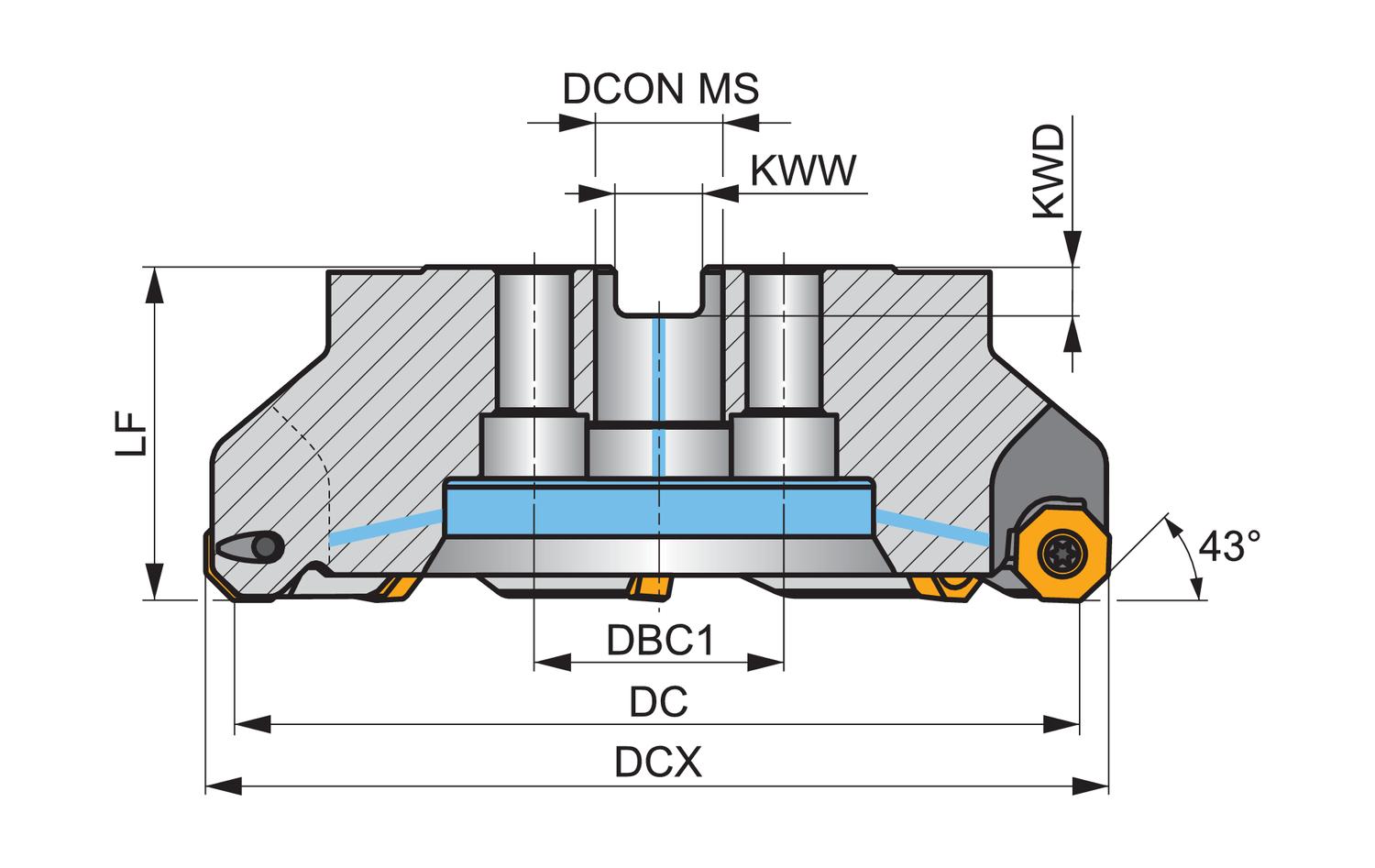

Cutting diameter – millimeter (DC): 250 mm
Cutting diameter maximum – millimeter (DCX): 260.8 mm
Connection diameter – millimeter (DCON MS): 60 mm
Diameter bolt circle 1 – millimeter (DBC1): 101.6 mm
Functional length – millimeter (LF): 63 mm
Keyway width – millimeter (KWW): 25.8 mm
Keyway depth – millimeter (KWD): 14.25 mm

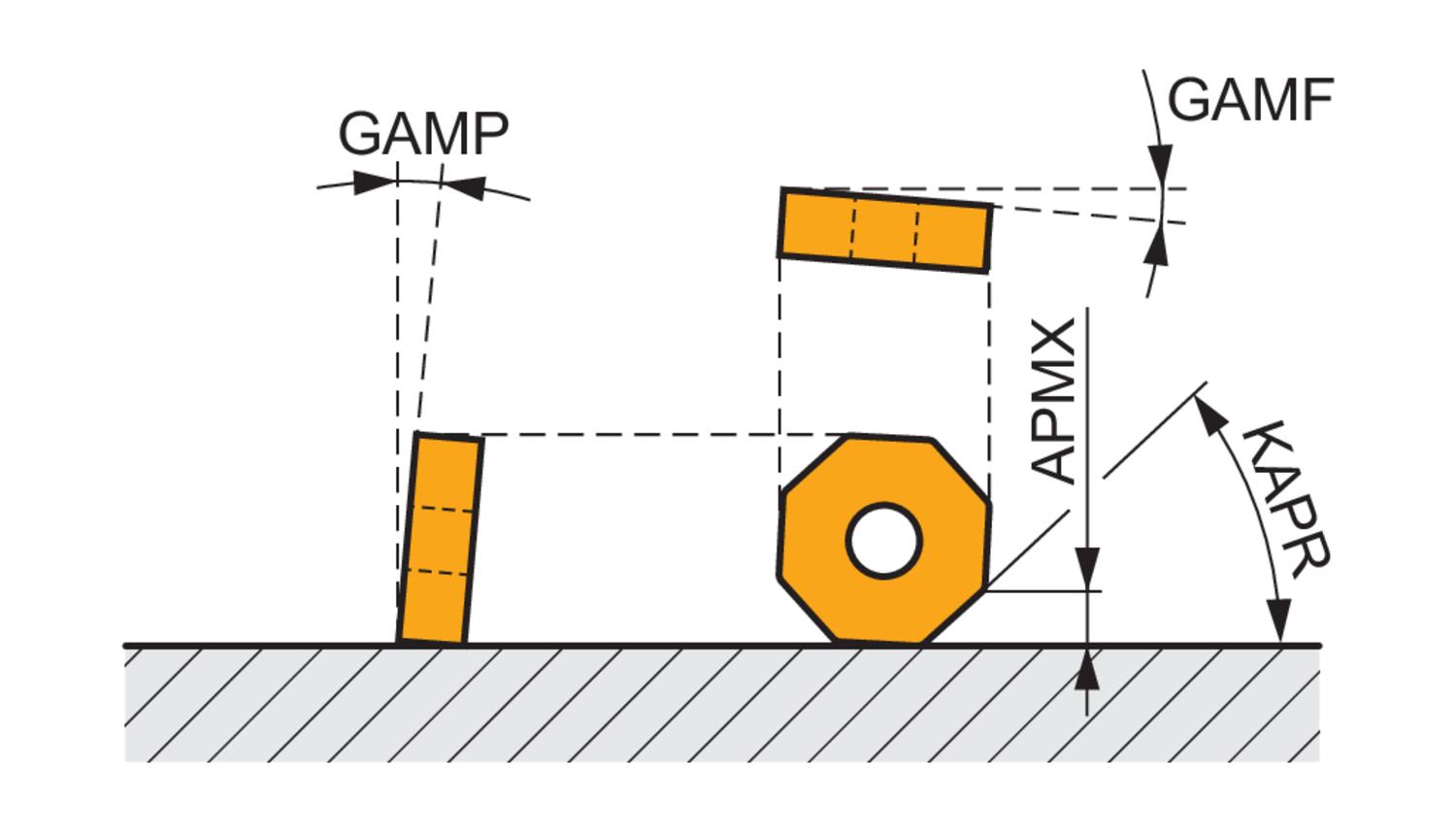

Radial rake angle (GAMF): -10
Axial rake angle (GAMP): -5
Peripheral effective cutting edge count (ZEFP): 14
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 4300
Net weight – grams: 15710
Cutter Design: SON06C
ISO: 250C14R-S45ON06-C
