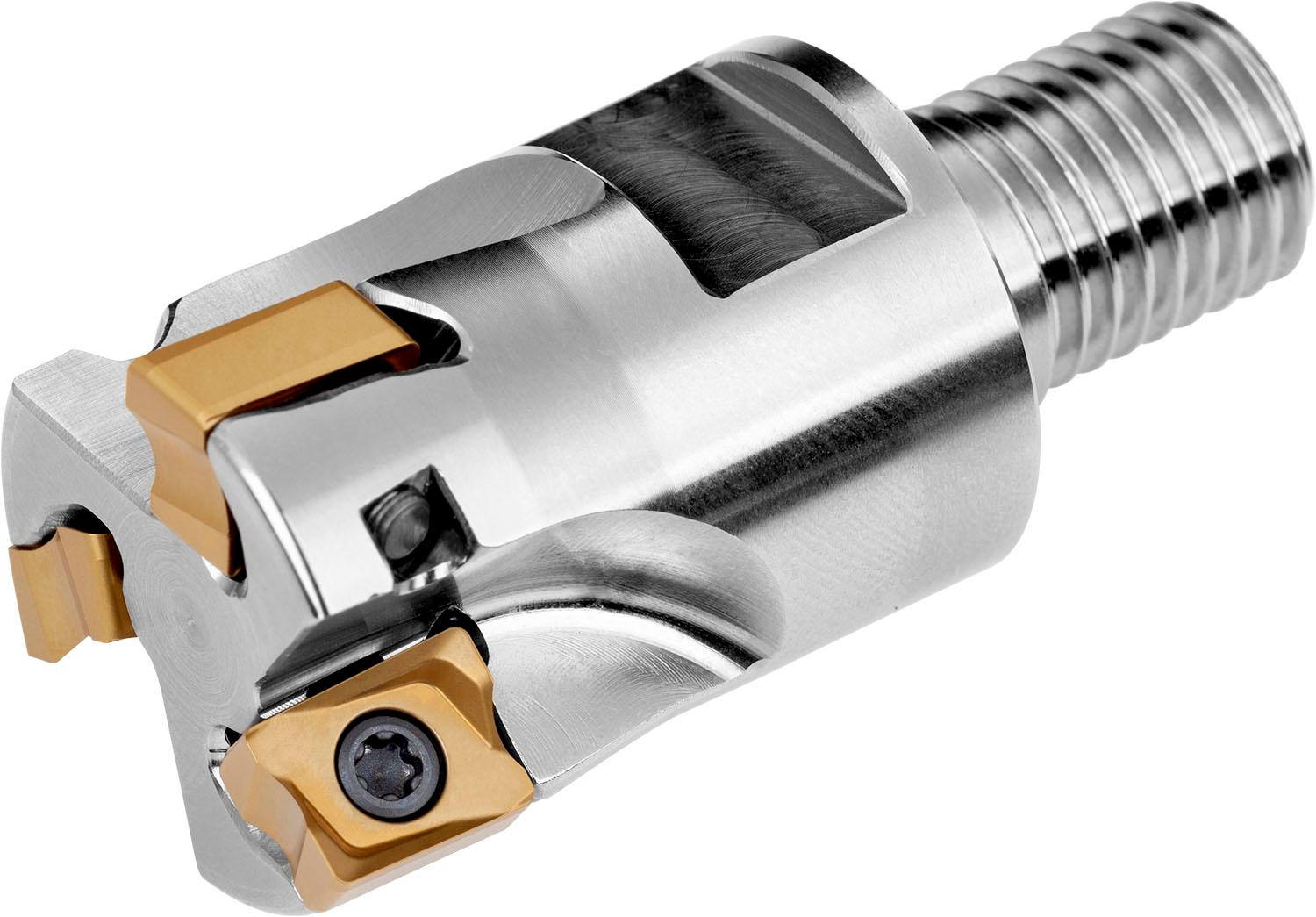

PRAMET 25A2R033M12-SLN12-C Milling cutters with clamping by screw

Product Code: 25A2R033M12-SLN12-C

$510.98$464.53 Ex. GST

Product Code: 25A2R033M12-SLN12-C SKU 25A2R033M12-SLN12-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with double negative geometry which utilises 2 of LNGX 1205.. or LNGU 1205.. double-sided inserts, cutting diameter 25mm with 90° approach angle and M12 threaded shank for standard modular tool-holders, 33mm protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 9.0mm

Additional information

Weight 0.4961 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602992529
Product number (SAP): 86007934
Ordering code ANSI: 25A2R033M12-SLN12-C
Product Line: ECON LN
Gross weight – grams: 110.1
Cutting diameter – millimeter (DC): 25 mm
Overall length – millimeter (OAL): 55 mm
Connection diameter – millimeter (DCON MS): 12.5 mm
Functional length – millimeter (LF): 33 mm
Thread diameter size (TDZ): –
Radial rake angle (GAMF): -22
Axial rake angle (GAMP): -6
Peripheral effective cutting edge count (ZEFP): 2
Net weight – grams: 110.1
Cutter Design: SLN12
Insert index count (NOI): 2
ISO: 25A2R033M12-SLN12-C

Brand

PRAMET
